OPERATIONS MANUAL
Bedienungsanleltung
Manual de funcionamiento
Manual de fonctionnement
Manual del utente

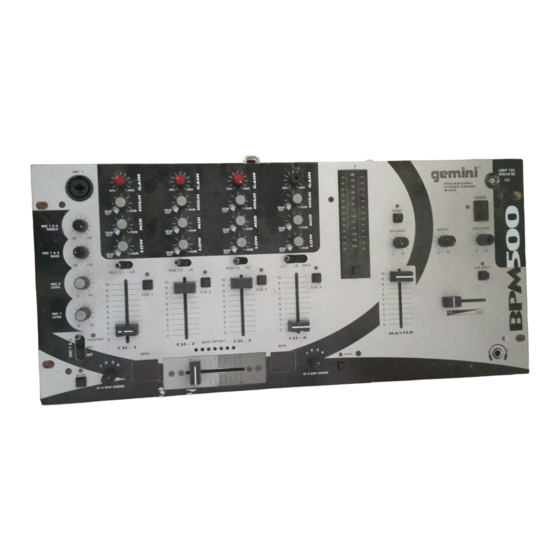

BPM-500
PROFESSIONAL STEREO PREAMP MIXER
Professionneller Stereo Vorverstärkermischpult
Mezclador-preamplificador estereofónico para el profesional
Mélangeur-préamplificateur stéréophonique pour le professionnel
Miscelatore-preamplificatore stereofonico per il professionale

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPM-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gemini BPM-500

Summary of Contents for Gemini BPM-500

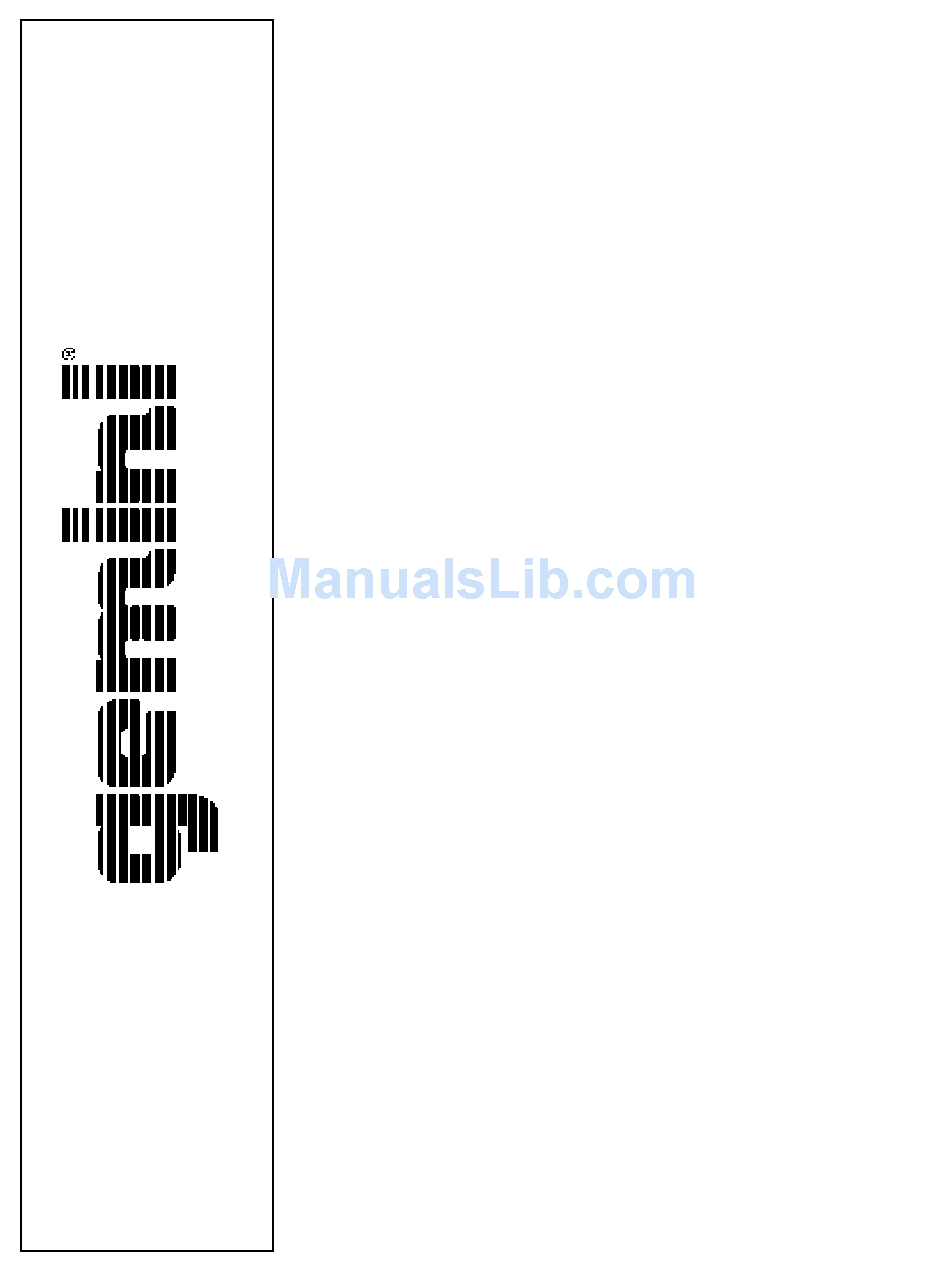

  • Page 1 OPERATIONS MANUAL Bedienungsanleltung Manual de funcionamiento Manual de fonctionnement Manual del utente BPM-500 PROFESSIONAL STEREO PREAMP MIXER Professionneller Stereo Vorverstärkermischpult Mezclador-preamplificador estereofónico para el profesional Mélangeur-préamplificateur stéréophonique pour le professionnel Miscelatore-preamplificatore stereofonico per il professionale...
  • Page 2 Page 1...
  • Page 4 2. Make sure that the POWER (39) switch is in the off position. The POWER LED (38) will be off. 3. The BPM-500 is supplied with 4 sets of amp output jacks. The BALANCED OUTPUT (45) jacks are used to connect to your main amplifier using standard XLR cables.
  • Page 5 Low, Mid and/or High to create special effects. 6. CROSSFADER SECTION: The CROSSFADER (26) allows the mixing of one source into another. The BPM-500 features an assignable crossfader. The ASSIGN (23, 28) switches allow you to select which channel will play through each side of the crossfader. The ASSIGN (23) switch has 4 settings (1, 2, 3 or 4) and allows you to select channel 1, 2, 3 or 4 to play through the left side of the crossfader.
  • Page 6 Specifications INPUTS: DJ Mic...1.5mV 2Kohm balanced Phono...3mV 47Kohm Line...150 mV 27Kohm OUTPUTS: Amp/Booth...0 dB 1V 400ohm Max...20V Peak to Peak Rec...225mV 5Kohm MIC 1 & MIC 2: DJ Mic...1.5mV 2Kohm balanced Bass...± 12dB High...± 12dB MIC 3: DJ Mic...1.5mV 2Kohm balanced Controls...Channel 4 GENERAL: Bass (Chnls 1-4)...+ 12dB/- 32 dB...
  • Page 7 Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. Gemini Sound Products Corp. shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
