Summary of Contents for Tricity Bendix SI 321

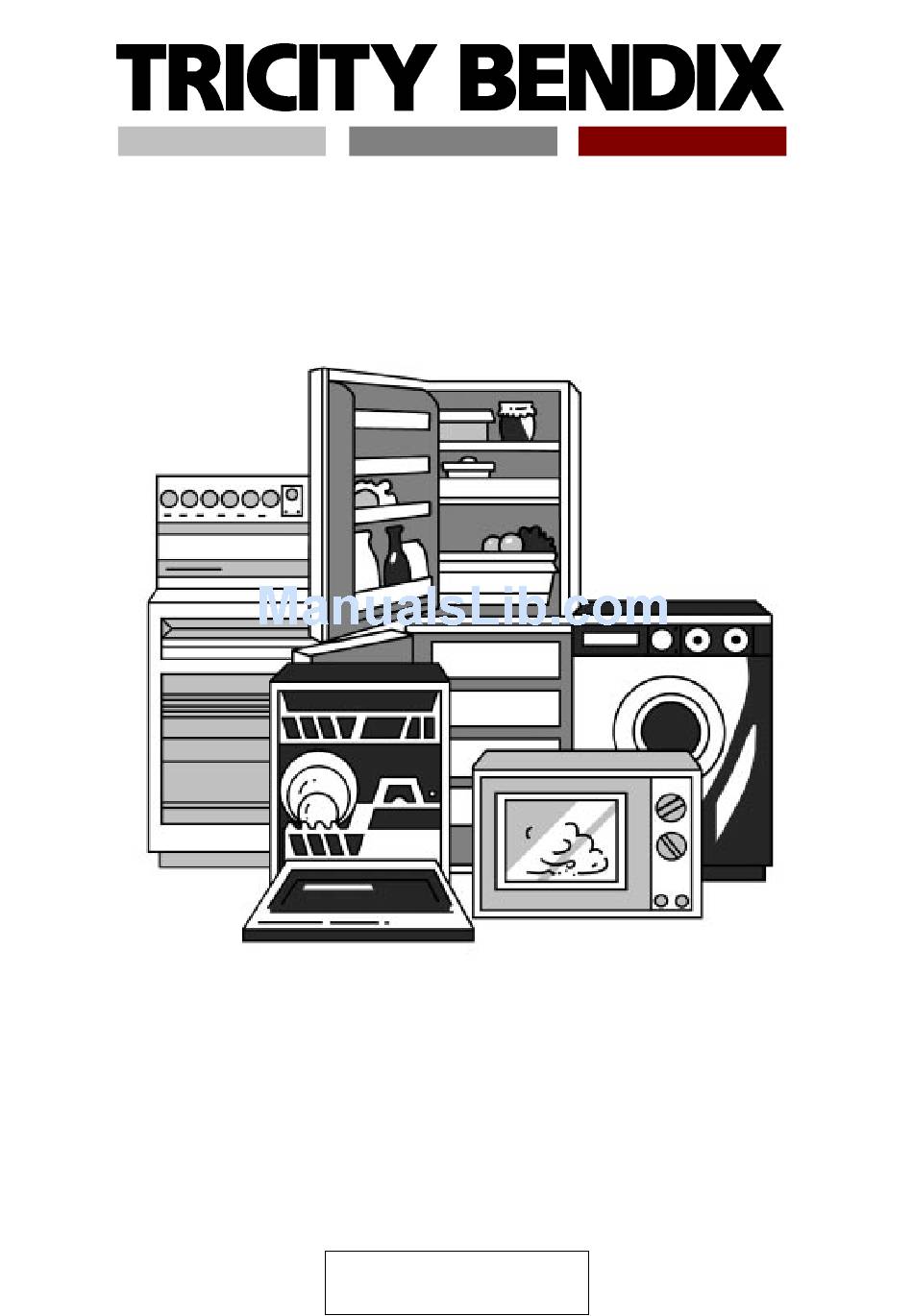

- Page 1 Better Products. Better Value. OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. SI 321/ 2...
-
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. SI 321/ 2 Voltage: 230/240 Volts AC 50Hz Wattage: 10.3/11.2 kW Height: 900 mm Width: 495 mm Depth: 590 mm This appliance carries the C.E. mark. This appliance complies with European Council Directive 72/23/EEC. -
Page 3: Table Of Contents
CONTENTS Technical Details ................. 2 Contents . - Page 4 CONTENTS Care and Cleaning ................23 Cleaning Materials .
-
Page 5: Preface
They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker. -
Page 6: Safety
SAFETY THESE WARNINGS ARE PROVIDED IN DURING OPERATION THE INTERESTS OF YOUR SAFETY. ENSURE THAT UNDERSTAND Do not use this appliance if it is in THEM ALL BEFORE INSTALLING OR contact with water. Never operate it USING THE COOKER. with wet hands. PLEASE This appliance is designed to be READ... -
Page 7: After Use
Always use oven gloves to remove Cookers and hobs become very hot, and replace food in the oven. and retain their heat for a long period Similarly always use oven gloves to of time after use. Children should be remove and replace the grill pan kept well away from the appliance handle when grilling. -
Page 8: Introduction
INTRODUCTION WARNING: THIS APPLIANCE MUST BE EARTHED The cable should be routed away from potentially hot RATING PLATE areas marked by X in the diagram below. Record the model and serial numbers on the back cover of this instruction book, from the rating plate. This is situated on the lower front frame of the appliance and can be seen upon opening the oven door. -
Page 9: Reversible Oven Door
Overhanging surfaces or a cooker hood should be a GRILL AND OVEN FURNITURE minimum of 685mm above the hob. The following items of oven furniture have been supplied with the cooker: 1 grill pan 1 grill pan handle It is important to ensure that the appliance is level after installation. -
Page 10: Getting To Know Your Cooker
GETTING TO KNOW YOUR COOKER THE CONTROL PANEL FEATURES Timer Oven Temperature Control Oven Indicator Neon Dual Grill Control Grill Indicator Neon Hotplate Controls... -
Page 11: The Timer
THE TIMER START TIME SETTING KNOB SECOND HAND CLOCK SYMBOL CLOCK/MINUTE MINDER/LENGTH OF COOKING TIME SETTING KNOB START TIME INDICATOR HOUR HAND DISPLAY WINDOW MANUAL SYMBOL MINUTE HAND 1. TO SET THE TIME OF DAY The clock will operate when the cooker is switched ON at the wall. - Page 12 4. TO CANCEL MINUTE MINDER/BUZZER Turn setting knob (D) clockwise, without pulling it out until "O" or the manual symbol appears in the window as Fig.4. 5. HOW TO SET THE OVEN TIMER When using the oven timer for the very first time, it is advisable to let it operate while you are at Fig.
- Page 13 B) TO START COOKING NOW, THEN SWITCH OFF AUTOMATICALLY Follow the first 3 points under section 5. (A) above, and then; iv) To set the length of time you want the food to cook; turn setting knob clockwise, without pulling it out, until the required cooking period can be seen in the window, e.g.
-
Page 14: The Radiant Hob
THE RADIANT HOB To operate the hotplates turn the control knobs in Avoid placing fish kettles or large preserving pans across the two hotplates as this may either direction to vary the heat setting. The highest number represents the hottest setting cause damage. -
Page 15: Deep Fat Frying
DEEP FAT FRYING 6. Frying temperatures Celsius Fahrenheit Scale ( C) Scale ( SPECIAL FRYING NOTE: For safety purposes when deep fat frying, fill the pan one-third full of oil, DO NOT cover the pan with a lid First frying of potatoes and DO NOT leave the pan unattended. -
Page 16: The Dual Grill
THE DUAL GRILL USES OF THE GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 17: Hints And Tips
When toasting bread use the cranked shelf in To correctly locate the grill pan on the shelf, ensure position 2 with the grid in the high position. that the cut out on the underside of the handle bracket locates over the front bar of the shelf. Preheat the grill on a full setting for a few minutes before cooking. -
Page 18: The Fan Oven
THE FAN OVEN USES OF THE FAN OVEN PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating, however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. -
Page 19: Hints And Tips
The use of excessively high temperatures can HINTS AND TIPS cause uneven browning. It may be necessary to Arrange the shelves in the required positions reduce temperatures slightly. Refer to the before switching the oven ON. Shelves are recommendations given in the oven cooking numbered from the bottom upwards. -
Page 20: Oven Cooking Chart
OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10° C to suit individual preferences and requirements. FAN OVEN FOOD SHELF COOKING APPROX POSITION TEMP °C COOK TIME (m) Biscuits 180-190... -
Page 21: Roasting Chart
ROASTING CHART ROASTING CHART INTERNAL TEMPERATURES - Rare : 50-60°C; Medium : 60-70°C; Well :70-80°C MEAT FAN OVEN COOKING TIME Beef 160-180°C 20-35 min per ½kg/1lb and 20-35 min over Beef, 160-180°C 20-35 min per ½kg/1lb boned and 25-35 min over Mutton 160-180°C 25-35 min per ½kg/1lb... -
Page 22: Defrosting
DEFROSTING USES OF DEFROST FEATURE Small or thin fish fillets, frozen peeled prawns, cubed or minced meat, liver, thin chops, steaks etc., can be thawed in 1 - 2 hours. This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. -
Page 23: Care And Cleaning
CARE AND CLEANING ALWAYS SWITCH OFF THE DO NOT ATTEMPT TO REMOVE ANY OF ELECTRICITY SUPPLY AND ALLOW THE COOKER TO THE CONTROL KNOBS FROM THE PANEL COOL BEFORE CLEANING. AS THIS MAY CAUSE DAMAGE AND IS A SAFETY HAZARD CLEANING MATERIALS Before using any cleaning materials on your cooker, check that they are suitable and that their use is... -
Page 24: Care Of Stayclean Surfaces
CARE OF STAYCLEAN SURFACES Stayclean surfaces destroy splashes of food and fats when the oven temperature is raised to around 220°C. It is a good idea to run the oven for an hour or two per week to ensure continued good performance from the Stayclean finish. -
Page 25: Something Not Working
SOMETHING NOT WORKING? If the oven fan is noisy: We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one, which you can solve yourself without the * Check that the cooker is level. -
Page 26: Service And Spare Parts
It is a recommendation by the manufacturer that annual servicing of the product is done by the manufacturers approved service organisation. In the event of your appliance requiring service Tricity Bendix Limited have an arrangement with Electrolux Group Service. Before calling out an Engineer, please ensure you have read the details under the heading "Something Not Working?"... -
Page 27: Customer Service Centres
CUSTOMER SERVICE CENTRES The Regional Electricity Companies are responsible for the servicing of cookers sold by their own outlets. The telephone numbers can be found in the telephone directory. Service for cookers bought from other outlets can be obtained by calling the nearest Customer Service Centre on the numbers given below. - Page 28 Electrolux After Sales Service 20 Cunningham Road EH FK G KA KY1-16 ML GLASGOW 0141-647-4381 Clyde Estate PA1-23, PH1-7 Rutherglen Glasgow G73 1PP Guernsey Electricity PO Box 4 GUERNSEY All Codes 01481-46931 Vale Guernsey Channel Islands Electrolux After Sales Service C Butherway SA33-39 1 Church Road.
- Page 29 Electrolux After Sales Service NL Services LANCASTER LA1-23 01772-316175 Unit 333 Ranglet Road Walton Summit Bamber Bridge Preston, Lancashire PR5 8AR BD DN1-7, 10-12, HD HG HX Electrolux After Sales Service LEEDS LS S WF YO1-3, 5-8 DE 0113-2608511 64-66 Cross Gates Road NG1-22 &...
- Page 30 Electrolux After Sales Service Cornwall Domestic Service REDRUTH TR1-20, 26, 27 01209-314407 Unit 7D Pool Industrial Estate PL10-15, 17, 18, 22-35 Wilson Way Redruth Cornwall TR15 3QW ROTHSAY PA20 01700-504777 Electrolux After Sales Service D McGlashan Walker Walker Engineering Glenmhor Upper Serpentine Rothesay PA20 SHETLAND...
-
Page 31: Guarantee Conditions
All service work under this guarantee the Country of which the product is must be undertaken by a Tricity Bendix taken. Electrolux Aftersales Service in service representative or authorised the Country concerned, with whom agent. - Page 32 This handbook is accurate at the date of printing, but will be superseded and should be disregarded if specifications or appearance are changed. Better Products. Better Value. TRICITY BENDIX,99 OAKLEY ROAD, LUTON, BEDFORDSHIRE, LU4 9QQ A Division of Emaco Limited Registered in England No. 176547 Registered Office. 101 Oakley Road, Luton LU4 9RJ. MODEL NO.
