PULL-TO-OPEN LIMIT SETTING
Dual Gate Installations
Step 1
Make sure both gates are in the fully open
position.
Ensure power switch is in the ON position.
Step 2
Verify Block 2, DIP Switch #1 is in ON position.
Press the cycle button on the circuit board and the
gates will begin to close. Stop the gates using the
cycle button when the desired limit for the
primary gate has been reached.
Step 3
Verify Block 2, DIP Switch #6 is in the OFF
position. Press and hold the "SET LIMIT" button
until one audible beep is heard to acquire the closed

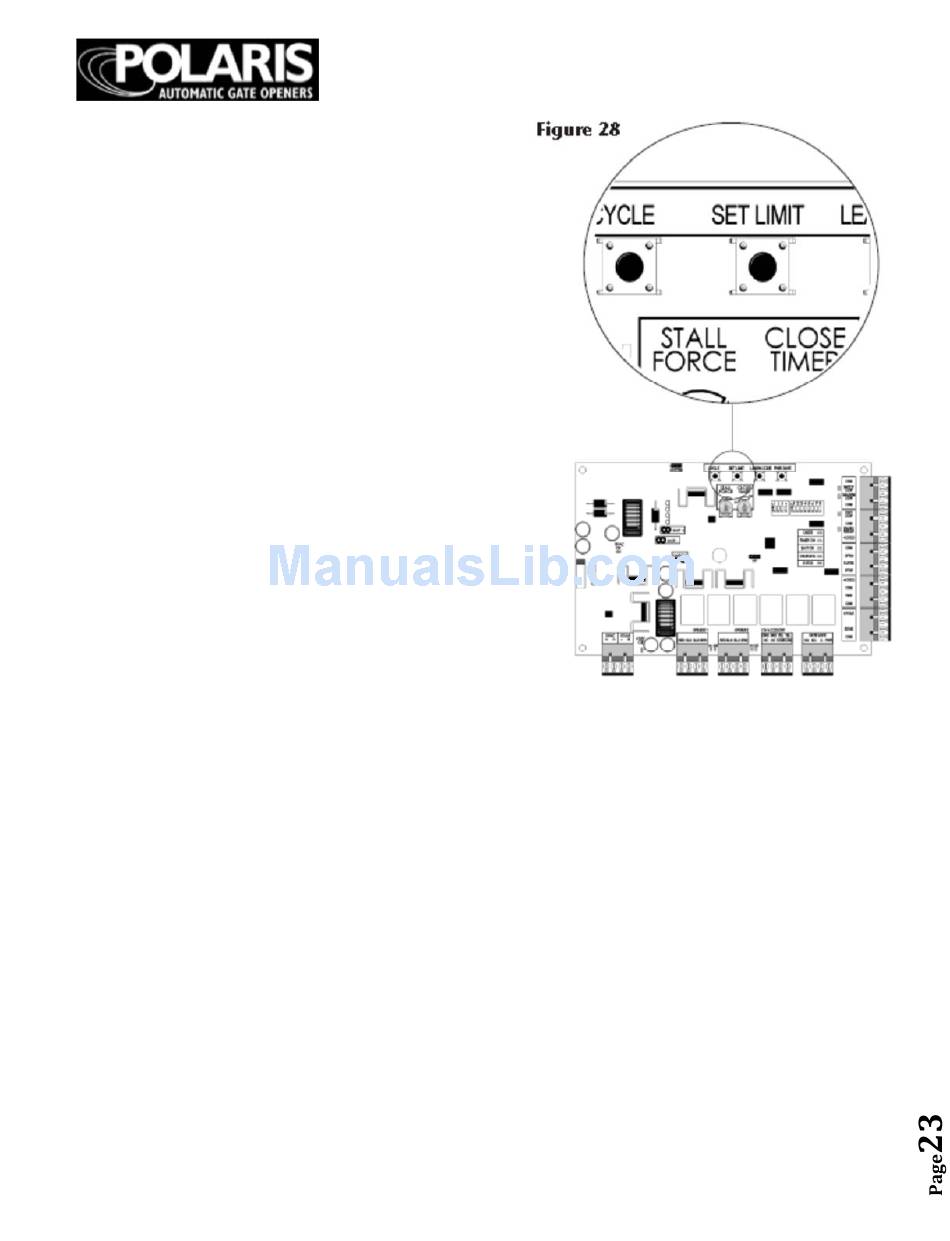

limit setting(fig. 28).The STATUS light will turn on
immediately upon pressing the SET LIMIT button.
The STATUS light will turn off and an audible beep
will verify the closed limit is now set.
Step 4
Press the cycle button on circuit board to return
the gates to the fully open position.
Step 5 (setting secondary gate)
Set Block 2, DIP switch #6 to the ON position.
Again, press the cycle button. The gates will
begin to close. The primary gate should stop at the
closed limit position that was programmed in the
previous steps. The secondary gate will continue
to close until you press the cycle button on the
circuit board.
Step 6
Press and hold the "SET LIMIT" button until one
audible beep is heard to acquire the closed limit
setting (fig. 28). The STATUS light will turn on
immediately upon pressing the SET LIMIT
button. The STATUS light will turn off and an
audible beep will verify the closed limit is now
set.
Step 7
Press the cycle button on circuit board to open
both gates. Then once again press the button to
close the gates and verify the closed limits are set
properly. If the gates did not reach the desired
closed limits, proceed to Step 8.
Step 8
CLEARING THE CLOSED LIMIT SETTINGS:
a) Return the gates to the fully open position.
b) Set Block 2, DIP switch #6 to the OFF position.
c) Press and hold the SET LIMIT button until two
audible beeps are heard. Two audible beeps will
verify the closed limit setting is now cleared.
d) Set Block 2, DIP switch #6 to the ON position.
e) Press and hold the SET LIMIT button until two
audible beeps are heard. Two audible beeps will
verify the closed limit setting is now cleared.
Repeat steps 1 – 7 to program the gates "closed
limit setting".
