Summary of Contents for Atlantis AUW-525C
-

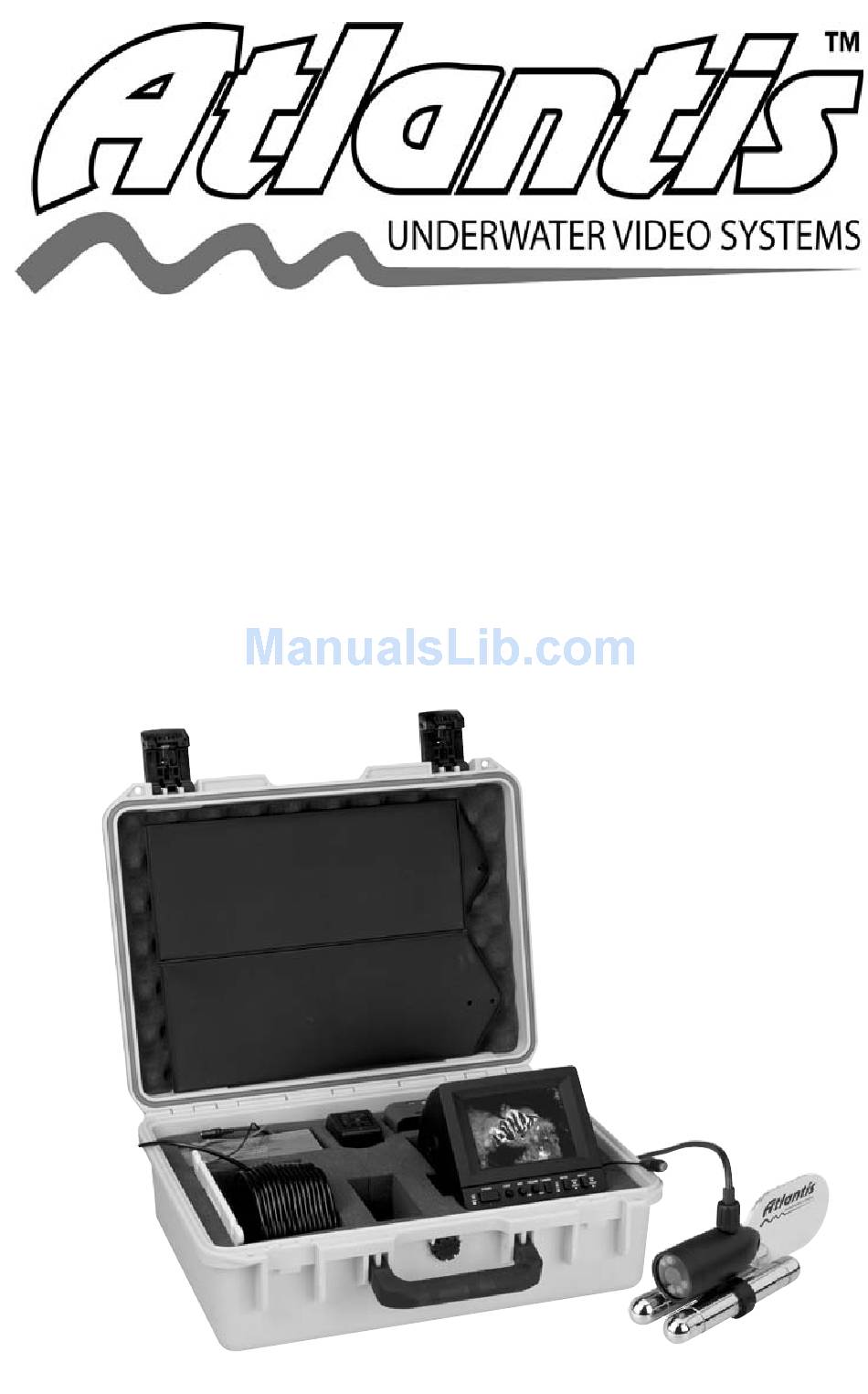

Page 1: User Manual
User Manual AUW-525C • AUW-555 • AUW-701 • AUW-5600... -
Page 2: Introduction / Precautions
System. The Atlantis™, a high-resolution video camera and mon- itor system, offers multi-purpose applications in aquatic environ- ments. The Atlantis™ may be used for: sport fishing, search and rescue, treasure hunting, marine research or for recreational viewing of underwater activities. The Atlantis™, assisted by lighting, will help you see elusive underwater objects and find what you desire in any body of water. -
Page 3: Features
Features Camera: The Atlantis comes with a high-resolution camera with a 92 degree viewing angle. The camera is housed in molded iron casting (aluminum for AUW-555), protecting it from water pressure and strikes from rocks or hard objects underwater. The camera also has attachable weights to stabilize and set the angle at which you want to view the water. -
Page 4: Table Of Contents
Table of Contents Introduction / Precautions………………………………….. Features…………………………………..…..…..….. Setting Up / Using Atlantis List of components…………………………………. Charging battery……………………………..... Preparing for action………………………………..Additional Functions Recording…………………………………………... Replacing or changing fin………………………….. Adjusting viewing angle …………………………... Mounting the monitor……………………………………… Panning Camera Features……………………………………....Operating the camera………………………………. -
Page 5: 1.Setting Up/Using Atlantis
1.Setting Up/Using Atlantis™ List of components Make sure all parts and accessories are included. ___ 1. (1) 5.5” Green tube monitor (7” Monitor for AUW-701 Color Monitor for AUW-5600) ___ 2. (1) Camera with 125’ cable (200’ for AUW-701 Color Camera for AUW-5600 Panning Camera for AUW-555) ___ 3. -
Page 6: Charging Battery
Charging the Battery 1. Battery must be charged after each use and it is recommended that you charge your battery before you use it the first time. 2. Connect alligator clip to battery Red: Power source link to red (+) terminal on the battery Black: Ground link to black (-) terminal on the battery 3. - Page 7 7. Adjust the contrast to highest position and adjust brightness using the con- trols on the monitor. Place the shade over the monitor for clearer viewing dur- ing the daytime. 8. Locate the black three-way switch. Turn it to 0 for regular viewing, I for infrared lights, and II for colored lights.
-
Page 8: Additional Functions
keeping the layers close and tight together. This will make it easier to put away and keep from fighting the cord every time you use the camera. By leaving about 2 feet on the connection end loose you will be able to move the monitor easily and set it to your best viewing angle. -
Page 9: Mounting The Monitor
Atlantis Underwater Panning Camera ™ The Panning Atlantis™ Camera can see the complete surroundings of an underwater environment. The camera has a rust proof aluminum design. The working parts are self-contained in the dome, while the camera itself rotates 310 degrees inside. -
Page 10: Operating The Camera
The remote control has a LED on/off button for the camera light- ing. The camera lights cycle through colored lights, off, and infrared. Adjust the lighting to best view with the water condi- tions the camera is in. Atlantis Color Camera ™ Features The camera features the latest technology that provides 380 TV lines of resolution and has 6 high power LEDs. -
Page 11: Parts
Atlantis™ LCD Color Monitor The compact and lightweight 5.6" monitor is designed for energy saving. the package comes with 7.5A recharge- able battery that will last up to 5 hours. The monitor can watch 2 different sites at the same time using an addi- tional camera. -
Page 12: Connection Diagram
Connection Diagram... -
Page 13: Faq
When do I use the Multi-Color lights? The Multi-Color lights in your AUW-525C camera are designed for use in low- light situations. Turn the power switch to the "ON/LIGHT" position for maximum visibility in low light. The Multi-Color lights will provide a minimum of twice the visibility of traditional infrared lights. - Page 14 Yes. For use in a permanent fish house or in a large boat with a built-in video system, your Atlantis can be hooked up to a larger external TV, provided it has a "VIDEO-IN” jack. The same holds true for a handheld video recorder. See the "Video Recording with the Atlantis"...
-
Page 15: Troubleshooting
• The camera may be buried in soft bottom! (Raise the camera off the bottom.) • The water might be very murky. Select the ON-LIGHT position on the AUW-525C switch to activate the Multi-Color lights in your camera for viewing in low-light conditions. THERE IS A NICK IN THE CAMERA CABLE. -
Page 16: Care & Maintenance
WHAT IS COVERED AND HOW LONG This warranty covers internal operating parts and service/labor to repair or your Atlantis™ product for one (1) year, from the date of purchase, defined as fol- lows: (1) Original Consumer Retail Purchase; (2) First Rental Purchase Agreement;... -
Page 17: Warranty
This warranty does not cover:(1) Damage from misuse, abuse, neglect or acci- dent, natural disasters or Acts of God. (2) Cabinetry, decorative parts, A/C adapters, knobs or buttons. (3) Foreign use of this product. (4) Atlantis™ prod- uct, which has been electronically or mechanically modified in any way or incor- porated into other products. -
Page 18: Specifications
AUW-525C Monitor AUW-552M RESOLUTION 600 CENTER LINE POWER SUPPLY VOLTAGE 11V to 32V DC POWER CONSUMPTION 10.5W with Camera SCREEN SIZE 5.5" Diagonal OPERATIONAL TEMP 7˚ F to 143˚ STORAGE TEMP -22˚ F to 167˚ F DIMENSION 6.5"X 5.9"X 7.9"... - Page 19 AUW-701 Monitor AUW-701M RESOLUTION 600 CENTER LINE POWER SUPPLY VOLTAGE 11V to 32V DC POWER CONSUMPTION 19W with Camera SCREEN SIZE 7" Diagonal OPERATIONAL TEMP 7˚ F to 143˚ STORAGE TEMP -22˚ F to 167˚ F DIMENSION 7.3"X 6.9"X 8.7" WEIGHT Approx.
- Page 20 Browse through the included catalog for all your underwater camera needs and place your order by calling: 800-226-9671 visit our web site www.atlantiscamera.com...
