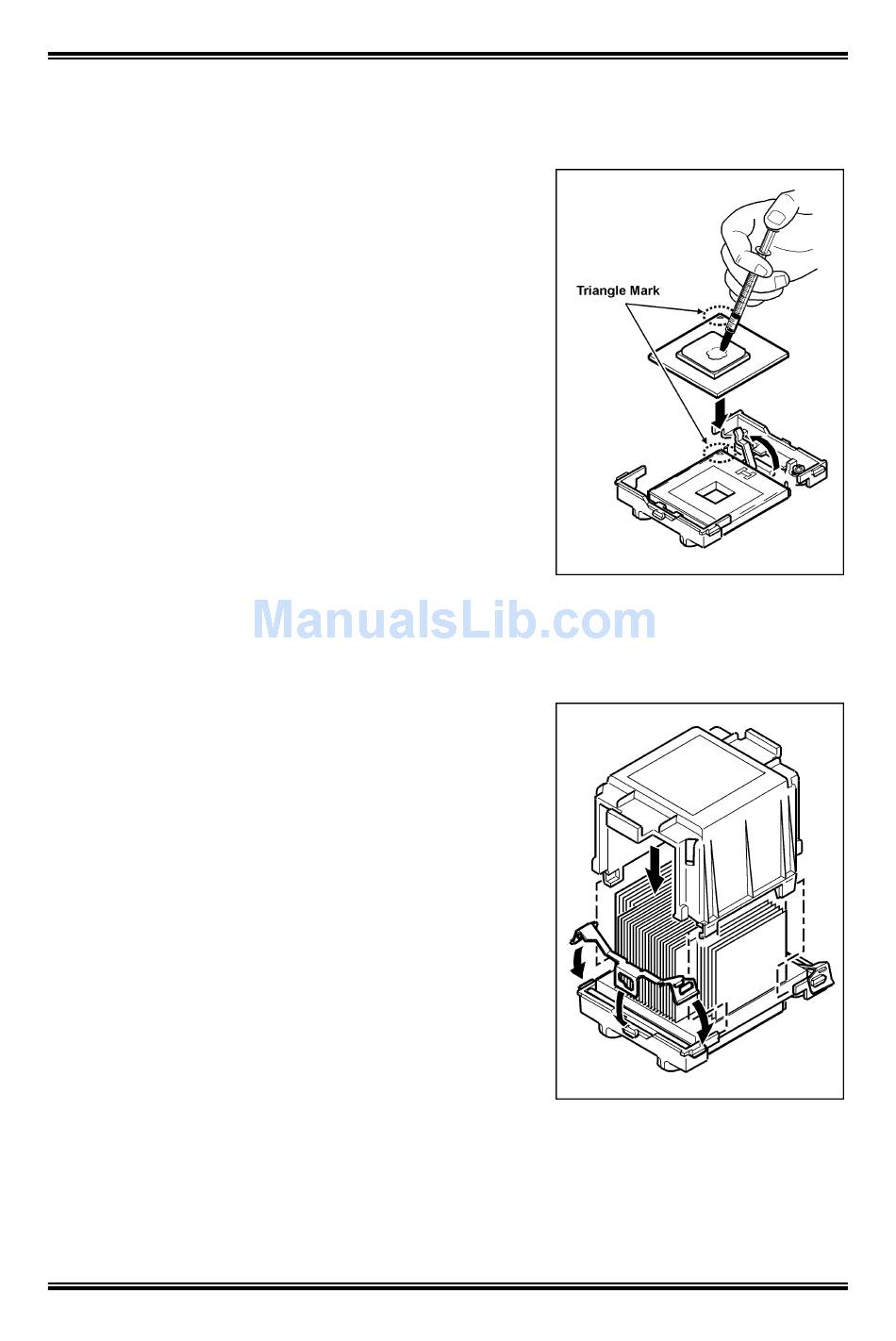

Installing CPU into Socket

1. Lift the socket lever upright to 115 degree at
least.
2. Align the triangle mark on the CPU with the
triangle cutout on the CPU socket.
3. Insert the CPU into the socket until it fits in
place. Do not use extra force to insert CPU; it
only fit in one orientation. Close down the
socket lever to its locked position while firmly
pressing the CPU.
4. Apply thermal grease to the CPU with an
applicator.
2.3.3.

Installing Heatsink and Wind Tunnel

1. Align the heatsink with the retention modules,
and then place the heatsink onto the CPU.
2. Position the retention clip over the plastic tab
and then engage the clip end-slot over the
plastic tab.
3. Press downward on the retention clip ends until
they engage the plastic tabs.
4. Repeat steps 2-3 to install the other retention
clip.
5. Install the CPU wind tunnel center portion over
the heatsink. Note that the plastic tabs engage
the tabs on the retention clips.
