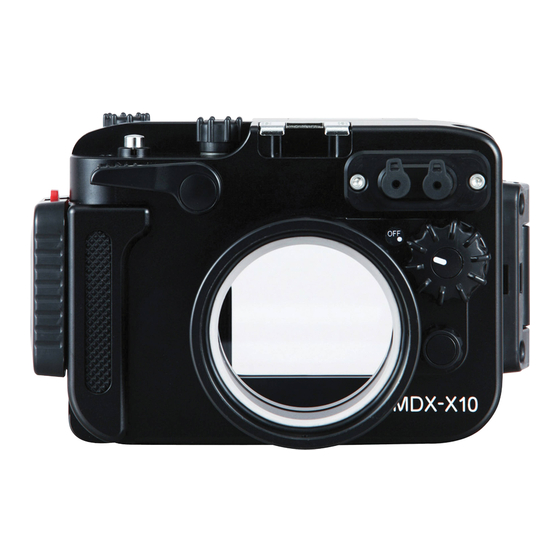

Underwater housing for fujifilm x10

Advertisement

Quick Links

06160
UNDERWATER HOUSING for
Fujifilm X10
MDX-X10
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDX-X10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sea & Sea MDX-X10

  • Page 1 06160 UNDERWATER HOUSING for Fujifilm X10 MDX-X10 Instruction Manual...
  • Page 2: Table Of Contents

    Introduction Thank you for purchasing SEA&SEA products. Please read this instruction manual carefully prior to using this product. Only with a thorough understanding of this manual’s content will you be able to use the housing correctly. After reading the manual, please be sure to keep it in a place where you can easily come back to it at any time.
  • Page 3: Safety Precautions

    Safety Precautions For safe handling of the product, please read the following precautions carefully before use. Failure to heed the precautions listed below could result in serious consequences. To prevent injury or damage to yourself and/or others, please observe the precautions as they contain highly important information related to personal and product safety.
  • Page 4 Safety Precautions Do not rest heavy weight on the product. It might deform the outer casing, damage internal parts, make the waterproofing fail, or result in fire or electric shock. Please note that some marks may be left on the camera scraping against the dials or gears of the housing.
  • Page 5: Precautions On Handling The O-Ring

    Precautions on Handling the O-ring This product is kept watertight by the O-ring. To keep the O-ring functioning properly, please observe the following. Improper handling of the O-ring could cause flooding. CAUTION SEA&SEA products use blue O-rings. These O-rings are impregnated with silicone oil through a special process.
  • Page 6 Precautions on Handling the O-ring Coat with silicone grease Silicone grease protects the O-ring from chafing. After checking the O-ring to make sure that there are no scratches, dust, or debris, apply a light coating of silicone grease to the entire O-ring with your finger. Applying too much grease will make it easier for dust and debris to adhere to the O-ring, and could cause flooding.
  • Page 7: Identification Of Parts

    Identification of Parts Accessory shoe Fiber-optic cable socket Fiber-optic cable Mode dial socket adapter Fn button SA8 M10 Fixed Ball Base Socket Shutter lever Lock knob Hinge bracket screw Port (M67 Power/ZOOM dial Front case Focus mode selector dial Flash close lever Main command dial Flash pop-up button Exposure...
  • Page 8: Preparation For Setting Up

    Preparation for Setting Up This product must be used in combination with the optional equipment (digital camera, port, strobe, accessories etc.) for underwater photography. In order to set up the equipment, prepare each item correctly. Prepare the housing and port The port on this product is built into the housing and thus cannot be removed.
  • Page 9: Opening And Closing The Housing

    Opening and Closing the Housing Opening and closing the housing is done with the lock knob. Here we will explain how to open and close the lock knob. Opening the lock knob Push the tab outward to unlock as indicated by , and rotate the lock knob clockwise as indicated by...
  • Page 10 Opening and Closung the Housing Closing the locking lock knob パチン錠を閉める Close the rear case, and rotate the lock knob counterclockwise Lock knob CAUTION Before aligning the rear case and front case, make sure there are no specks of dust, acratches, or deformities on the O-ring and O-ring contact surfaces. Check to make sure that the locking lock knob is securely locked.
  • Page 11: Mounting The Camera In The Housing

    Mounting the Camera in the Housing CAUTION To avoid flooding by trapping, remove the strap / protective cover / metal strap clips from camera before installation. Place the anti-reflective tape on the lens nameplate (part A) on the camera Part A Fig.1 Anti-reflective tape Push the gear for the...
  • Page 12 Mounting the Camera in the Housing Turn off the power of the camera and place it as shown in Fig.4 Make sure that there is no dust or scratches on the O-ring / O-ring contact surface before closing the rear case. Then close the rear case and close Fig.4 the lock knob...
  • Page 13: Connecting The Strobe

    Connecting the Strobe Connect the strobe with the fiber-optic cable (option) when the strobe is triggered by sensing the light from the camera's built-in flash. Remove the fiber-optic cable Fiber-optic cable socket cap socket caps Insert the fiber-optic cable's connector into the socket until it stops Do not remove the caps from fiber-optic cable sockets not in use...
  • Page 14: Use The Camera's Built-In Flash

    Use the camera’s built-in flash If planning to use the built-in flash on the camera, remove the fiber socket adapter from the housing. Fiber-optic cable socket adapter Remove the two screws for the fiber-optic cable socket adapter on the housing by inserting the accompanying hexagon wrench into each and turning counterclockwise...
  • Page 15: External Controls

    External Controls Power / ZOOM dial Power / Zoom dial By rotating the dial as indicated, you can turn the power ON/OFF and change the zoom angle. Due to how the port on the housing is structured, the zoom range on the camera is limited to 85 mm on the tele side.
  • Page 16: Sub Command Dial

    External Controls Main command dial Rotate the dial to enable operation. In addition, you can also change the Main command dial settings in M mode by pushing the button in the middle of the dial. Sub command dial Sub command dial Other controls Other control parts on the housing correspond to the operation parts of the digital camera.
  • Page 17: Attaching The Hand Strap

    Attaching the Hand Strap Push one end of the hand strap through the hook on the housing, insert the other end through the loop produced, and then pull the strap tight as shown CAUTION Do not use the strap when out of water if using optional accessories (such as a wide-angle conversion lens, stay, arm, and strobe / light).
  • Page 18: Attaching The Optional Accessories

    Attaching the Optional Accessories This product accepts SEA&SEA optional accessories. By using this product in combination with those accessories, you will be able to try various shooting techniques. CAUTION Lenses, strobes and other accessories have different depth rating. Check the depth rating for each before use. Read the instruction manual for each accessory before use.
  • Page 19: Accessory Shoe

    Attaching the Optional Accessories Accessory shoe Strobes / lights can be mounted to the accessory shoe by using optional Mini Shoe Arm (29511) or Hot Shoe Arm (29501) or SA8 Ball Base for Accessory Shoe (22120). <Example> CAUTION The max. weight of an accessory that can be mounted to the accessory shoe is approx.
  • Page 20: Maintenance And Storage

    Maintenance and Storage CAUTION Never use chemicals, cosmetics, any petroleum solvents such as paint thinner, or neutral detergent on the product. They may deform and damage the product. After each use in salt water, make sure it’s watertight, then soak it sufficiently in fresh water.
  • Page 21: Specifications

    Specifications Compatible Fujifilm X10 camera Controls ON/OFF/Zoom dial, Focus mode selector dial, Shutter lever, Fn button, Mode dial, Flash pop-up button, Flash close lever, Exposure compensation dial, Main command dial, AFL/AEL button, MENU/OK button, Sub command dial, RAW button, DISC/BACK button, WB button, AF/playback zoom out button, AE/playback zoom in button, Playback button Construction...
  • Page 22 SEA&SEA SUNPAK Co., Ltd. 1-4-6, Kitasenzoku, Ohta-ku, Tokyo, Japan 145-0062 TEL. +81-3-5701-5533 World Customer Service Center TEL. +81-48-255-8512 http://www.seaandsea.jp 1130-Z-01A (2012年3月現在 / Current as of Mar.2012)
