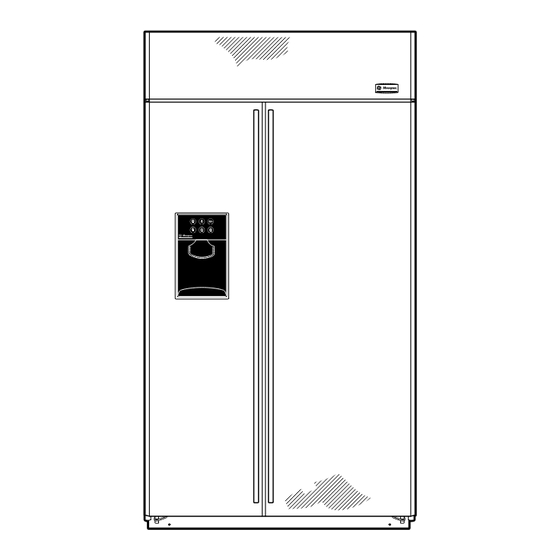

GE Monogram ZISS420DXSS Datasheet

ZISS420DXSS
GE Monogram
with Dispenser and Water Filter
Dimensions and Installation Information (in inches) Dimensions and Installation Information (in inches)
41"
25-3/4"
Case Width
*83-1/2"
at
Rear
42"
27-3/4"
Frame to Frame
including
handle
Product Clearances
These refrigerators are equipped with a 2 position door stop.
The factory set 130° door swing can be adjusted to 90° if
429D ia 8
clearance to adjacent cabinets or walls is restricted.
130° Door Swing
13" 19"
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
4" minimum clearance is required when door swing is
adjusted to 90° . If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
Installation Information: Before installing, consult
installation instructions packed with product, or online
at Monogram.com, for current dimensional data.
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
42"Built-In Stainless Steel Side-by-Side Refrigerator
®
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
*84" From
84-1/2" max. height.
Floor to
Note that the top
Top Frame
case trim at the
front is 1/2" higher
and will overlap
upper cabinetry or
soffit. Use leveling
legs and wheels
for a maximum 1"
height adjustment.
90° Door Swing
GE Profile or
® ™
service,
®
The Installation Space
84-1/2" max
83-1/2" min
Finished
Opening
Water and electrical locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24" .
The refrigerator will project forward, slightly beyond
23-7/8"
adjacent cabinetry, depending on your installation.
Behind
Frame
The cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
28-5/8"
bottom of the soffit.
Frameless cabinets:
The case trim overlaps cabinets at the top and sides.
4" Min.
to Wall
Therefore, frameless cabinets may require filler strips to
prevent interference with cabinet door swing. The opening
must allow for filler strips.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-
prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or back
wall. The water line should be 1/4" O.D. copper tubing or
GE SmartConnect
water connection location, long enough to extend to the
front of the refrigerator. Installation of an easily accessible
shut off valve in the water line is recommended.
36" Models 12"
42" Models 18"
48" Models 20"
*Finished Width
6"
Electrical
Area
5"
75" From Floor
24"
5"
5"
Water Supply
3-1/2"
3-1/2"
696Dia15
kit between the cold water line and
™
Listed by
Underwriters
Laboratories
Specification Revised 5/08
to Bottom
of Electrical
Area
As an EnErgy StAr
®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
110196
