Tripp Lite SMARTPRO Specifications

TRIPP LITE SMARTPRO
UPS BATTERY BACKUP
Lenovo qualified ThinkServer
®
the ThinkServer TS200V, TD230, TS130
and TS430.
Highlights
• 1500VA/1.5kVA line interactive tower UPS
• Maintains 120V nominal output over an input range of
75 to 147V
• Network communications supported via USB port,
serial port
• Input: NEMA 5-15P (120V, 15A)/Output: 6 NEMA
5-15R (120V)
• 2-year product warranty/
Insurance (U.S., Puerto Rico and Canada only)
Description
Tripp Lite's SMART1500 intelligent, line interactive UPS
system protects servers, networking accessories and
telecommunications equipment
fluctuations and transient surges. Large internal batteries
offer 20 minutes half load runtime and 7 minutes at full load
during power failures. 1500VA/980 watt power handling
capability supports a variety of networking, telecom and various
other application types, including the support of multiple
network workstations. Includes a total of 6 outlets, 1 of which
can be individually powered on and off via software interface
to selectively reboot remote equipment or to automatically
shed less significant loads to extend battery runtime for more
critical equipment. Supports remote monitoring of UPS and
site power conditions via built-in USB and DB9 monitoring
ports. Includes PowerAlert UPS monitoring and unattended
shutdown software with complete cabling. Supports SNMP
with optional SNMPWEBSOLO external adapter. Built-in
For more information
www.lenovo.com/thinkserver
Ready for
®

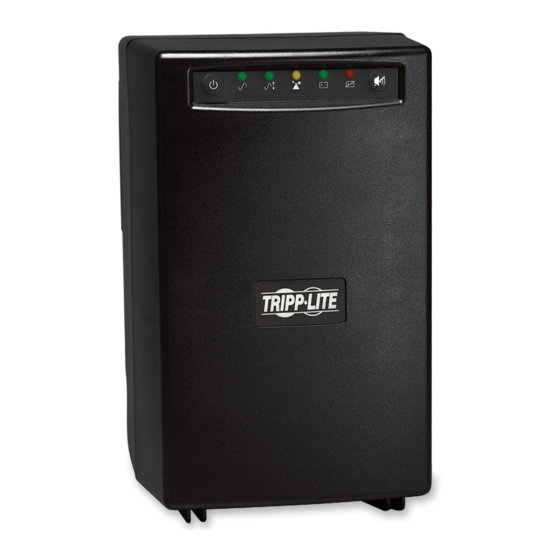

SmartPro Tower UPS
System – Intelligent, Line
Interactive Network Power
Management System
(P/N: 0B33109)
250,000 Ultimate Lifetime
$
from blackouts, voltage
audible alarm and 5 front panel LEDs indicate status of line
power, battery power, battery low/replace, voltage regulation
and load level. Wall mountable with optional UPSWM wallmount
bracket. Network-grade AC surge suppression protects
equipment from damage and performance problems resulting
from transient surges. Attractive, small-footprint tower
housing uses less than 66 square inches of floor or desktop
space. 2-year warranty with
insurance (U.S. and Canada only).
Package Includes
• SMART1500 UPS system
• USB and DB9 monitoring cables
• PowerAlert unattended shutdown and UPS/power
monitoring software
• Instruction manual with warranty information
Features
• 1500VA/980 watt power handling capability supports
a variety of networking, telecom and various other
application types
• Built-in voltage regulation and battery support, plus
complete AC suppression prevents equipment damage,
data loss and downtime
• Large internal batteries offer 20 minutes half load runtime
and 7 minutes at full load during power failures
• Automatic Voltage Regulation (AVR) circuits with two
boost and one voltage reduction level maintains usable
120V nominal output over an input voltage range
of 75 – 147V
• Includes a total of 6 NEMA 5-15R outlets, 1 of which can
be individually powered on and off via software interface
to selectively reboot remote equipment or shed less
significant loads to extend battery runtime for more
critical equipment
250,000 connected equipment
$
