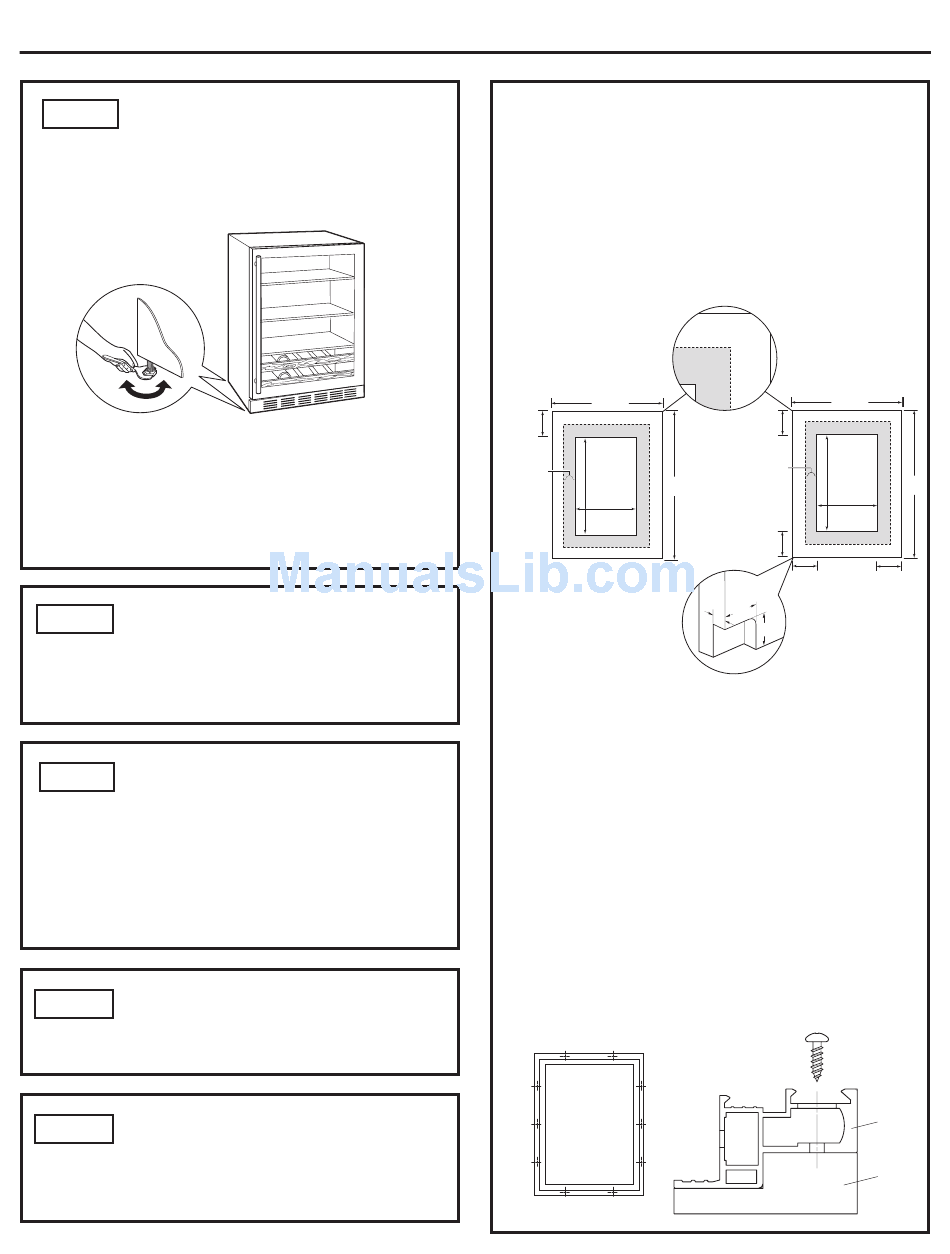

STEP 3 LEVEL

• Use an adjustable wrench to turn the leveling legs and
raise or lower the product.
• Adjust carefully; the product should be level and plumb
with cabinetry, and should align with adjacent toekick
height.
Turn Right to Lower
Turn Left to Raise
If you skipped Step 2:
• Select the hinge cover marked "R" or "L", depending
on door swing.
• Peel backing off the tape inside the decorative
hinge cover. Press and snap into position.
• Snap the screw hole cover into place on the
opposite side.

STEP 4 CONNECT POWER

• Connect power cord plug to a properly grounded
receptacle.
• Check to make sure power is on by opening the door
to see if interior light turns on.
STEP 5 SLIDE PRODUCT INTO
THE CUTOUT
• Carefully, slide the unit into the opening. Be careful
not to entangle the power cord.
• Make certain that the door protrudes 1" beyond
the surrounding cabinets (1-7/8" for custom frame
models).
• Check again to be sure the unit is level.
STEP 6 INSTALL NAMEPLATE
• Follow instructions on the back page for installation of
the Monogram nameplate.
STEP 7 SET TEMPERATURE CONTROLS
• The temperature controls are preset. Refer to the
Owner's Manual for more information. Allow 24 hours
for temperature to stabilize.
Installation Instructions
7

CUSTOM FRAME PANEL MODELS

Model ZDWI240WII and ZDBI240WII
These models require a custom panel frame surrounding
the glass. There are two options: the panel may be 29-3/4"
or 30" high. A 30" panel requires a notch cut into the bottom
of the panel to avoid interference with the hinges.
• Rout the back side of the panel to the dimensions shown.
• A custom handle of your choice must be installed before
the panel is mounted onto the door.
NOTE: The 4 corners
of the routed areas
must be squared
to fit the corners
of the metal
door frame.
Option 1
23-1/8"
2-1/4"
wide,
all sides
25-1/4"
Rout the
back side
29-3/4"
GLASS
of the
opening
18-5/8"
7/16"deep,
1-1/8" wide
3/4" Thick Custom Panel,
Back Side
NOTE: Right-hand models
illustrated. Cut notches
for hinge clearance on the
opposite side for left-hand
door swing.
Choose Option 1 or Option 2 panel size depending on cabinetry
size or style.
NOTE: A solid panel that covers the door glass CANNOT be
installed on these models.
Install the custom panel:
• Open the door fully.
• Remove the gasket surrounding the inside of the door to
expose the existing screw holes for the custom panel.
• Hold the custom frame panel against the door and align
carefully, top to bottom and side to side. Mark screw hole
locations on the back side of the panel.
• Drill pilot holes in the back side of the custom panel. In
hardwood, drill 3/32" pilot holes. In softwood, drill 5/64" holes.
• Secure the prepared panel to the door using ten (10)
#8 x 5/8" screws. Drive the screws through the door frame
and into the wood.
• Replace the gasket.
GLASS
Back
Option 2
23-1/8"
2-1/4"
25-1/4"
Rout the back
side of the
GLASS
opening 7/16"
deep, 1-1/8" wide
18-5/8"
2-1/2" at
bottom
2-1/4"
2-1/4"
1/8"
Cut the notch
1/4"
1/8" deep, 1/4"
1/4"
wide and 1/4"
high
#8 x 5/8"
Screws
Door
Frame
Custom
Framed
Panel
30"
