4. Assembly of Dust Cup
Note: Ensure that the unit is not
connected to the charger before fitting
or cleaning the dust cup (container).
1. To open the dust cup compartment, push
the dust cup release button and remove
the dust cup container (Fig/4.1).
2. Ensure that the dust cup filter is inside,
then re-attach the dust cup container to
the hand vacuum (Fig/4.2).

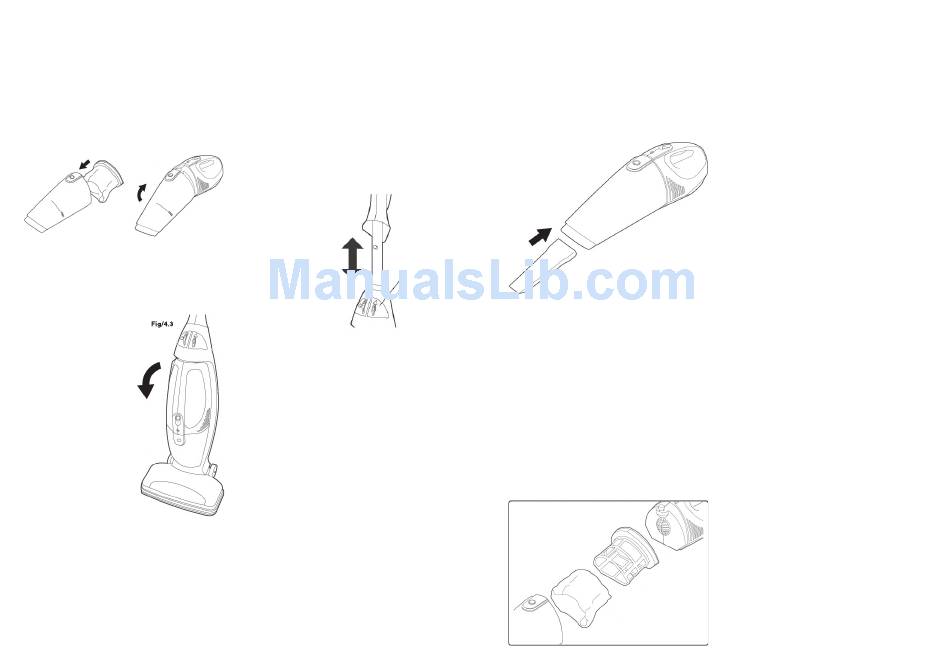

Fig/4.1
Fig/4.2
Detaching the Power Unit/Hand Vac
from the Power Unit Housing
NOTE: The floor brush will not function
without the power unit/hand vac in place
and fully charged.
1. To
remove
the
power unit/hand vac
from the power unit
housing,
depress
the power unit/hand
vac release button
(Fig/4.3).
2. Grasp the handle of
the power unit/hand
vac and pull out.
3. To replace the power
unit/hand vac into the
power unit/hand vac
receptacle, place the
bottom of the power
unit/hand vac into
the receptacle first,
then tilt towards the power unit housing
until it audibly clicks into place.
4
5. Using the Vacuum
NOTE: The floor brush will not function
without the power unit/hand vac in place
and fully charged.
The vacuum is ideal for cleaning stairs and
awkward areas.
1. Ensure that the power unit/hand vac is in
position on the power unit housing.
Extending the Telescopic Handle
The vacuum is equipped with a telescopic
handle to increase the reach when
vacuuming.
1. To extend the
handle, depress
the
telescopic
handle
release
Fig/5.1
button (Fig/5.1).
2. Hold
down
Telescopic
telescopic h andle
Handle
release
button
Release
Button
while pulling the
handle up until it
clicks into place.
3. To decrease the length of the handle,
depress the telescopic handle release
button and push the handle in until it clicks
into place.
Using the Crevice Tool
The crevice tool can be used by attaching it
directly to the power unit/hand vac.
To attach crevice tool to the power unit/
hand vac:
1. Remove the power unit/hand vac from the
main unit.
2. Attach the crevice tool directly into the
suction nozzle of the power unit/hand vac
(Fig/5.2).
Fig/5.2
6. Changing & Cleaning
the Dust Cup Filter
Note: Ensure that the unit is not
connected to the charger before fitting
or cleaning the dust cup (container).
To achieve the best performance, empty
the dust cup container and clean the
dust cup filter after each use.
1. Remove the power unit/hand vac from the
power unit/hand vac receptacle.
2. To remove the dust cup container, press
down on the dust cup release button and
pull off the dust cup container.
3. Pull out the dust cup filter and empty the
dust from the dust cup container (Fig/6.1).
Fig/6.1
4. Rinse the dust cup filter in cold water.
Wait until it air dries completely before
replacing it back into the dust cup
container.
Do not machine wash to clean the dust
cup filter. Do not use a hair dryer to dry it.
Air dry only.
5. Replace the dust cup filter carefully into
the dust cup container.
NEVER operate vacuum cleaner without
dust cup filter in place.
6. Attach the dust cup container to the power
unit/hand vac.
CAUTION: The suction nozzle must be
open and free of any obstruction at all times
to prevent the motor overheating which could
cause damage.
NOTE: To ensure peak performance, it is
recommended that the dust cup filter be
replaced every three (3) to six (6) months
depending on usage.
Replacement Dust Cup Filters
Replacement dust cup filters are available
from your Vax stockist or Vax direct. Phone
Vaxcare or visit: www.vax.com.au
