Summary of Contents for SPE EXPERT 1K-FA

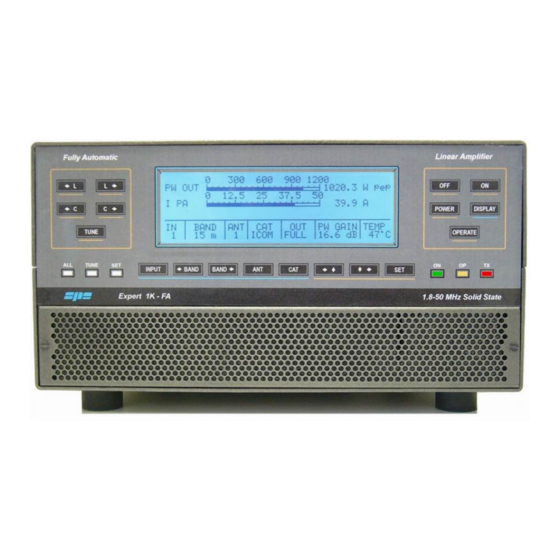

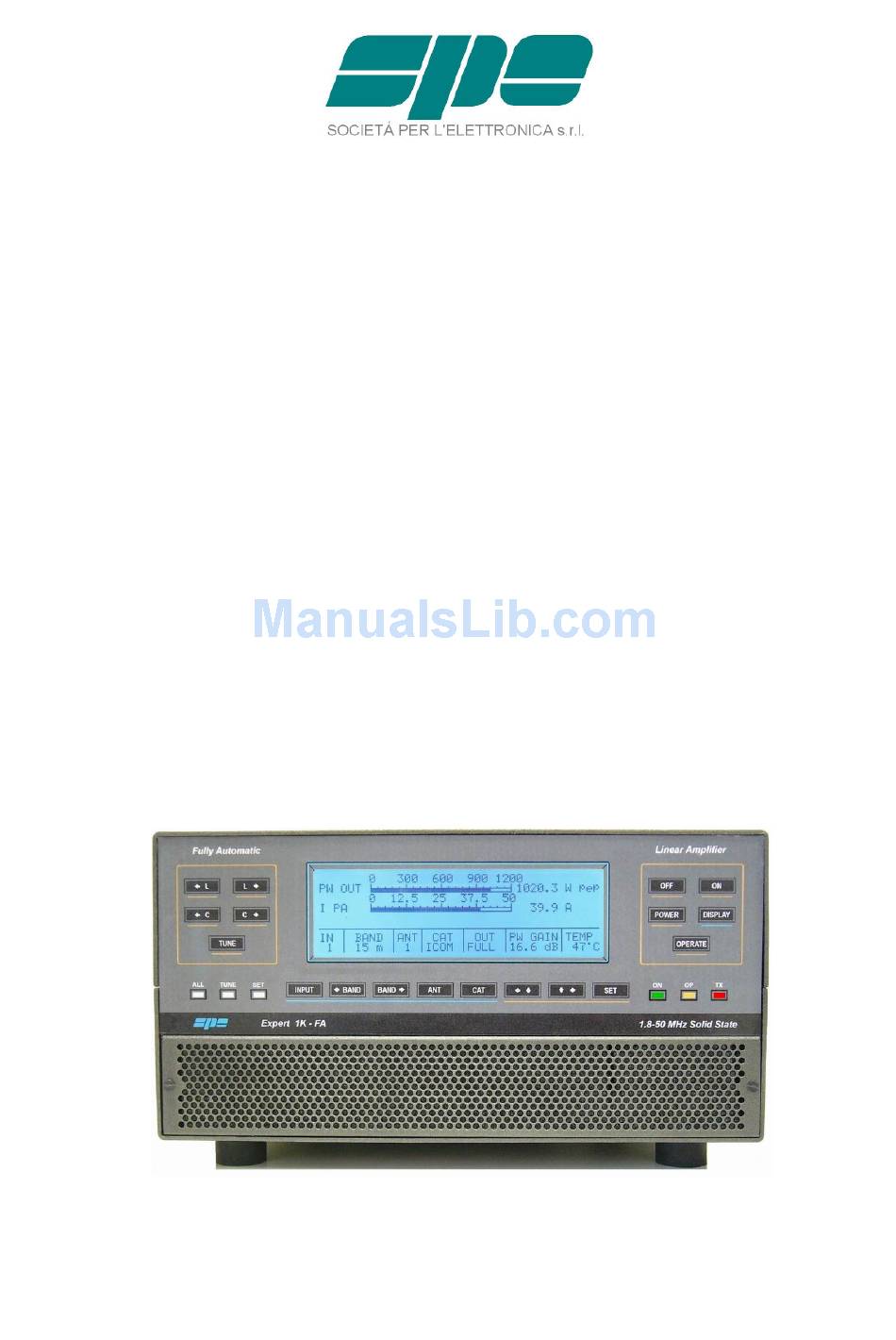

- Page 1 EXPERT 1K-FA 1KW SOLID STATE FULLY AUTOMATIC LINEAR AMPLIFIER USER’S MANUAL...
- Page 2 User’s manual EXPERT 1K-FA Pag. 2 of 42...
-
Page 3: Table Of Contents
User’s manual EXPERT 1K-FA Main index IMPORTANT ..............................4 PRECAUTIONS..............................4 UNPACKING ..............................6 PANEL DESCRIPTION ........................7 Front Panel ............................7 Rear Panel............................8 GENERAL INFORMATION ......................9 Power supply ............................9 Input / Output ............................9 ALC / RELAY / CAT..........................9 INTERCONNECTION WITH THE TRANSCEIVER ...............11 USE OF THE LINEAR AMPLIFIER ....................12 EXTERNAL GROUND CONNECTION ..................13... -
Page 4: Important
User’s manual EXPERT 1K-FA Congratulations for choosing the SPE EXPERT 1K-FA linear amplifier It is small, and powerful, it covers the whole frequency range from 1.8 to 50 MHz, completely automatically. All operating conditions (frequency, antenna and tuner) may be controlled from your transceiver. - Page 5 User’s manual EXPERT 1K-FA WARNING! DO NOT obstruct the entries for cooling air at both the sides of the amplifier. Ensure that no object impedes the correct operation of the fans. WARNING! DO NOT expose the linear amplifier to rain, snow or any liquids.
-
Page 6: Unpacking
User’s manual EXPERT 1K-FA UNPACKING Remove the packing and carefully check the contents. If you find any damage or if there are any parts missing, contact your retailer immediately. Keep the shipping cartons for future transportation if required. Accessories included in the carton a) Transport carry bag. -
Page 7: Panel Description
User’s manual EXPERT 1K-FA PANEL DESCRIPTION Front Panel Fully Automatic Linear Amplifier Expert 1K - FA 1.8 -50 MHz Solid State 1) ON 2) OFF 3) DISPLAY switches between display pages. 4) POWER switches output power from “FULL / HALF“ (1KW / 500 W). -
Page 8: Rear Panel
User’s manual EXPERT 1K-FA Rear Panel 1) ANT connectors for four possible antennas. 2) INPUT connectors to connect two exciters. 3) FANS 4) RS 232 CONNECTOR 5) IN 1 ALC, RELAY, CAT connectors for exciter 1. 6) IN 2 ALC, RELAY, CAT connectors for exciter 2. -
Page 9: General Information
Most modern tranceivers have CAT control. In old models often, analog or digital information are sent for changing band. The SPE Expert 1K-FA, thanks to an efficient frequency counter, constantly controls and verifies data coming from the transceiver. Automatic management of bands, antennas and tuner can be done in the following way: Pag. - Page 10 User’s manual EXPERT 1K-FA In recent ICOM, YAESU, KENWOOD models, through CAT. In the older ICOM models, through “Band Control Voltage”. In the YAESU models not listed, or without CAT, through "Band Data". In every other case through the frequency counter.
-
Page 11: Interconnection With The Transceiver
User’s manual EXPERT 1K-FA INTERCONNECTION WITH THE TRANSCEIVER The diagram shows the connections with one transceiver only.To connect the second transceiver repeat the same connections using the port “IN 2“. For the ALC, RELAY connections, use the shielded cable (furnished) with phono RCA connectors. -
Page 12: Use Of The Linear Amplifier
User’s manual EXPERT 1K-FA USE OF THE LINEAR AMPLIFIER ANT 1 ANT 2 INPUT 1 TUNER ANT 3 INPUT 2 AMPLIFIER ANT 4 IN 1 IN 2 RELAY RELAY RS 232 The position of the contacts, as shown in the diagram, is the situation of the linear amplifier in OFF state. -
Page 13: External Ground Connection
User’s manual EXPERT 1K-FA EXTERNAL GROUND CONNECTION WARNING! Before connecting an external ground as described below, check with a qualified electrician that your national wiring codes permit such a connection. To reduce TVI, BCI and other RF problems it is sometimes helpful to connect the amplifier to a good RF ground. -
Page 14: Power Supply
User’s manual EXPERT 1K-FA POWER SUPPLY The power supply unit of the SPE Expert 1K-FA has two blocks with two separate power transformers. The first block has regulated and protected voltages, and powers all the electronic circuits for command and control. - Page 15 User’s manual EXPERT 1K-FA 230 VAC brown brown brown white white black black blue blue blue 1 KW 50 W TRANSFORMER TRANSFORMER 115 VAC brown brown brown white white black black blue blue blue 1 KW 50 W TRANSFORMER TRANSFORMER After checking your wiring, re-install the plastic protection, the bottom cover and make sure that in “Fuse 1”...
-
Page 16: Tuner
User’s manual EXPERT 1K-FA TUNER The amplifier has an automatic tuner that handles load mismatches up to 3:1 VSWR (2,5:1 for 50 MHz). The circuit used is a PI – L network with excellent harmonic suppression. The amplifier contains a look-up table with all the permitted bands. -
Page 17: Protections / Alarms
RF on the tuner; input power; power combiner balance. NOTE: Unlike all the other linear amplifiers that measure only the reflected power of the antenna, to guarantee a greater protection of the PA, the SPE amplifier measures also the power of harmonics reflected by the band-pass filter. - Page 18 User’s manual EXPERT 1K-FA NOTE: Before the temperature limits are reached, the output power will change from FULL to HALF automatically, so that transmission with the amplifier may continue with reduced power. In SSB the use of the compressor, only when necessary, strongly reduces the increase of the temperature.
-
Page 19: Programming
User’s manual EXPERT 1K-FA 10. PROGRAMMING The three [SET], [◄▲] and [►▼] keys, underlined with an orange line, permit programing the amplifier and they can used in the following way: [SET] Use it to open the menu page, to validate the choices and to exit from the menu page. - Page 20 Select the brand or function: - SPE No further programming is necessary, all is already programmed for the SPE transceivers. - ICOM You need to choose between “CI-V“, or “Band Control Voltage “ if you use the analog connection (read the “CAT CONNECTION”...
- Page 21 User’s manual EXPERT 1K-FA c) MANUAL TUNE Allows you to tune the amplifier manually. However, achieving a better setting than that obtained by automatic tuning is very unlikely. Set your exciter to transmit a continuous RTTY or CW signal. Press the [◄ L], [L ►], [◄ C], [C ►] keys until you obtain the minimum SWR.
-
Page 22: Initial Operation Of The Amplifier
User’s manual EXPERT 1K-FA 11. INITIAL OPERATION OF THE AMPLIFIER Before turning ON the amplifier, the following preliminary operations are necessary: Read this manual with care. Be sure that the amplifier is correctly set for the local mains voltage supply. -
Page 23: Operating
You need few precautions when using the amplifier thanks its high level of automation. SPE reminds you that it is better to lose a fraction of dB in transmitted power, by slightly reducing the drive power, than to over-drive the amplifier and have a poor quality transmission. - Page 24 “PW REV”. If it shows more than 120/140 Watts, decrease the power of the transceiver until that value or less is noted. c) RTTY, DIGITAL MODES, SSTV, FM: SPE recommends you operate in ‘HALF’ mode because these types of transmission have a very high duty cycle. Check “PW REV”, and if it shows more than 120/140 Watts, decrease the power...
-
Page 25: Cat Connections
For connections to the Radio connector, refer to the transceiver operating manual. 12.2 SPE In the case of SPE transceivers, it isn’t necessary to make a cable because it is supplied with the transceiver. Pag. 25 of 42... -
Page 26: Icom
User’s manual EXPERT 1K-FA 12.3 ICOM CAT CI–V Interface RX TTL RADIO CONNECTOR DB15 M This interface is standard for all the Icom models equipped with CAT, the cable always terminates to a 3,5 mm. plug BAND CONTROL VOLTAGE Interface... -
Page 27: Kenwood
User’s manual EXPERT 1K-FA 12.4 KENWOOD CAT RS232 Interface RX 232 TX 232 TX 232 (RXD) (TXD) RX 232 RADIO CONNECTOR DB15 M The Radio connector could be DB-9 or DB-25 male connector or female connector (read the specific manual). In the manual also verify if the RTS–CTS link is necessary. -
Page 28: Yaesu
User’s manual EXPERT 1K-FA 12.5 YAESU CAT RS232 Interface RX 232 TX 232 TX 232 (RXD) (TXD) RX 232 RADIO CONNECTOR DB15 M The Radio connector may be a DB-9 or DB-25 male connector or female connector (read the specific manual). Verify from the manaul if the RTS–CTS link is necessary. -
Page 29: Band Data Interface
User’s manual EXPERT 1K-FA BAND DATA Interface BAND A BAND A BAND B BAND B BAND C BAND C BAND D BAND D RADIO CONNECTOR DB15 M Without the CAT, the band is commanded by four digital signals (Band A, Band B, Band C, Band D). -
Page 30: Other Connections
User’s manual EXPERT 1K-FA OTHER CONNECTIONS On the 15-pin connector, in addition to the CAT signals, the ALC and RELAY signals are repeated, REMOTE ON and TX – INH are also available. If you use this connector, in some cases, separate ALC and RELAY cables may not be necessary, or it may be possible to turn the amplifier on / off by turning on / off the transceiver (REMOTE ON). -
Page 31: Tx Inh Link
User’s manual EXPERT 1K-FA 13.3 TX INH LINK Some tranceivers have a suitable input (called TX – INHIBIT, LINEAR, MUTE, etc.) that disables transmission. To improve the receive / transmit switching efficiency it is highly recommended, but not mandatory, to connect this input with the pin 13 of the linear connector (TX –... -
Page 32: Transceiver Controlled With A Pc
User’s manual EXPERT 1K-FA 14. TRANSCEIVER CONTROLLED WITH A PC If the transceiver is controlled with a PC using the CAT utility, the user should consider this situation for the link with the amplifier. 14.1 ICOM CI-V INTERFACE ICOM DB15 F... -
Page 33: Rs232 Interface
User’s manual EXPERT 1K-FA 14.2 RS232 INTERFACE KENWOOD OR YAESU RADIO CONNECTOR RS232 RX 232 TX 232 RS232 PC CONNECTOR DB15 M This type of link is the same both for Kenwood and Yaesu On the other end of the cable it is necessary to link only GND and RX 232. -
Page 34: Ttl Yaesu Interface
User’s manual EXPERT 1K-FA 14.4 5V TTL YAESU INTERFACE YAESU RADIO CONNECTOR RX TTL TX TTL TTL INTERFACE DB15 M The links on the linear connector side are the same. On the other end of the cable it is necessary to link only GND and RX TTL. -
Page 35: Use Of The Rs-232 Port
PC with the supplied cable. On the same website there is, for programmer use, a protocol specification that permits creation of a proper software application. NOTE: SPE doesn't take any responsibility for these applications. Pag. 35 of 42... -
Page 36: Maintenance
EXPERT 1K-FA 16. MAINTENANCE The Expert 1K-FA linear amplifier doesn’t need internal maintenance because it has a cover without ventilation holes. No tube-type EHT is used so the high voltages present in tube amplifiers, which sometimes attract dirt, are not present. -
Page 37: Characteristics / Specifications
User’s manual EXPERT 1K-FA 17. CHARACTERISTICS / SPECIFICATIONS - The smallest in the world Built-in Power supply and Automatic Antenna Tuner. Dimension: w 28, h 14, d 32 cm. (connectors included). Weight: approx. 20 Kg (18,5 Kg typ.). - The most technologically advanced in the world Two CPUs are used, one of which is dedicated to the transceiver interface requirements (CAT). - Page 38 User’s manual EXPERT 1K-FA The same protection is realized in two different ways: · Via hardware circuits (HW) to assure great speed. · Via the software (SW), to assure great accuracy. Thanks to the SW, transmit relay changeover is carried out with zero current at the contacts.
-
Page 39: Table
User’s manual EXPERT 1K-FA 18. TABLE BAND TABLE, SUB-BAND, CENTRAL FREQUENCY SUB-BAND [ 0] 1785 [ 1] 1795 [ 2] 1805 [ 3] 1815 [ 4] 1825 [ 5] 1835 [ 6] 1845 [ 7] 1855 [ 8] 1865 [ 9] 1875... -
Page 40: Warranty
SPE warrants to the original purchaser that this product shall be free from defects or workmanship. SPE warrants for two (2) years from the date of original purchaser that will provide free of charge all parts and labor necessary to correct defects in material or workmanship. - Page 41 User’s manual EXPERT 1K-FA Notes: Pag. 41 of 42...
- Page 42 User’s manual EXPERT 1K-FA s.r.l. Via di Montevede, 33 00152 Rome (Italy) Tel. +390658209429 Fax. +390658209647 E-mail: info@linear-amplifier.com Website: http://www.linear-amplifier.com Pag. 42 of 42 Ver. 1.0 Copyright © 2006 S.P.E. srl All rights reserved...
