USER'S MANUAL
The FCC Wants You to Know
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Your modulator might cause TV or radio interference even when is operating properly. To determine whether
your modulator is causing the interference, turn it off. If the interference goes away, your modulator is causing
it.
Try to eliminate the interference by :
• moving your RF Modulator away from the receiver
• connecting your RF Modulator to an outlet that is on a different electrical circuit from the receiver
• contacting your local store for help
If you cannot eliminate the interference, the FCC requires that you stop using your RF Modulator. Changes or
modifications not expressly approved by the party responsible for compliance could void the user's FCC
authorization to operate this equipment.
You can use your CRF940 Audio/Video Selector to connect up to four audio/video components (such as
direct-to-home satellite systems, VCRs, DVD players, laserdisc players, cable boxes, or video game system)
to a single TV. You can connect S-video cables directly to the selector for optimum picture quality.
Depending upon your audio/video system setup, you might also need additional cables of adapters to connect
all of the desired components.
Use RCA cables to connect audio and video devices, and S-video cables to connect video devices to the
selector.

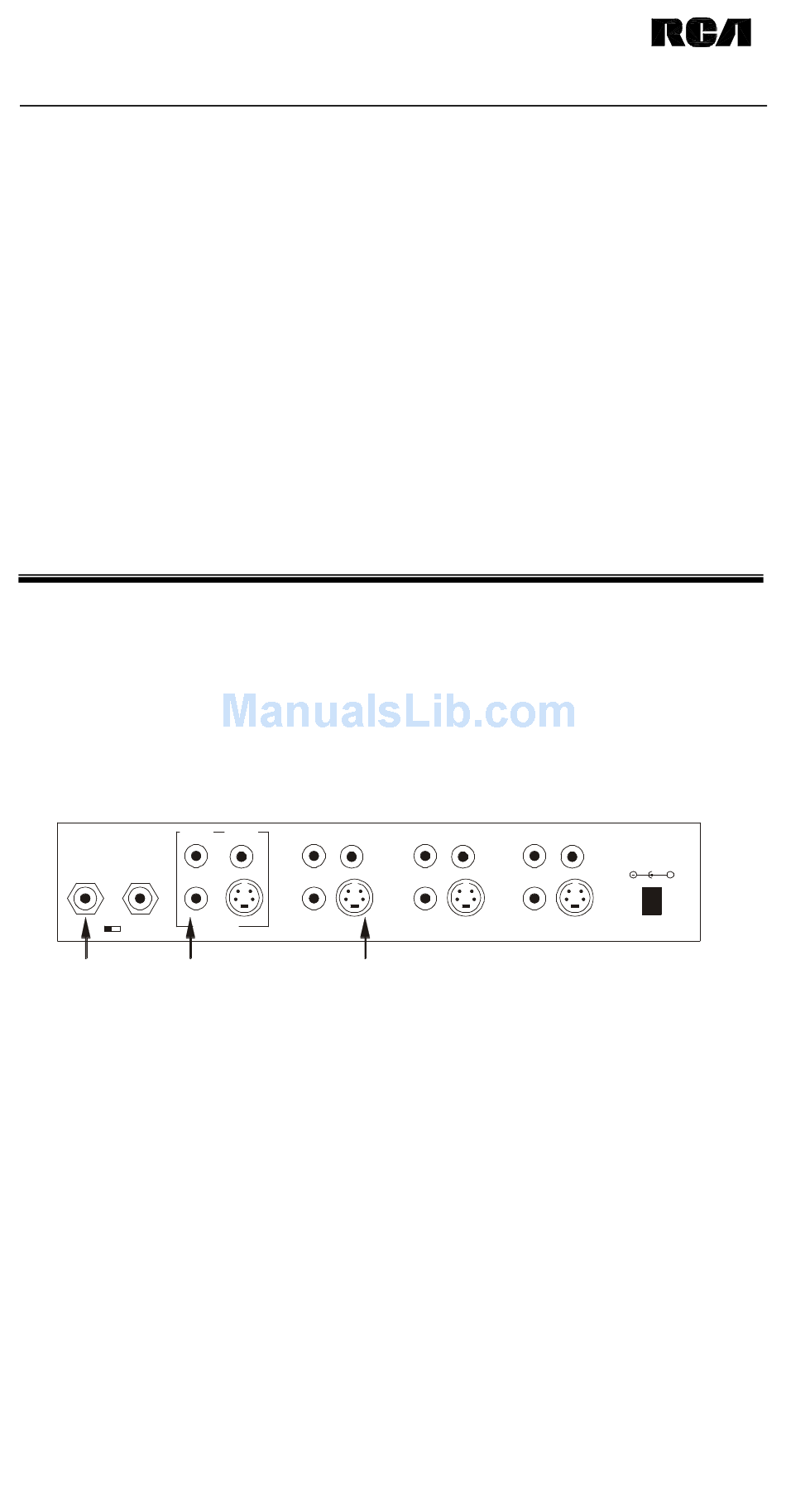

RF
TO TV
ANT IN
CH.
3 4
RF
OUTPUT
CONNECTOR
Note :
To receive video output from the OUT S-video Jack on the back of the selector, you must use an
S-video cable to connect a video source to one of the IN S-video jacks
PLACING THE SELECTOR
You can set the selector on just about any flat surface. For the best results, do not place it on top of a TV or
other electrical appliance.
Important : If you place the selector on top of your TV, electromagnetic interference from the TV might distort
the sound from any devices connected to the selector. If this happens, move the selector away from the TV.
AUDIO
VIDEO
AUDIO
L
R
OUTPUT
INPUT 1
RCA
CONNECTOR
VIDEO
AUDIO
VIDEO
L
S
S
R
INPUT 2
S-VIDEO
MODEL: CRF940
AUDIO
VIDEO
9VDC
L
100mA
S
R
INPUT 3
+
CRF940_01
