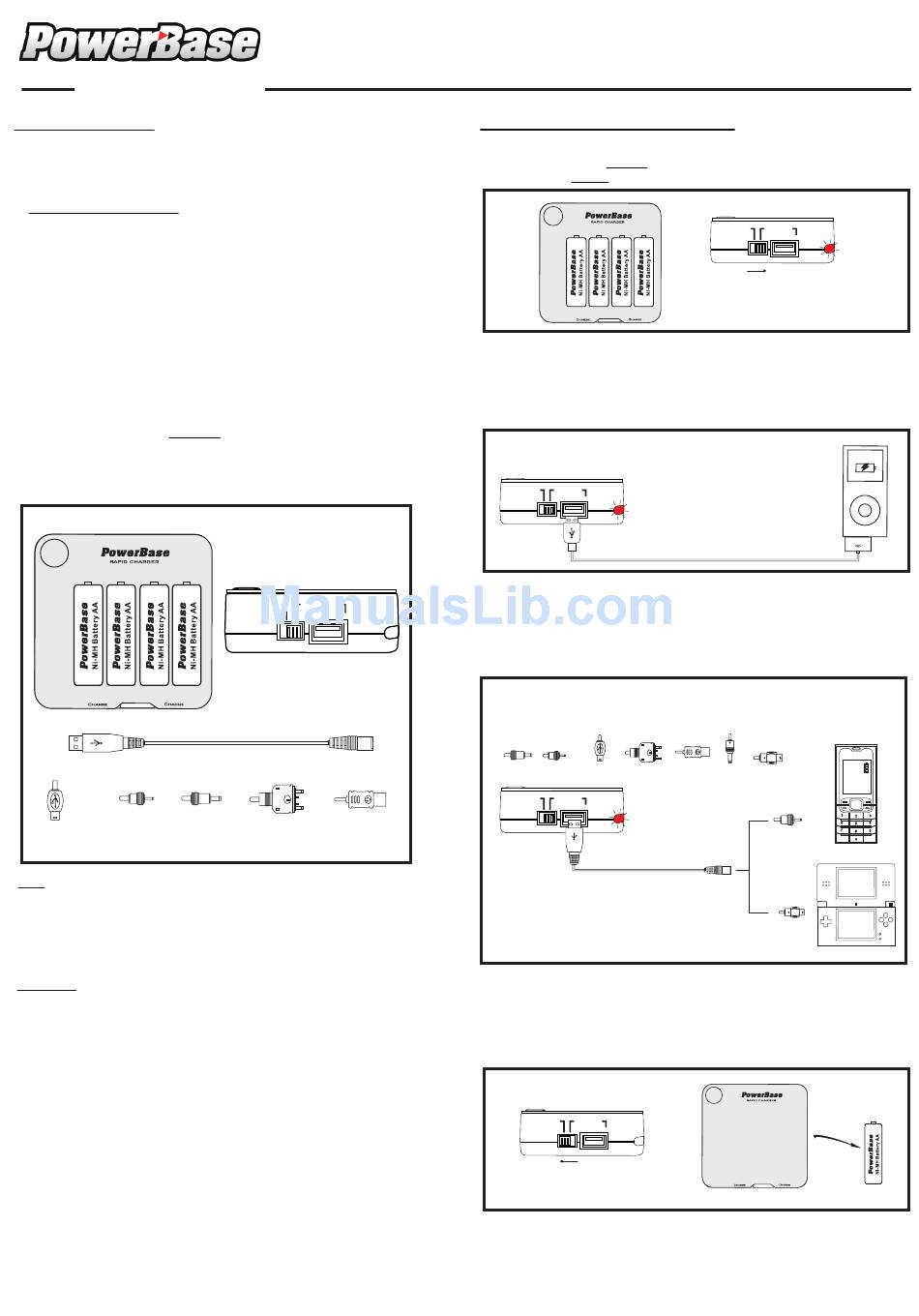

PowerBase C-514 User Manual page 2

Multi Functional Charger
OUTPUT FUNCTION
Output Features of POWERBASE C-514 Multi functional Charger.
- Portable Emergency power back up for peripheral Equipment.
- USB Output for various devices.
- Suitable for equipment :
- iPhone & iPod series
- Mobile Phones (Nokia. Motorola, Sony Ericsson etc)
- MP3 / MP4 Player
- Game Players ( PSP, NDS )
- With one output channel (USB plug).
- 4 pcs of AA / AAA Ni-MH batteries are required for any output
function through the C-514 output channel.
- Small in size and easy to carry and use.
- After the AA / AAA batteries are fully charged, can also remove
the batteries from the C-514 and place for other application.
- Continuously output supply : More than one equipment unit can
acquire power from C-514
- Alternative Power source for emergency use:
If the fully charged AA/AAA batteries in C-514 have consumed most
of its remaining capacity, and min. recharge time would not be allowed
at that moment, 4 pcs of Alkaline batteries can be placed inside. The
C-514 in order to provide output power to various units.
(1) Output function with accessories.
NOKIA NOKIA
MOTOROLA
N71; 9300; 3210;8310;
Mini USB; V3;V3i
N80 8250;3200
Note: Never put Ni-MH and Ni-Cd batteries together in the POWERBASE
C-514 Multi Function Output Charger.
CAUTION
1. For best result of Output, please make sure the batteries in
the charger are fully charged.
2. Do not put difference types of battery (Ni-Cd/ Alkaline/ Ni-MH
in difference capacity) mixed together during the stage of
Charging / Output.
3. When not using the charger or batteries, please take out the
batteries from the charger.
CHARGER OUTPUT
(USB)
SONY Ericisson SAMSUNG
W800/750 D528; D808
D838
OUTPUT PROCESS PROCEDURES
1 : Place 4 pieces of Fully Charged AA/AAA batteries into the C-514 charger.
Switch the button to Output position, LED red light will turn on ,
show that the Output function is ready to start.
2 : Output Function (1)
Connect the USB cable into "Output" position & plug to iPod or iPhone series.
The charging process will start automatically.
CHARGER OUTPUT
(USB)
3 : Output Function (2)
Connect the USB cable into "Output" position with the selected suitable plug
to various devices such as mobile phone, game players or mp3/mp4 player.
The charging will start automatically.
For Mobile : Nokia , Motorola , Sony-Ericsson , Samsung
Game player : NDS , PSP
NOKIA
NOKIA Sony Ericsson
MOTOROLA
N71; 9300;N80
3210;8310; W800/750
Mini USB; V3;V3i
8250;3200
CHARGER OUTPUT
(USB)
4) After fully charged the selected devices, unplug the cables and switch the
button back to the "Charger" position. RED LED light will turn off
immediately and the output process will be stopped. For safety reason,
please take off the batteries from the C-514 charger after used.
CHARGER OUTPUT (USB)
Power Output "OFF"
2
C-514
CHARGER OUTPUT
(USB)
Power Output "ON"
SAMSUNG
SONY
GAMEBOY NDS
D528; D808
PSP
D838
1 2
4 5
7
8
0
GAMEBOY NDS
Take out the batteries.
3
6
9
