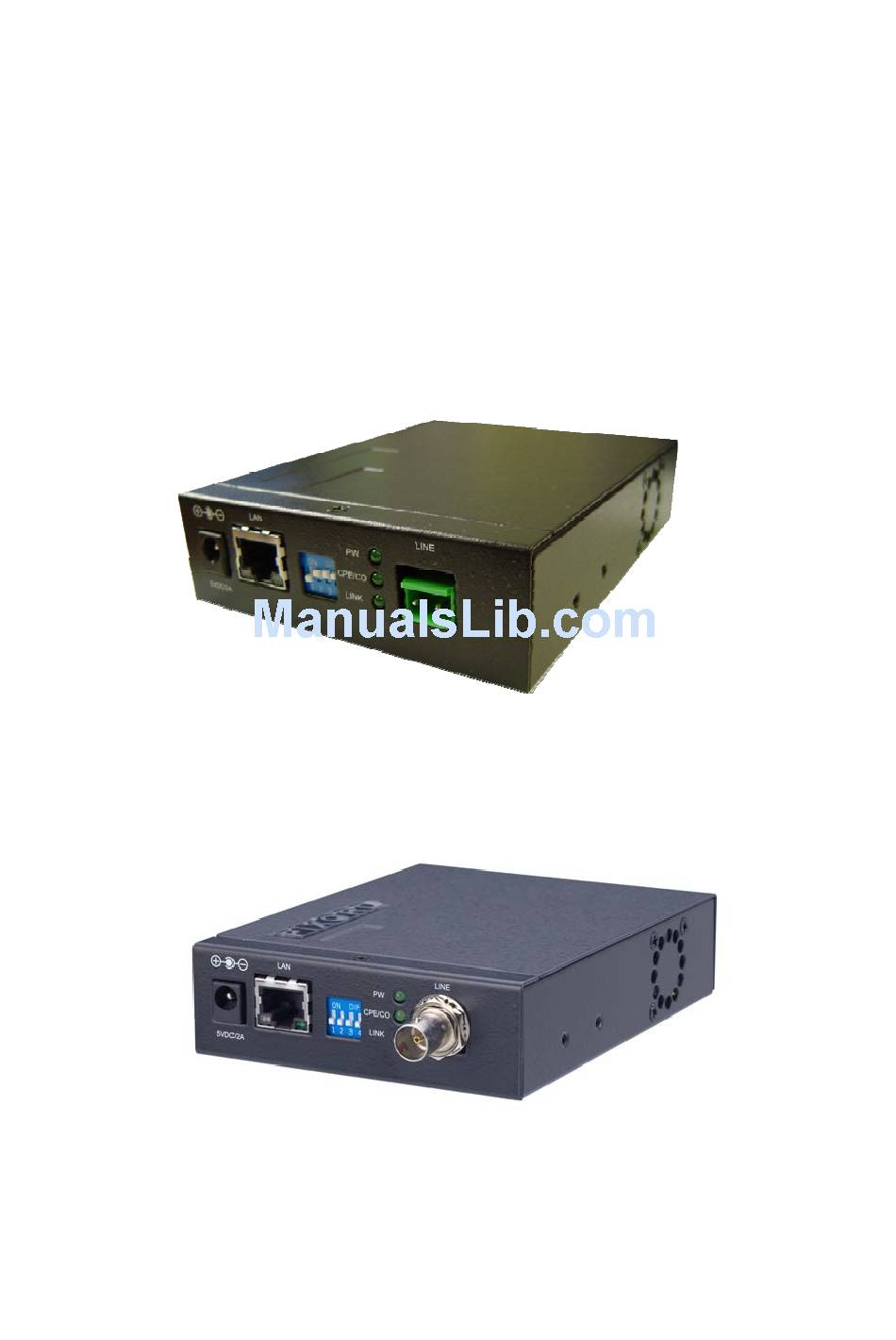

- Page 1 Media Converter (PMC) module User’s Manual PMC100-1 / PMC100-2 Version: 1.0 Date: 11/25/2008...
-
Page 2: Table Of Contents
1.4 Connectors and Switches ..............4 1.5 Product Configuration ................5 2 Introduction 3 Unique Features 4 Application Case Examples 4.1 Remote Transmission Solution (PMC100-1)........8 4.2 Upgrade Analog Camera to IP Camera (PMC 100-2) ......8 5 Integrating Other Products with PMC 6 Q&A Appendix... -
Page 3: Overview
PMC Modules User’s Manual Overview 1.1 What You Should Get Please check the module before using it. PMC100-1(Twist Pair)/ PMC100-2 (Coaxial cable) Module--------------------------------------x 1 Power Adapter (DC 5V 2A) -----------x 1 Device Mounting-------------------------x 2 Φ2.9’ screw -------------------------------x 4 Φ4.8’ screw -------------------------------x 2... -
Page 4: External Architecture
PMC Modules User’s Manual 1.2 External Architecture PMC100-1/ PMC100-2 Front panel Power Phone LAN Port DIP switch Port RJ11/ jack (RJ-45) Right side panel Fan (Exhaust) Back panel Ground 1.3 Size & Weight PMC100-1/ PMC100-2 Dimension: 126 (W) x 95 (D) x 30(H) (mm) Weight: Approx 311±... -
Page 5: Connectors And Switches
PMC Modules User’s Manual 1.4 Connectors and Switches (1) Power Input PMC100-1/ PMC100-2 single 5V - 1A adapter CAUTION! Be sure to follow the specified power requirement to avoid damaging the equipment. (2) Dip Switch Settings Function Switch # Position... -
Page 6: Product Configuration
Power Ideal Locations Interface Special Feature Number Supply of Application Vast distances / High Long span of bridges / RJ-11 / 2-Wire PMC100-1 bandwidth roads Terminal Block applications / remotes areas Max. 4.2W 5V DC Upgrades analog Airport / neighborhood... -
Page 7: Introduction
User’s Manual Introduction The PMC (Media Converter, hereinafter called PMC100-1/ PMC100-2) modules which include models that utilize new built-in IP camera device or are capable of upgrading analog camera into IP camera, are ideal devices for centralized surveillance and control. -
Page 8: Unique Features
PMC Modules User’s Manual Unique Features No new wiring network required: Uses existing phone lines /coaxial cables Fast Upgrade: Upgrade analog camera to IP camera. Long distance transmission: Up to 100/60 Mbps transition bandwidth within 300m without interference. Support multi-cameras at the same time: Support Twenty-five cameras at the same time within 200m in sufficient bandwidth. -
Page 9: Application Case Examples
PMC Modules User’s Manual Application Case Examples 4.1 Remote Transmission Solution (PMC100-1) Video transmission distance up to 1500m Transmit bandwidth: 100Mbps , live video long distance transmission without adding extra Hub/Switch PMC100-1 PMC100-1 Twist pair Remote Control 4.2 Upgrade Analog Camera to IP Camera (PMC100-2) >... - Page 10 PMC Modules User’s Manual This case shows user installing a new surveillance IP camera using the existing coaxial cable which is connected and used by an analog camera. Therefore, no fresh wiring is involved and cost down is achieved As user wants to add a new IP camera in addition to the existed analog camera, it is therefore necessary to use a coaxial splitter device.
-
Page 11: Integrating Other Products With Pmc
PMC Modules User’s Manual Integrating Other Products with PMC Rev.En 1.0... - Page 12 PMC Modules User’s Manual 6 Q&A Q1. How to select CO side and CPE side mode PMC? A1. Referring to the figure below, the PMC B module (nearest to IP camera) is the CO side and PMC A module (nearest to control center) is the CPE side for valid operation bandwidth. RJ45 RJ45 PMC B...
-
Page 13: Appendix
PMC Modules User’s Manual Appendix PMC100-1 / PMC100-2 Specifications Model Name PMC100-1 PMC100-2 Dimension 126(W)*95(D)*30(H)(mm) 126(W)*95(D)*30(H)(mm) Weight 311± 5g 311± 5g Green-PW for power LED Indicators Green-CPE/CO Green-Link for data link Power Consumption Max. 4.2W 5V 2A DC Max. 4.2W 5V 2A DC...
