Danpex Fast Ethernet Converter User Manual

100Base-FX <> 100Base-TX
Fast Ethernet Converter
User's Manual
1. Overview
IEEE 802.3u 100Mbps Fast Ethernet supports two types media for network connection such as
100Base-TX and 100Base-FX. The media converter is used to convert one type media signal to
other type equivalent that allows two type segments connect easily and inexpensively.
converter can be used as a standalone unit or as a slide-in module to the 19" converter rack (up
to 10 units) for use at a central wiring closet.

2. Model Description

Model Connector Type
CFM3000 Multi-Mode 1310nm Duplex-SC ↔ RJ-45
CFM3200 Multi-Mode 1310nm Duplex-ST ↔ RJ-45
CFM3800C20/C40/C60 Single-Mode 1310nm Duplex-SC ↔ RJ-45
CFM3800C80/C100 Single-Mode 1550nm Duplex-SC ↔ RJ-45
*: Models with MT-RJ or VF-45 fiber connector are available only upon request!
3. Checklist
Before you start installing the Converter, verify that the package contains the following:
The TP-Fiber Converter
—
AC-DC Power Adapter
—
This User's Manual
—
Please notify your sales representative immediately if any of the aforementioned items is missing
or damaged.

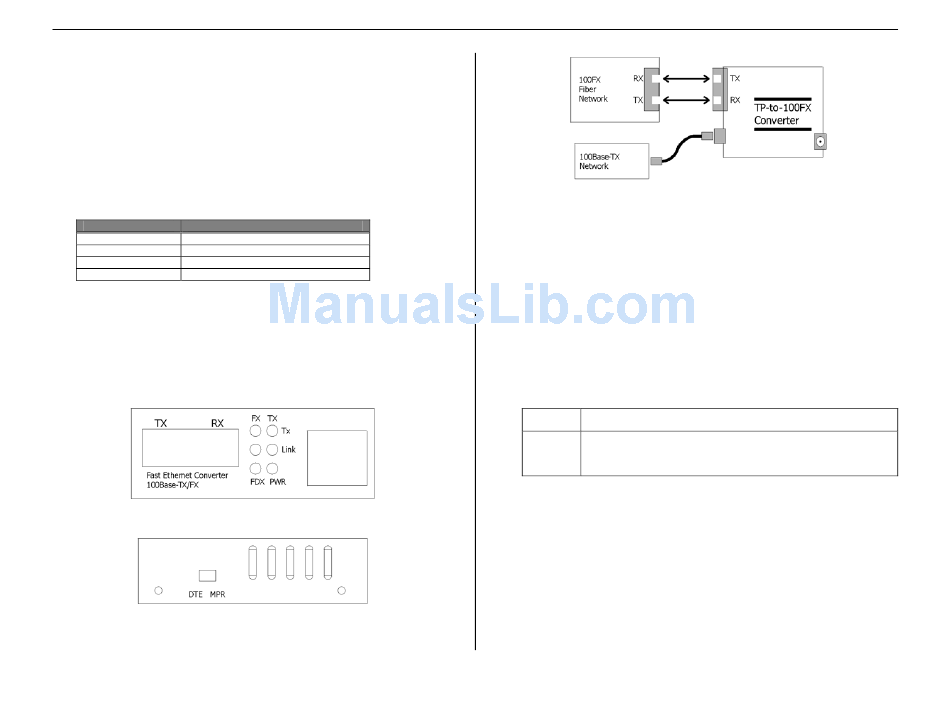

Fig. 1 100Mbps TP-to-Fiber Converter Front Panel
Fig. 2 100Mbps TP-to-Fiber Converter Side Panel
(620-0062-000)
The

4. Installing the Converter

For as a standalone unit:
⇒ Verify the AC-DC adapter conforms to your country AC power requirement and insert the
power plug
⇒
Connect the media cable for network connection
For as a slide-in unit:
⇒ The slide-in Media Converter and Converter Rack should be supplied only from the same
source, both Media Converter and Rack are built to match each other at dimensions, DC
jack, DC receptacle and power safety
⇒ Turn off the 19" converter rack power
⇒ Ensure that there is no activity in the network
⇒ Locate +5V DC power jack on converter back, carefully slide in and plug to 19" rack +5V DC
power receptacle
⇒ Connect the media cable for network connection
⇒ Turn on the converter rack power, the Power LED will light up
Fiber Port
TP Port
Note:
a. Use the straight-through cable.
Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6
b. MPR (Default)
DTE
(DTE pin-outs is crossover on board already)
Configure the MPR-DTE slide switch on the side panel for cable connection to hub or
Network Interface Card (NIC)
c. Be sure the proper wiring and the Link LED status
Fig. 3 Basic Network Connection
Attach the fiber cable. The Tx, Rx fiber cable must be paired at both
ends.
Attach TP Cat. 5 cable to TP port
MPR (Default) : To a Switch or Hub
DTE : To a workstation or Network Interface Card (NIC)
"DTE"/"MPR" slide switch is on the side panel
: To a Switch or Hub
: To a workstation or NIC
1
