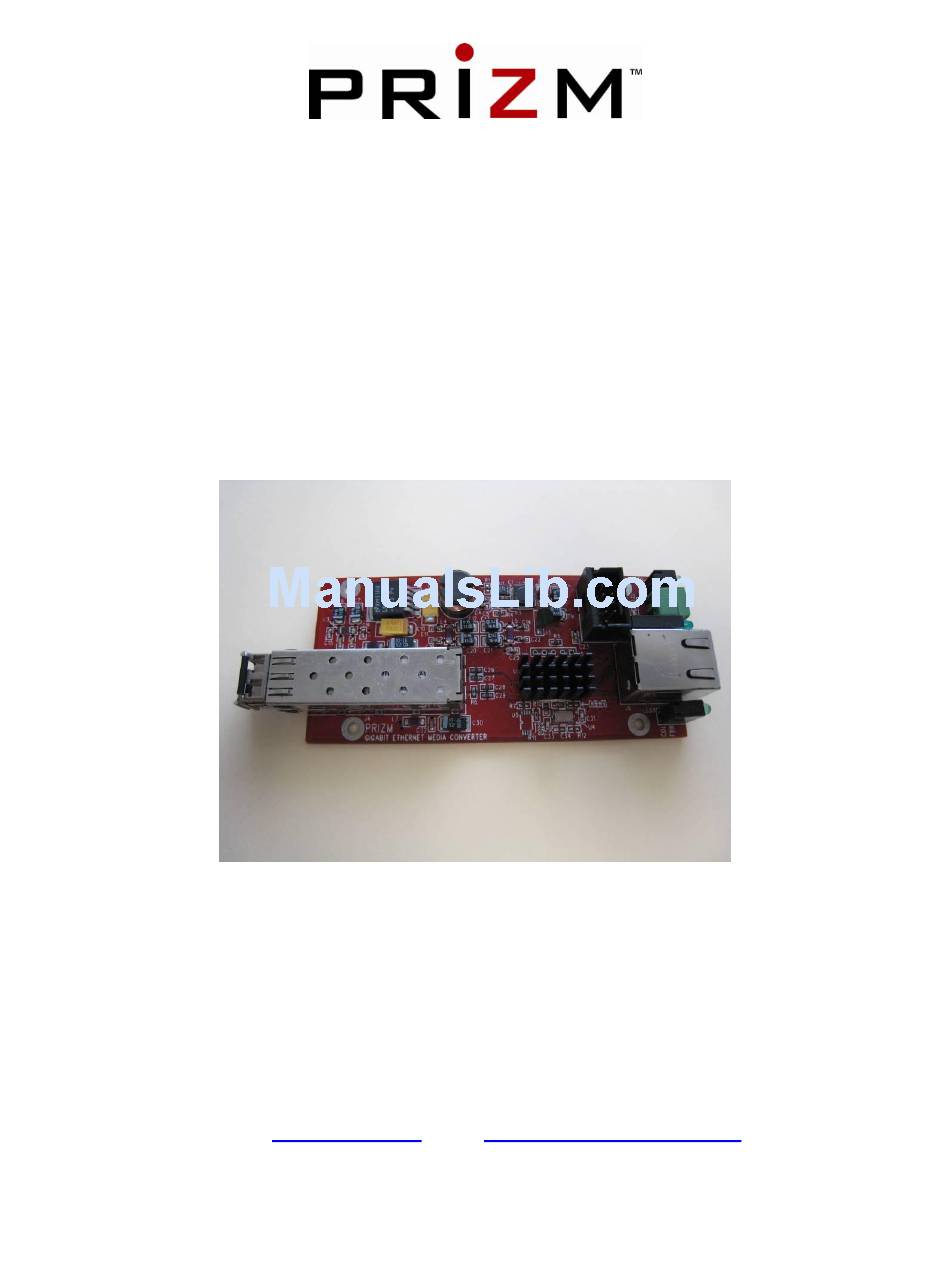

Single Port Gigabit Ethernet
Media Converter Board
(P/N 201350-xxx)
User's Manual
And
Troubleshooting Guide
August 12, 2009
Rev C
Moog Components Group
Springfield Operations
750 West Sproul Road
Springfield, PA 19064
E-Mail:
mcg@moog.com
URL:
www.moog.com/components
Tel: 610-328-4000 Fax 610-605-6216
24/7 Technical Customer Support Hotline: 610-605-6101
Advertisement
Table of Contents
Related Manuals for PRIZM 201350 Series
Summary of Contents for PRIZM 201350 Series
-
Page 1: Troubleshooting Guide
Single Port Gigabit Ethernet Media Converter Board (P/N 201350-xxx) User’s Manual Troubleshooting Guide August 12, 2009 Rev C Moog Components Group Springfield Operations 750 West Sproul Road Springfield, PA 19064 E-Mail: mcg@moog.com URL: www.moog.com/components Tel: 610-328-4000 Fax 610-605-6216 24/7 Technical Customer Support Hotline: 610-605-6101... - Page 2 Moog Components Group Single Port GBE Media Converter Manual August 12, 2009 MANUAL REVISION HISTORY REVISION DATE REASON FOR NUMBER REVISION 10/10/07 ORIGINAL 02/17/09 Updated contact information to reflect Moog Components Group 08/12/09 Corrected RJ45 pinout TABLE OF CONTENTS SINGLE PORT GIGABIT ETHERNET BOARD, P/N: 201350-XXX ........3 : ............
- Page 3 August 12, 2009 1 Single Port Gigabit Ethernet Board, P/N: 201350-xxx The Prizm Single Port Gigabit Ethernet Media Converter board provides a fiber optic link to remote a Gigabit Ethernet. An industry standard pluggable small-form-factor (SFP) Gigabit Ethernet (GBE) fiber optic module is employed to allow easy customization of the fiber optic link characteristics.
- Page 4 Moog Components Group Single Port GBE Media Converter Manual August 12, 2009 1.3 Single Port Gigabit Ethernet Board Operation: The Gigabit Ethernet board has two main electrical connectors: the Ethernet RJ-45 and the 2-pin Phoenix DC power connector. The RJ-45 connector (J6) is located at the lower right side of the board and is a standard 8- pin Ethernet connector with an integrated transformer.
- Page 5 6 LINK10 DUPLEX/COLLISION o o 8 NO CONNECT Note: these pins are not typically available to the user, contact Prizm 2-pin Phoenix connector for DC power entry DC Power 2-pin Phoenix Connector GROUND +VDC INPUT No connector on the board SFP optical module 5-pin header for U3 programming –...
- Page 6 Moog Components Group Single Port GBE Media Converter Manual August 12, 2009 8-pin RJ-45 connector/transformer for Ethernet Left o o o o o o o o Right Gigabit Ethernet RJ-45 Connector Pin # 8 7 6 5 4 3 2 1 Pin # 1000Mbps Reset chip at this location...
- Page 7 Moog Components Group Single Port GBE Media Converter Manual August 12, 2009 If both the “PWR” LED and the “1.2/3.3 VDC” LED is out: Check for continuity of PTC fuse F1 with an ohmmeter. Replace PTC fuse if open. If only the “1.2/3.3 VDC” LED is out: Verify DC voltage is present at the source Replace the board with a spare, nothing repairable.
