Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
User manual
AD7050W

Advertisement

Table of Contents
loading

Related Manuals for Philips AD7050W

Summary of Contents for Philips AD7050W

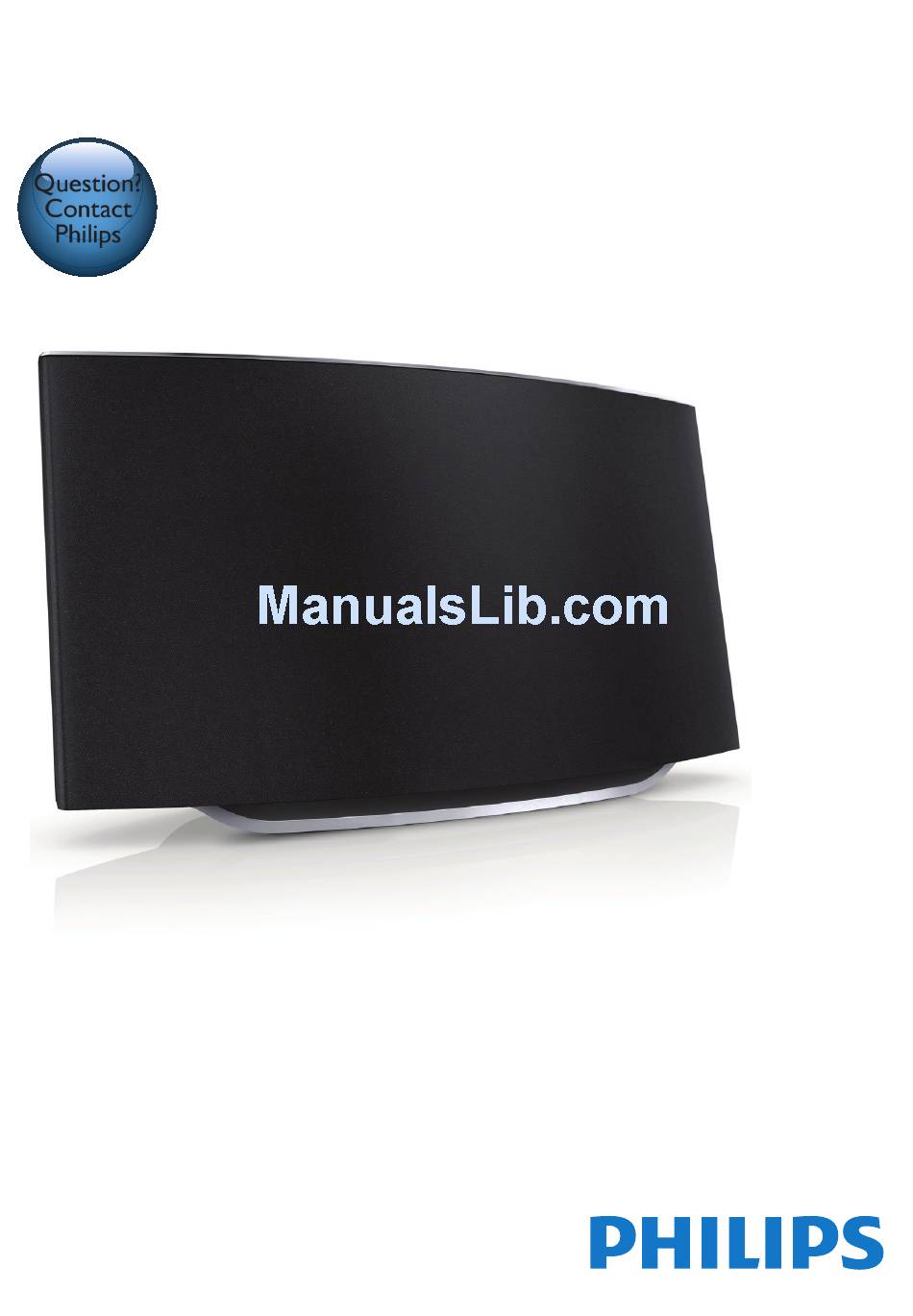

  • Page 1 Always there to help you Register your product and get support at www.philips.com/welcome AD7050W Question? Contact Philips User manual...

  • Page 3: Table Of Contents

    What else you need Overview of the main unit Get started to use AirPlay 3 Prepare Connect power Turn AD7050W on 4 Connect to your home Wi-Fi network for AirPlay Method 1: Use iOS5 Wi-Fi network login sharing Method 2: Connect to a WPS router...

  • Page 4: Important

    1 Important h Do not remove the casing of this product. i Do not expose the product to dripping / splashing water, rain or high humidity. j Keep this product away from direct sunlight, naked flames or heat. Safety k Do not install near any heat sources such as radiators, heat Information for Europe: registers, stoves, or other electrical...

  • Page 5: Notice

    WOOX Innovations may void the user’s batteries and old equipment. authority to operate the equipment. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V. ”...
  • Page 6 CLASS II apparatus with double insulation, and no protective earth provided. Note • The type plate is located on the bottom of the apparatus.

  • Page 7: Your Entertainment System

    Philips offers, register your product at www.philips.com/welcome. What's in the box If you contact Philips, you will be asked for the model and serial number of Check and identify the contents this apparatus. The model number and...

  • Page 8: Overview Of The Main Unit

    • Or install the latest version of iTunes (iTunes 10 or later) on your PC/Mac. Connect power to AD7050W, then turn it on (see 'Prepare' on page 7). Connect AD7050W to your existing home Wi-Fi network (see 'Connect to your...

  • Page 9: Prepare

    DC IN socket on the back of the • unit. • the wall power socket. Turn AD7050W on Press on the back to turn the unit on. Wait for successful boot-up of the unit. » The boot-up takes up to 25 seconds.

  • Page 10: Connect To Your Home Wi-Fi Network For Airplay

    Fi network for iPhone/iPad or a Wi-Fi on page 10). enabled PC/Mac. AirPlay Before connection of AD7050W to you home Wi-Fi network, make sure that: a your Wi-Fi router is powered on and working properly. b AD7050W has been powered on and booted up successfully (see 'Turn AD7050W on' on page 7).

  • Page 11: Method 2: Connect To A Wps Router

    Method 2: Connect to a WPS router Note • Before you press any button on AD7050W, make sure that AD7050W has been booted up successfully (see 'Turn AD7050W on' on page 7). Press WIFI SETUP on the back of Press the WPS button on your home Wi-Fi AD7050W.

  • Page 12: Method 3: Connect To A Non-Wps Wi-Fi Router

    Wi-Fi network' on the user manuals of the specific routers for details. • If the Wi-Fi SETUP indicator on AD7050W does not page 11). turn solid green, it means that the Wi-Fi connection Open the built-in web page of AD7050W has failed.
  • Page 13 Explorer) on your Wi-Fi enabled device. • If you fail to enter Assisted Wi-Fi Setup mode, power off AD7050W and power on it, then try again after Open the configuration page of your successful boot-up. • home Wi-Fi router.
  • Page 14 » of your iPod touch/iPhone/iPad. • If Philips AD7050W is not in the list, try to scan the available Wi-Fi networks again. Option 2: Use your Wi-Fi enabled PC/Mac Note •...
  • Page 15 Click -> Preferences. • » The Bookmarks menu is displayed. If Philips AD7050W is not in the list, try to scan the available Wi-Fi networks again. Open the built-in web page of AD7050W Launch Apple Safari browser or any other Internet browser on your Wi-Fi enabled device.
  • Page 16 Bonjour pull-down list shown at the bookmarks bar. » The AD7050W configuration web page is displayed. Philips Fidelio device name Rename your AD7050W in the box behind Philips Fidelio device name. Click or tap Rename. Change the internal Wi-Fi settings of Configure the Wi-Fi settings AD7050W behind Select Option.
  • Page 17 Enter the password for your Wi-Fi network on the red box, and then click or tap Apply. Select Option Select your Wi-Fi network from the list. Click or tap OK. Your Wi-Fi Network...
  • Page 18 • If you like, you can change the name of your AD7050W in Advanced settings -> AirPlay Device Name on the AD7050W configuration web page. This is helpful when you have multiple Philips AirPlay-enabled devices in your house and you need to distinguish between them.
  • Page 19 Wait until successful Wi-Fi connection to your home Wi-Fi network. Select your network name (SSID) from the list of available wireless networks. Enter the network key if required.

  • Page 20: Play

    Note • Make sure that your iTunes host device is connected to the same Wi-Fi network as AD7050W. Your iTunes device can be an iPod touch/iPhone/iPad installed with iOS 4.3 (or later) or a Wi-Fi enabled PC/Mac installed with iTunes 10 (or later).
  • Page 21 Philips AD7050W xxx Note Philips AD7050W xxx • If you fail to hear music after successful setup, do one of the following on your iPod touch/iPhone/iPad: • (1) Disconnect and then re-connect to the same Wi-Fi router again; • (2) Close all applications running at the background;...

  • Page 22: Use Advanced Sound Settings

    Philips SoundStudio application from Apple App Store. It is a free application from Philips. Select Philips AD7050W XXXX (or user If your iTunes host device is a customized name) from the AirPlay list.

  • Page 23: Play From An External Device

    • iPad 2 Start music play on the external audio • iPad player. • iPhone 4S » You can hear music from AD7050W. • iPhone 4 • iPhone 3GS • iPhone 3G • iPhone •...

  • Page 24: Update Firmware

    To use an Internet browser other than Apple Safari on your PC/Mac, remember to go to the Wi-Fi router configuration page and write down the IP address of your AD7050W. See the user manual of your Wi-Fi router for how to find the IP addresses of devices Note connected to the Wi-Fi router.
  • Page 25 • After successful firmware update, if there is any problem with the Wi-Fi connection, restart AD7050W, and then try to set up the Wi-Fi network for AD7050W again (see 'Connect to your home Wi-Fi network for AirPlay' on page 8).

  • Page 26: Product Information

    7 Product General information information AC power Input: 100 ~ 240 V, 50/60 PHILIPS Hz 2A SWITCHING POWER Output: 18 SUPPLY MODEL: Note 2.5 A EFS05001800250 CE • Product information is subject to change without prior Operation Power 40 W notice.
  • Page 27 (see 'Method 3: Connect to a requesting service. If the problem remains non-WPS Wi-Fi router' on page 10). unsolved, go to the Philips web site (www. • Enable SSID broadcast on the Wi-Fi router. philips.com/welcome). When you contact Philips, •...
  • Page 28 • Turn off other Wi-Fi routers. No AirPlay icon on my iTunes host device • Make sure that AD7050W is already connected to your home Wi-Fi network. • Before you open iTunes, make sure that you have enabled Bonjour service in your PC.
  • Page 30 WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. AD7050W_12_UM_V3.0...
