O W N E R ' S M A N U A L

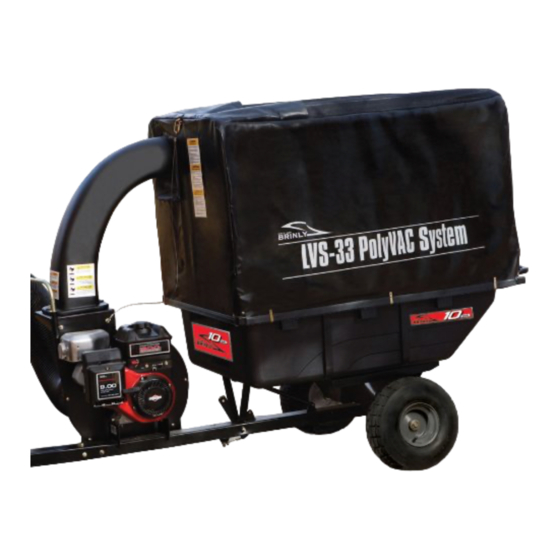

PolyVAC System
MODEL:
LVS-33 BH
LVS-33 BHK
Assembly
Installation

Repair Parts

For use with
Lawn/Garden Tractors
NOT recommended for zero turn Radius (ZTR) mowers.
Congratulations on your purchase! Your Lawn-Vac will require significant assembly time. Depending
on your skills; you should plan on 4 to 8 hours for assembly. Please call us at 877-728-8224 if you have
questions regarding the assembly or operation of your Lawn-Vac.
Note: Warranty registration required! Please make sure you send in the warranty card with required
information and record the serial numbers below.
Serial Number:
Engine Number:
For the latest product updates and setup tips:
Visit us on the web!
www.brinly.com
TM
Important: This manual contains information for the safety of
persons and property. Read it carefully before assembly and
LVS-33BH PolyVAC System fits the following
Mower Deck sizes of current tractor models:
• John Deere 42'', 48'' & 54'' • MTD 38'', 42'' & 46''
• John Deere ''X'' Series - 42'', 48'' , 54'' & 62''
• Murray 40'', 42'' & 46''
• Craftsman 42'', 46",48'' & 50'' • Bolens 38'' & 42''
• Cub Cadet 38'', 42'' 44''50"
• Husqvarna 46'', 48" & 54"
operation of the equipment!
• Troy-Bilt 42'', 42''
• Stanley 42'' & 46''

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PolyVAC System LVS-33 BH and is the answer not in the manual?

Questions and answers

Billy cupp
April 14, 2025

Need a B-6465

0
1 comments:
Mr. Anderson
April 14, 2025

Part number B-6465 is not listed in the provided parts list for the Brinly PolyVAC System LVS-33 BH. Therefore, its availability cannot be determined based on the given information.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Brinly PolyVAC System LVS-33 BH

Summary of Contents for Brinly PolyVAC System LVS-33 BH

  • Page 1: Repair Parts

    Serial Number: Engine Number: For the latest product updates and setup tips: Visit us on the web! Important: This manual contains information for the safety of persons and property. Read it carefully before assembly and www.brinly.com operation of the equipment! L-1771-D...

  • Page 2: Table Of Contents

    CONGRATULATIONS on your new Brinly-Hardy Lawn Vac System! Your Lawn Vac has been designed, engineered See tractor equipment owner's manual for safe operation of and manufactured to give you the best possible the equipment dependablility and performance. STOP ENGINE when servicing, cleaning, or installing the hose or chute.
  • Page 3 TOOLS REQUIRED FOR ASSEMBLY: * 1/2” wrench (2), * 5/16" Wrench * 7/16" wrench (2) * 9/16" wrench (2), * Marker * 3/4" wrench (2) * Pliers, * Scissors, * Pencils * Flat Head Screwdriver * Jig Saw or Key Hole Saw * Drill, * 1/4", 11/32"...
  • Page 4 Support Plate INSTALLA TION QUESTIONS? MISSING PARTS? To Order Parts Call: REPLACEMENT PARTS? 877-728-8224 ST T S S T TO O P Visit us on the web: www.brinly.com Please call our Customer Service Department Toll-Free at 877.728.8224 wcustomerservice @brinly.com L-1771-D...
  • Page 5 EXPLODED REFERENCE Serial Number L-1771-D...
  • Page 6 Parts Reference To Order Parts Call: Canopy Parts List 877-728-8224 PART NO. REF. DESCRIPTION QTY. Visit us on the web: www.brinly.com 2M1032P Hex Bolt, 5/16" x 2" B-4785 1/4" Nylon Lock Nut 2M0824P 1/4" x 1-1/2", Hex Head Bolt L-1771 Instructions 30M1000P 5/16", Hex Nut...
  • Page 7 L-1771-D...
  • Page 8 To Order Parts Call: 877-728-8224 Engine Parts List PART NO. REF. DESCRIPTION QTY. Visit us on the web: www.brinly.com 11M0812P 1/4" x 3/4", Carriage Bolt 11M0816P 1/4" x 1", Carriage Bolt 2M1024P 5/16" x 1-1/2", Hex Head Bolt 30M0800P 1/4" Hex Nut 45M0909P 1/4"...
  • Page 9 73 71 L-1771-D...
  • Page 10 Parts Reference To Order Parts Call: Hose Parts List 877-728-8224 PART NO. REF. DESCRIPTION QTY. Visit us on the web: www.brinly.com B-6463 Mower Deck Housing B-6465 Hose B-6492-F Warning Label B-6464-10 Mower Deck Bracket (Large) B-6479 Hose Clamp 8" B-6480 Bunji Cord 36"...
  • Page 11 Assemble Longitudal Supports & Step 1. Partially Install Axle Support to Bed Model BH Only Hardware Bag A 5/16" Lock Washer 5/16" Flat Washer 5/16" Hex Nut 5/16" x 1", Mach. Screw Qty. 6 Qty. 6 Qty. 6 Qty. 6 L-1771-D...
  • Page 12 Remove Wheels and Axle Step 2. Model BHK Only Remove Lock Bracket (No longer used) Remove Towbar Assembly (No longer used) Remove Axle Support Machine Screws from Bed Step 3. Model BHK Only LOOSEN, BUT DO NOT REMOVE L-1771-D...
  • Page 13 Step 4a. Install Longitudal Supports, Support Model BHK Only Plate & Gas Spring Bracket Install Spring Bracket Step 4b. BH & BHK Models Note: The LVS-33BHK does not use the Lock Bracket and Towbar that originally came with your cart. L-1771-D...

  • Page 14: Hardware

    Assemble Support Plate, Gas Spring Bracket and Lock Bracket to Bed Step 5. Hardware B 5/16" x 1", Mach. Screw Qty. 3 A.) Assemble gas spring bracket and new lock bracket. B.) Using the gas spring bracket as a guide, drill 11/32" hole. 5/16"...
  • Page 15 Assemble Towbar Step 6. 3/8" Hex Lock Nut Latch Spring Hardware Bag C Qty. 1 Qty. 1 3/8" x 3-1/2", Hex Bolt Qty. 1 1/2" x 1", Hex Bolt Qty. 1 1/2" Hex Nut Qty. 1 5/16" Lock Nut Qty. 5 5/16"...
  • Page 16 Install Towbar, Axles, & Wheels Step 7. Hardware Bag D 3/4" Retaining Ring 3/4" Mach. Bushing Qty. 4 Qty. 2 L-1771-D...
  • Page 17 Assemble Gas Spring Step 8. Hardware Bag D Stud Ball Qty. 2 Hex Lock Nut, 5/16" Qty. 2 L-1771-D...
  • Page 18 Install Engine Step 9. Hardware Bag D 5/16" x 1-1/2", Hex Bolt Qty. 4 5/16" Flat Washer Qty. 4 5/16" Nylon Lock Nut Qty. 4 ENGINE ORIENTATION Assemble Chute Step 10. Hardware Bag E Flat Washer, 1/4" 1/4" Nylon Lock Nut 5/8"...
  • Page 19 Install Canopy Front Bracket Step 11. Hardware Bag E 1/4" Nylon Lock Nut 1/4" x 1-1/2", Hex Bolt 1/4" Flat Washer Qty. 4 Qty. 4 Qty. 8 Install Canopy Side Brackets & Front End Tube Step 12. Hardware Bag D 5/16"...
  • Page 20 Install Rear End Tube and Handle Step 13. Hardware Bag D 5/16" Lock Nut Qty. 4 5/16" x 1-1/2", Hex Bolt Qty. 2 5/16" x 2-1/2", Hex Bolt Qty. 2 Install Top Tubes Step 14. Hardware Bag E 1/4" x 1-1/2", Carriage Bolt 1/4"...
  • Page 21 Step 15. Install Canopy Hardware Bag E Clip, Canopy Retainer Qty. 8 Install Threaded Rod Step 16. Hardware Bag E 5/16" Nylon Hex Nut Qty. 2 L-1771-D...

  • Page 22: Assembly

    Install Eye Bolt Step 17. Hardware Bag E NOTE: Using a ice pick or knife make a small hole in the canopy. Eye Bolt, 5/16" x 2" Whiz Lock Nut Qty. 2 Qty. 1 Install Cable Assembly Step 18. Hardware Bag D Canopy Boot Quick Link 3/16"...
  • Page 23 Install Hose Step 19. Hardware Bag D Your polyVAC system engine is shipped without oil or gasoline. DO NOT attempt to start your PolyVAC engine without servicing the engine for oil First. STOP DO NOT START ENGINE BEFORE SERVICING! L-1771-D...

  • Page 24: Tractor Preparation

    TRACTOR PREPARATION Mark and cut outline Step 20. The Mower Deck Housing does not have to be closely fitted to your mower deck, or airtight. It just needs to be installed in front of the mower deck opening where the grass exits using existing holes in mower deck whenever possible.

  • Page 25: Flat Washer

    OPTION 1 Step 22. TRACTOR PREPARATION Option 1 Hardware Bag F Measure the height of the Mower Deck opening on your tractor. If the mower deck opening is 5- 3/4" or less use options 1,2, or 3 to mount the Mower Deck Housing.

  • Page 26: Mower Deck

    TRACTOR PREPARATION OPTION 3 Staep 22. Option 3 Option 3. The top of the Mower Deck Housing Hardware Bag F is 3/8" or more above the mower deck. Install Large or Small Mower Deck Bracket using Carriage Bolt (101) (from inside Mower Deck) and Flange Nut (107).
  • Page 27 OPERATION GENERAL: CAUTION: The muffler and adjacent areas are extremely Avoid over filling the unit, it can cause the tractor to lose HOT ! traction and skid, as well as cause the blower to clog. Extremely heavy loads will be difficult to dump. Fill to a USING YOUR LAWN-VAC UNIT capacity that is comfortable for you to dump.
  • Page 28 TO USE YOUR CART WITHOUT THE 2) Remove the hose from the blower housing. PolyVAC SYSTEM : 3) Insert a block of wood or other suitable object to prevent HOW TO CONVERT YOUR PolyVAC TO A GARDEN rotation of the impeller. CART 4) Using a torque wrench with 9/16”...
  • Page 29 ENGINE MAINTENANCE Installing Impeller 1. Stop engine and disconnect spark plug. WARNING: Always stop engine and disconnect the spark NOTE: Make sure spring washer (B) is installed in plug wire before performing and cleaning, lubricating, or proper orientation, as shown in illustration. other repairs to the engine or impeller assembly.

  • Page 30: Troubleshooting

    TROUBLESHOOTING ENGINE FAILS TO START* Spark plug wire disconnected. Connect wire to spark plug. Fuel tank empty, or stale fuel. Fill tank with fresh fuel. Fuel shut-off valve closed. Open fuel shut-off valve. Faulty spark plug. Clean, adjust gap or replace. LOSS OF POWER OR ENGINE Spark plug wire loose.
  • Page 31 L-1771-D...
  • Page 32 MANUFACTURER’S LIMITED WARRANTY Pull Behind Accessories The limited warranty set forth below is given by Brinly-Hardy The provisions as set forth in this warranty provide the Company with respect to new merchandise purchased and used sole and exclusive remedy arising from the sale.
