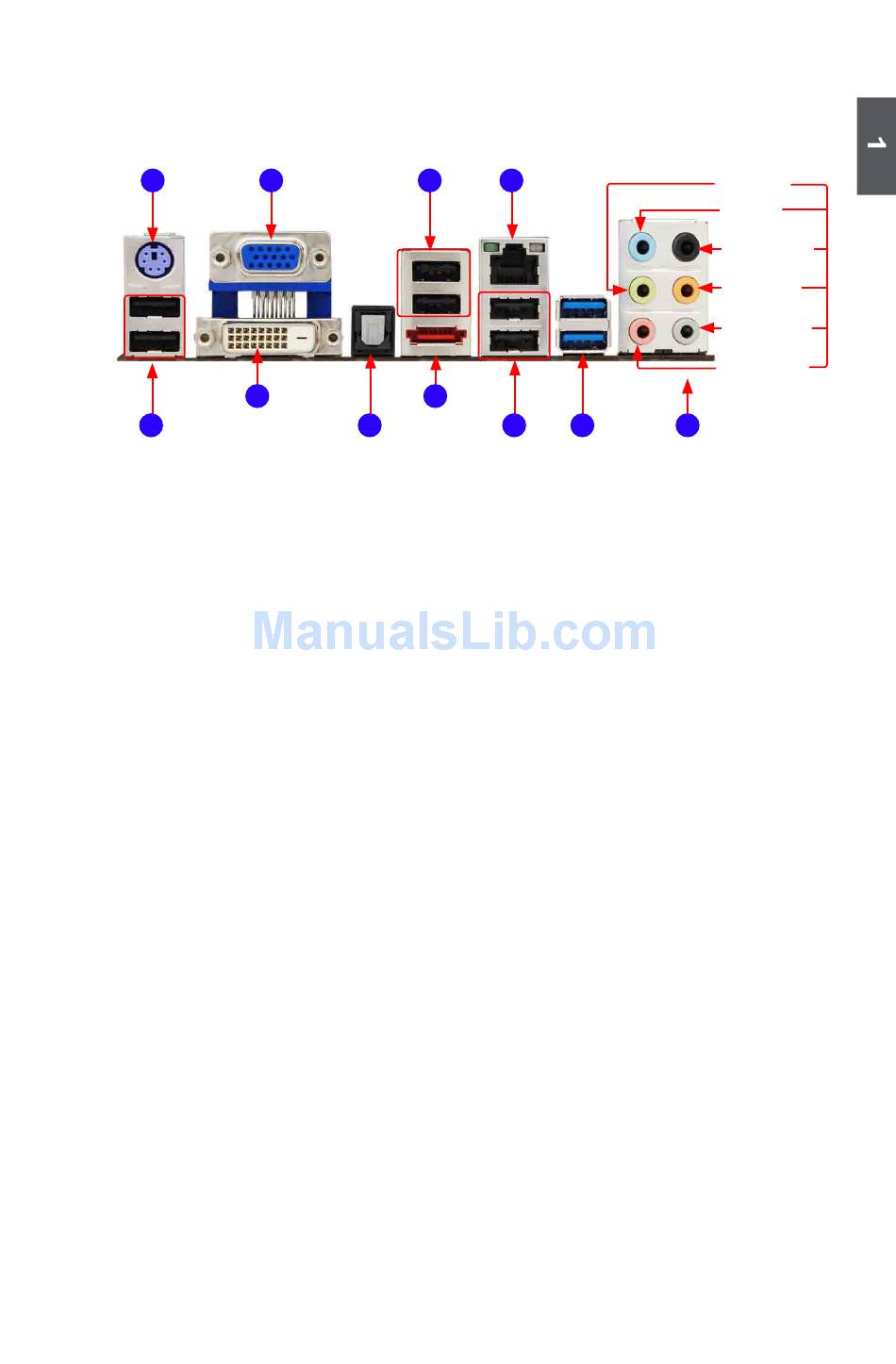

1-3 back Panel Connectors

PS/2 Keyboard Port
1
DVI-D Port
2
USB 2.0 Ports
1. PS/2 Keyboard Port
Use the upper port (purple) to connect a PS/2 keyboard.
2. USb 2.0 Ports
The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB flash drive and etc.
3. VGA Port
To connect with external display devices, such as monitor or LCD display4. DVI-D Port
The DVI-D port supports DVI-D specification. Connect a monitor that supports DVI-D connection
to this port.
5. optical S/PDIf out Port
This port provides digital audio out to an external audio system that supports digital optical audio.
6. external SATA Port
To connect external SATA device(s) to your system by expanding the internal SATA port(s) to the
chassis back panel. External SATA device shall provide power by its own.
7. USb 3.0 Ports
You need to install the USB 3.0 driver in the Driver CD before using it. The USB port supports the
USB 3.0/2.0/1.1 specification. Use this port for USB devices such as an USB keyboard/mouse,
USB printer, USB flash drive and etc.
8. Audio Ports
For the definition of each audio port, please refer to the table below :
VGA Port
3
4
External
5
SATA Port
Optical
S/PDIF Out
LAN Port
2
9
6
2
7
USB 3.0 Ports
5
Line Out
Line In
Rear Speaker
Subwoofer
Side Speaker
Microphone In
8
Audio Ports
