Layout - Foxconn Z68A-S Series User Manual

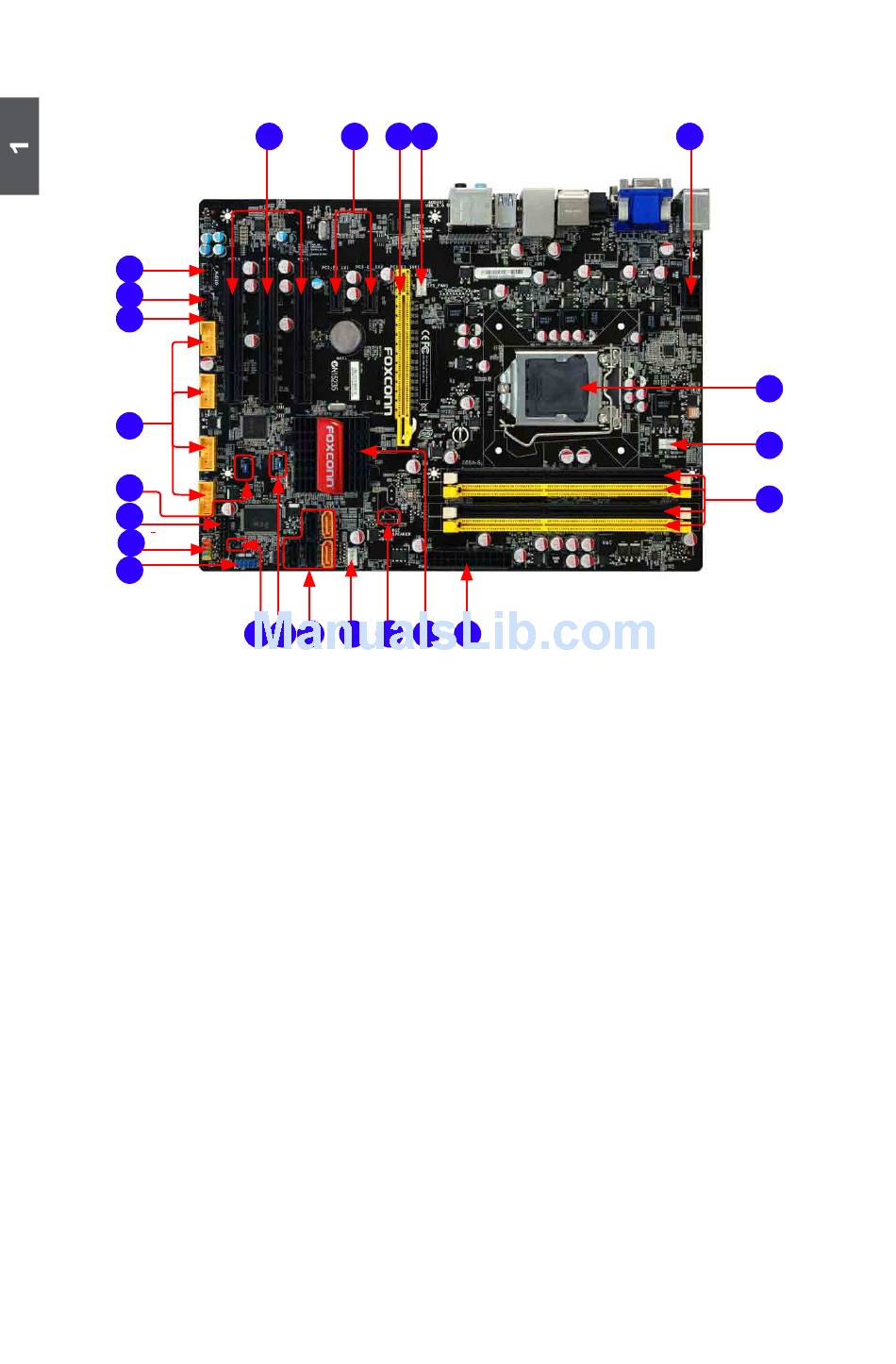

1-2 layout

6
7
8
9
10
11
12
13
1. 8-pin ATX 12V Power Connector
2. SYS_FAN1 Header
3. PCI Express x16 Slot
4. PCI Express x1 Slots
5. PCI Slots
6. Front Audio Connector
7 .. CD_IN Connector
8. SPDIF_OUT Connector
9. Front USB Connectors
10. Clear CMOS Jumper
11. TPM Connector
12. Front Panel Connector
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
5 4 3 2
18
14 15 16 17 19 20
13. COM1 Header
14. Chassis Intrusion Alarm Header
15. MFG Jumper
16. SATA Connectors
17. SYS_FAN2 Header
18. Speaker Connector
19. Chipset: Intel ® Z68
20. 24-pin ATX Power Connector
21. DDR3 DIMM Slots
22. CPU_FAN Header
23. LGA 1155 CPU Socket
4
1
23
22
21
