RightWay GPS – The Right Features, The Right Price, RightWay GPS

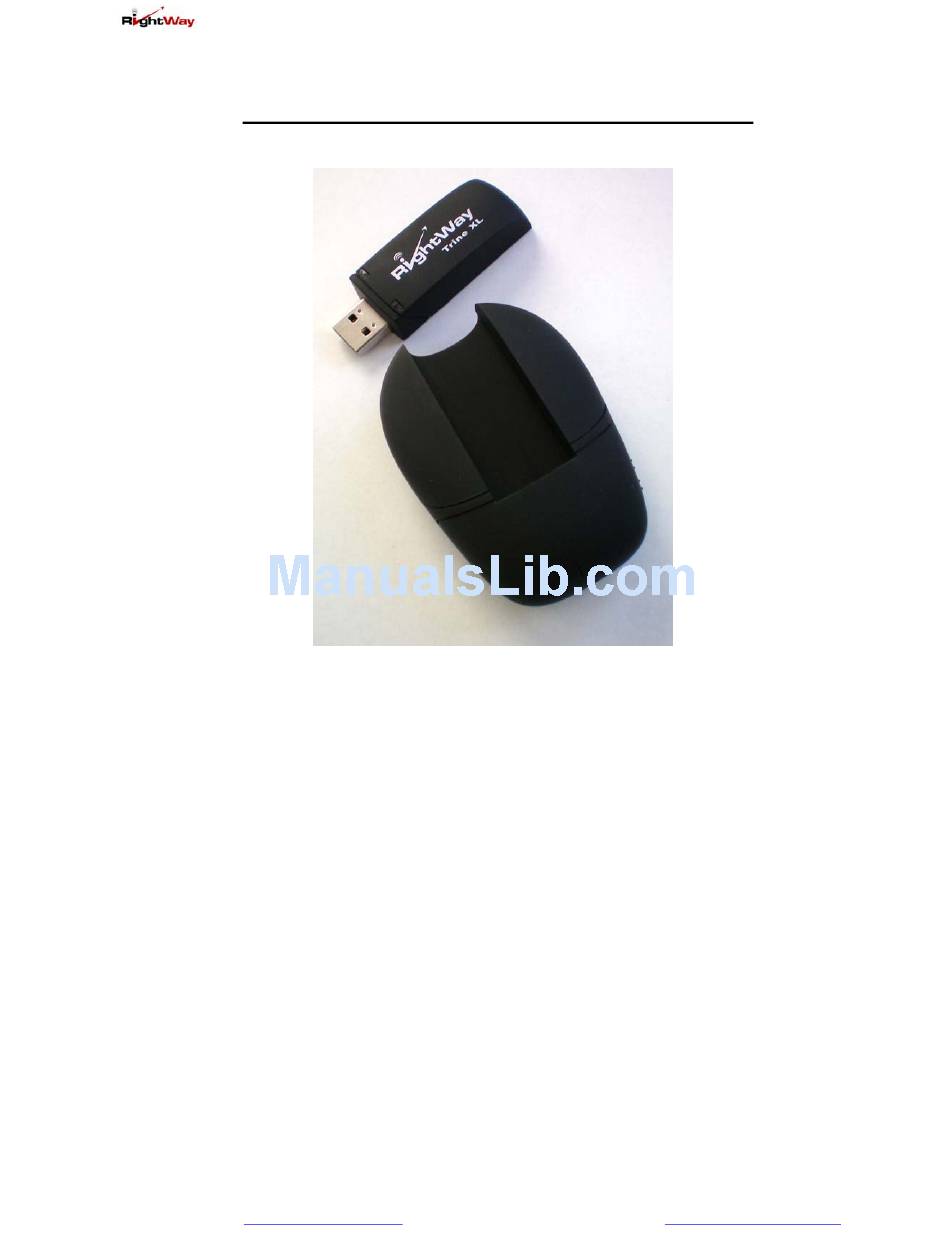

Trine XL User's Manual
RightWay GPS
Tel : +1.507.529.0041
Sales contact:
sales@rightwaygps.com
th
Address: 5050 75
Ave NW, Byron, Minnesota 55920 USA
Version 1.0
http://www.rightwaygps.com
Fax: +1.507.529.0041
Technical support:
support@rightwaygps.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RightWay Trine XL Version 1.0
Summary of Contents for RightWay Trine XL Version 1.0
- Page 1 RightWay GPS – The Right Features, The Right Price, RightWay GPS Trine XL User’s Manual Version 1.0 http://www.rightwaygps.com RightWay GPS Tel : +1.507.529.0041 Fax: +1.507.529.0041 Sales contact: sales@rightwaygps.com Technical support: support@rightwaygps.com Address: 5050 75 Ave NW, Byron, Minnesota 55920 USA...
- Page 2 RightWay GPS – The Right Features, The Right Price, RightWay GPS Notice We suggest that you carefully review the User Guide prior to using your GPS receiver. The Trine XL receiver is a highly sensitive piece of electrical equipment that can be easily damaged through misuse.
-
Page 3: Table Of Contents
RightWay GPS – The Right Features, The Right Price, RightWay GPS Contents INTRODUCTION............................1 ..........................1 PPLICATIONS ............................1 UTLOOK ..........................2 EATURES ..........................4 PECIFICATIONS ..................5 LECTRICAL AND NVIRONMENTAL LED D ..........................5 ISPLAY ....................6 OMMUNICATION ONNECTIONS .......................... -
Page 4: A Pplications
RightWay GPS – The Right Features, The Right Price, RightWay GPS 1 Introduction 1.1 Applications This dongle provides navigation and data logging functions via Bluetooth or a USB connection. It can be used with devices such as a Smart phone, PDA, UMPC, MID, Notebook PC, etc. -
Page 5: Main
RightWay GPS – The Right Features, The Right Price, RightWay GPS Blue LED Green LED Blue LED indicates the Bluetooth communication status and logging status Green LED indicates GPS status and the remaining logging capacity. Battery Bank Dimension of battery bank: 55.5 mm (W) x 78.6 mm (L) x 27 mm (H) 1.3 Main Features... - Page 6 RightWay GPS – The Right Features, The Right Price, RightWay GPS Logging status indication Logging is enabled or disabled Capacity is low, near full, or full No worry of logging data loss Logging stops when capacity is full Logging capacity 130,000 way points, or 364 hours for 10 seconds logging interval Special models available with double/quadruple storage.
-
Page 7: Specifications
RightWay GPS – The Right Features, The Right Price, RightWay GPS 1.4 Specifications GPS Receiver Features Specifications GPS chipset SiRFstarIII Chipset 20 channels, L1 frequency, C/A code < 2.5m (Autonomous) Horizontal Accuracy < 2.0m (WAAS) (50% 24hr static, -130dBm) <0.01 m/s (speed) Velocity Accuracy <0.01°... -
Page 8: E Lectrical And
RightWay GPS – The Right Features, The Right Price, RightWay GPS 1.5 Electrical and Environmental Data The Trine XL is built-in with a small backup battery for ephemeris data. The battery bank can be used to power the Trine XL. -
Page 9: C Ommunication
RightWay GPS – The Right Features, The Right Price, RightWay GPS 1.7 Communication Connections Wired The Trine Xl can be connected to the USB port on a PC for real time navigation or to download the logged data points. The appropriate drivers can be found on the product CD. -
Page 10: C Ertifications
RightWay GPS – The Right Features, The Right Price, RightWay GPS 1.9 Certifications CE, FCC, BQB, RoHS 1.10 Related Documents USB Driver Quick Installation Guide Quick Guide of NaviViewer Quick Guide to TRINE XL Bluetooth GPS Logger Receiver User’s Guide to NaviLogManager... -
Page 11: Getting Started
RightWay GPS – The Right Features, The Right Price, RightWay GPS 2 Getting Started The Trine XL can provide positional data for navigation via a USB or Bluetooth connection. The Trine XL can also be used for logging positional data for future use in Google Earth, for Geo-Tagging Photos, or route management. - Page 12 RightWay GPS – The Right Features, The Right Price, RightWay GPS 2. Double click on the item of View devices in range. It shows the devices found. 3. Click on item of BT GPS Dongle to connect to the Trine XL.
-
Page 13: Viewing
RightWay GPS – The Right Features, The Right Price, RightWay GPS 6. The Pairing code for Trine XL is 0000. Click on OK. 7. It shows the device as connected. Move cursor to the icon and it shows the service as connected and COM port number 6 is used for this function. - Page 14 RightWay GPS – The Right Features, The Right Price, RightWay GPS automatically according to setting of record options when powered on. The logging could also be turned off using the RW Log Manager software. 2. Run RW Log Manager; click stop to stop logging, allowing you to set parameters such time zone, units, speed definitions, and other triggers.
- Page 15 RightWay GPS – The Right Features, The Right Price, RightWay GPS 2.4 Track Browsing in Google Earth There are many functions in Google Earth. It’s not our focus to introduce these functions. Instead, some hints are given to view the logged information.
- Page 16 RightWay GPS – The Right Features, The Right Price, RightWay GPS For example, click on item of MaxSpeed (the large red +)
- Page 17 RightWay GPS – The Right Features, The Right Price, RightWay GPS Click on item of Stop 1. (One can also click on icon Stop 1 from the display directly.) If one prefers to see the map information, remember to enable the roads selection...
-
Page 18: Photo
RightWay GPS – The Right Features, The Right Price, RightWay GPS The map in local language would be displayed. Please note that not every area has their corresponding map. 2.5 Photo Tagging RW Log Manager does not support photo tagging directly. However, it’s easy to geotag photos using free public domain photo-tagging software. - Page 19 RightWay GPS – The Right Features, The Right Price, RightWay GPS Step4: Pick the photos Step3: Click “Enter” Step2: Pick the NMEA messages to be Step5: Click here for KML format Step1: Click “Enter” here Step 1: Click “Enter” Step 2:...
-
Page 20: Software Interface
RightWay GPS – The Right Features, The Right Price, RightWay GPS 3 Software Interface 3.1 NMEA Output Messages The NMEA-0183 Output Messages are shown as below: NMEA Record Descriptions GPGGA Global positioning system fixed data: time, position, fixed type GPGLL... - Page 21 RightWay GPS – The Right Features, The Right Price, RightWay GPS 3.2 GPGGA - Global Positioning System Fix Data Example $GPGGA,101229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M, , , ,0000*3E Explanation Contents Example Unit Explanation Message ID $GPGGA GGA protocol header UTC Time 101229.487 hhmmss.sss hh: hour, mm: minute, ss: second Latitude 3723.2475...
-
Page 22: Gpgsa - Gnss Dop
RightWay GPS – The Right Features, The Right Price, RightWay GPS 3.4 GPGSA - GNSS DOP and Active Satellites Example $GPGSA,A,3,05,02,26,27,09,04,15, , , , , ,1.8,1.0,1.5*11 Explanation Contents Example Explanation Message ID $GPGSA GSA protocol header Mode 1 M: Manual—forced to operate in 2D or 3D mode A: 2D Automatic—allowed to automatically switch 2D/3D... - Page 23 RightWay GPS – The Right Features, The Right Price, RightWay GPS 3.6 GPRMC - Recommended Minimum Specific GNSS Data Example $GPRMC,151229.487,A,3723.2475,N,12148.3416,W,0.13,309.62,120598,,,A*5F Explanation Contents Example Unit Explanation Message ID $GPRMC RMC protocol header UTC Time 151229.487 hhmmss.sss hh: hour, mm: minute, ss: second...
-
Page 24: Gpzda -
RightWay GPS – The Right Features, The Right Price, RightWay GPS 3.8 GPZDA - SiRF Timing Message Example $GPZDA,181813,14,10,2006,00,00*4A Explanation Contents Example Unit Explanation Message ID $GPZDA ZDA protocol header UTC time 181813 Either using valid IONO/UTC or estimated from... -
Page 25: Trouble Shooting
RightWay GPS – The Right Features, The Right Price, RightWay GPS 4 Trouble Shooting Q. The data logger does not log data when the power is on. A. Possible reasons: Power on log (see RW Log Manager software) is turned off. - Page 26 RightWay GPS – The Right Features, The Right Price, RightWay GPS 5 FCC Safety Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 27 RightWay GPS – The Right Features, The Right Price, RightWay GPS 6 Warranty HARDWARE: Transplant GPS, Inc. warrants to the original end user (ie. Customer) that this product will be free from defects in workmanship and materials, for one year from the date of original purchase from Transplant GPS.
- Page 28 RightWay GPS – The Right Features, The Right Price, RightWay GPS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO OPEN, REPAIR, OR MODIFY THE PRODUCT, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD.
- Page 29 RightWay GPS – The Right Features, The Right Price, RightWay GPS must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Changes or modifications made without written approval may void the user’s authority to operate this equipment.
- Page 30 RightWay GPS – The Right Features, The Right Price, RightWay GPS Under no circumstances shall Transplant GPS be responsible for any loss of data or income or any special, incidental, consequential, or indirect damages howsoever caused.
