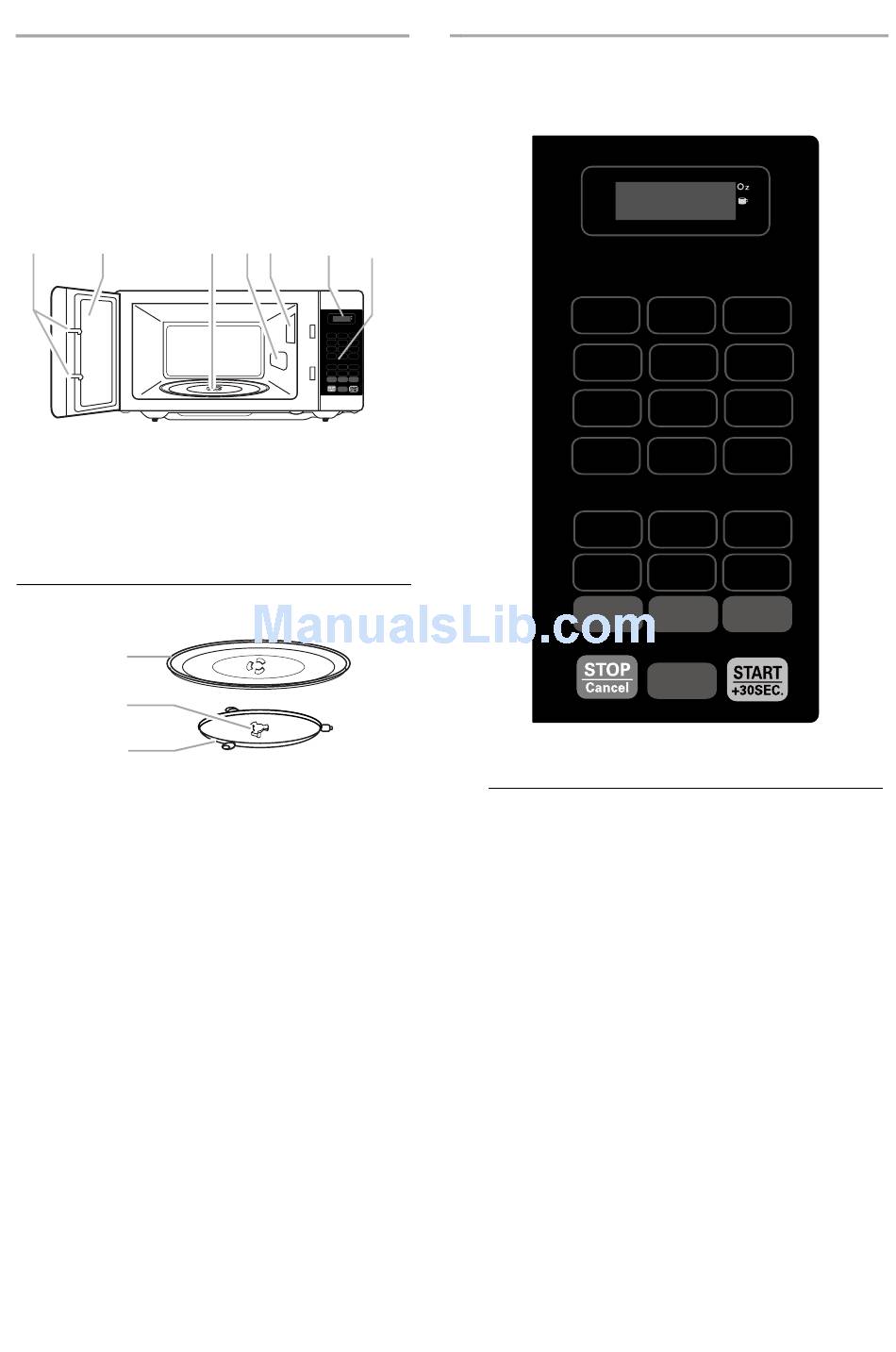

PARTS AND FEATURES

This manual may cover several different models.
The model you have purchased may have some
or all of the features shown here. The appearance
of your particular model may differ slightly from
the illustrations in this manual.
A B
A. Door lock system
B. Metal shielded window
C. Glass turntable
A
B
C
The turntable can rotate in either direction to help
cook food more evenly. For best cooking results,
do not operate the microwave oven without having
the turntable in place. See "Assistance or Service"
to reorder any of the parts.
To Install:
1. Install the hub into the hole in the center of the
microwave oven cavity bottom
2. Place the support on the microwave oven cavity
bottom.
3. Place the turntable on the support.
Fit the raised, curved mounds in the center of the
turntable bottom between the three spokes of the
hub.
C D E
F G
Time Cook Time Defrost Weight Defrost
Kitchen
Power Clock Timer
Popcorn Potato
Pizza
Frozen
Beverage Dinner Plate
Vegetable
EXPRESS COOK
1 2 3
4 5 6
9
7 8
0
Memory
D. Microwave inlet cover
E. Microwave oven light
F. Display
G. Control panel

Turntable

A. Turntable
B. Hub
C. Roller Guide

MICROWAVE OVEN CONTROL

Time Cook
Popcorn
Vegetable
When power is first supplied to the microwave oven,
"0:00" will appear in the display. If the "0:00" appears
in the display at any other time, a power failure has
occurred. Reset the clock if needed. See "Clock" section.
When the microwave oven is in use, the display shows
cook time remaining. When the microwave oven is not
in use, the display shows the time of day (if the cl ock is
set) or Timer countdown.
EN-7
Time Defrost Weight Defrost
Kitchen
Power Clock
Timer
Potato
Pizza
Frozen
Beverage
Dinner Plate
EXPRESS COOK
1 2 3
4 5
6
9
8
7
0
Memory

Display
