Access Point (Infrastructure) Mode
(See Figure A-2)
Infrastructure mode refers to a wireless network architecture in which devices communicate with
wireless or wired network devices by communicating through an Access Point. In infrastructure mode, wireless devices
can communicate with each other or with a wired network. Corporate wireless networks operate in infrastructure
mode because they require access to the WLAN in order to access services, devices, and computers (e.g., file servers,
printers, databases).

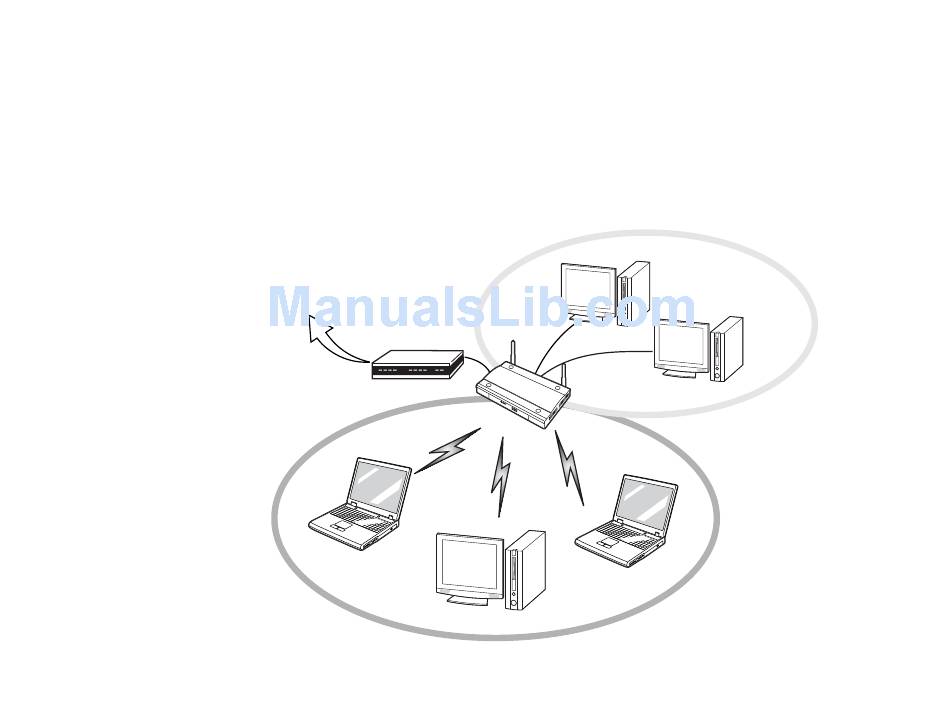

Figure A-2:
Access Point (Infrastructure) Mode Network
ADSL modem,
Internet cable modem,
or similar
Wireless LAN
121 - Before Using the Wireless LAN
Wired LAN
Access Point*
*An optional hub for a wired
LAN may be required depending
upon the type of access point used.
