Summary of Contents for AV Link SA-2

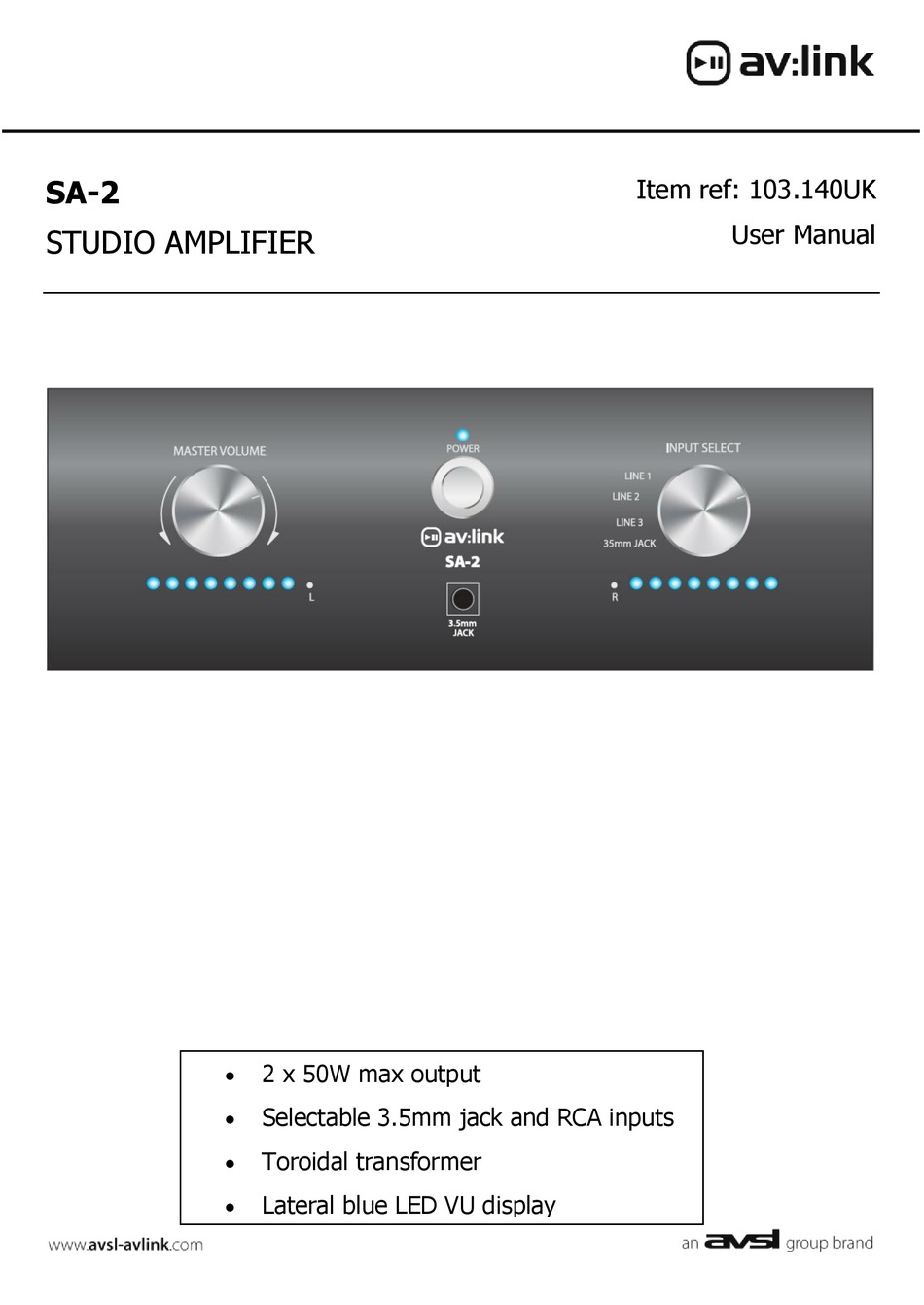

- Page 1 SA-2 Item ref: 103.140UK User Manual STUDIO AMPLIFIER 2 x 50W max output Selectable 3.5mm jack and RCA inputs Toroidal transformer Lateral blue LED VU display ...
-
Page 2: Front Panel
Introduction Thank you for purchasing this AV:Link SA-2 stereo amplifier. This product is intended to give long term, reliable service in normal usage. Please read these instructions before use to avoid incorrect operation and to help outline the functions and controls. -
Page 3: Specifications
Operation Check mains for correct voltage as indicated near to the IEC mains inlet on the rear panel. Connect to mains supply using the IEC cable provided. Connect the outputs A+B to speakers via binding posts, ensuring that the minimum impedance is no lower than 4Ω... -
Page 4: Troubleshooting
No user serviceable parts inside, refer all servicing issues to qualified service personnel. Clean case with a lint-free dry or slightly damp cloth, keep ventilation grille and fans clear of debris Errors and omissions excepted. Copyright© 2012. AVSL Group Ltd. 103.140UK User Manual...
