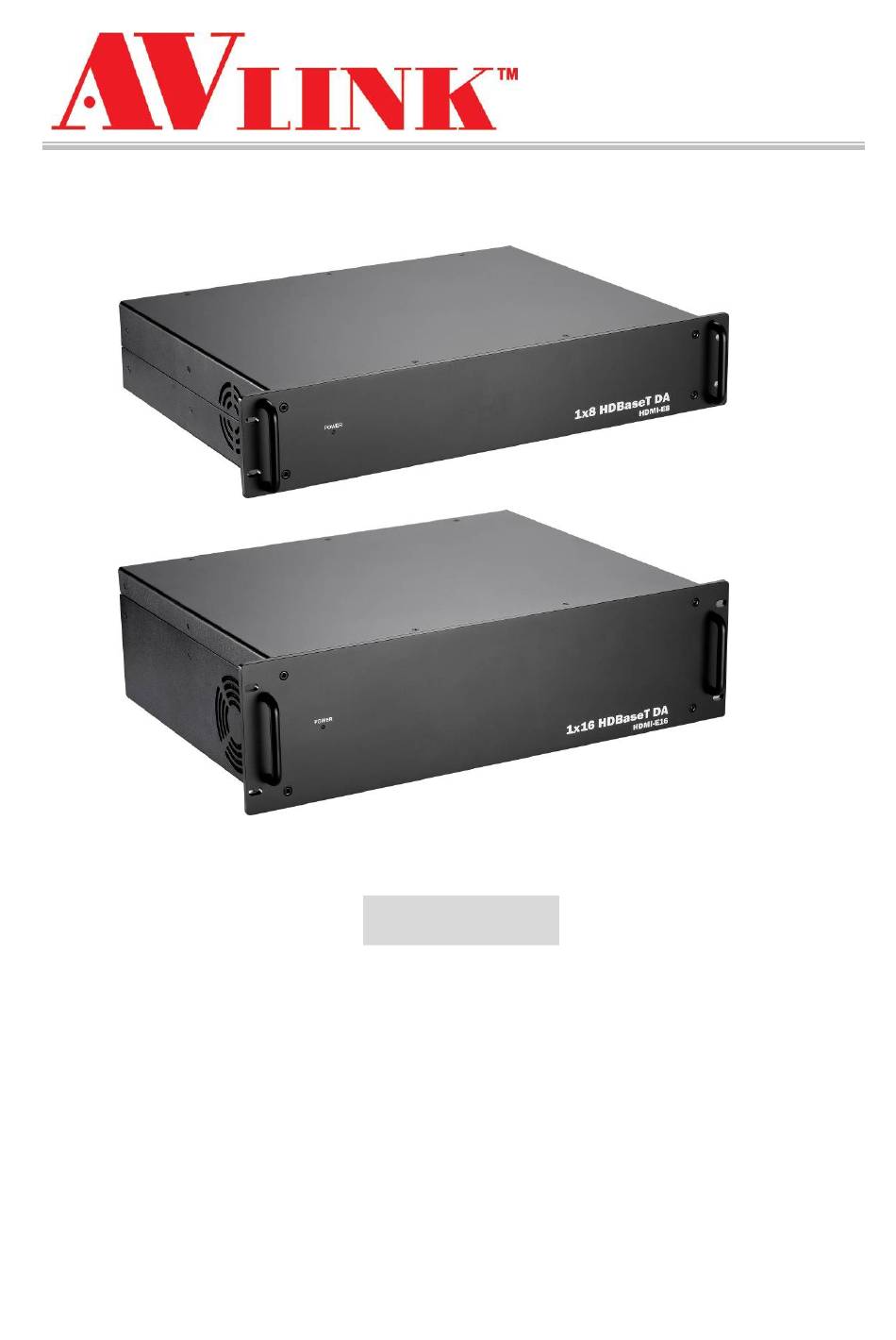

Distribution Amplifier (DA)—User Manual
User Manual
Distribution Amplifier
1x8 / 1x16
HDMI-E8 / HDMI-E16
V.2012HDMI-E8E16.00
Copyright and Trademarks:
All rights reserved by C&C TECHNIC TAIWAN CO., LTD. No part of this document may
be reproduced in any form or by any means without written permission from the product
manufacturer. Changes are periodically made to the information in this document.
They will be incorporated in subsequent editions. The product manufacturer may make
improvements and /or changes in the product described in this document at any time.
All the registered trademarks referred to this manual are belonging to their respective
companies.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDMI-E8 and is the answer not in the manual?

Questions and answers

Related Manuals for AV Link HDMI-E8

Summary of Contents for AV Link HDMI-E8

  • Page 1 Distribution Amplifier (DA)—User Manual User Manual Distribution Amplifier 1x8 / 1x16 HDMI-E8 / HDMI-E16 V.2012HDMI-E8E16.00 Copyright and Trademarks: All rights reserved by C&C TECHNIC TAIWAN CO., LTD. No part of this document may be reproduced in any form or by any means without written permission from the product manufacturer.
  • Page 2 Distribution Amplifier (DA)—User Manual Before You Begin Follow all instructions marked on the device during using. Do not attempt to maintain the device by yourself, any faults, please contact your vendor. Provide proper ventilation and air circulation and do not use near water. It is better to keep it in a dry environment.

  • Page 3: Table Of Contents

    Distribution Amplifier (DA)—User Manual Table of Contents 1. System Overview ........................4  1.1 Introduction ........................4  1.2 Packing ..........................5  1.3 Accessories (Optional) ......................5  2. Features ............................6  3. Specifications ..........................7  4. Device Installation........................8  5. Front/Rear Panels ........................9  5.1 Front Panel ........................9  5.2 Rear Panel ........................10  6.
  • Page 4 Distribution Amplifier (DA)—User Manual 7.3 LAN Web Configuration ....................39  7.3.1 Audio Configuration (Not Support for DA)............40  7.3.2 Video Configuration (Not Support for DA) ............41  7.3.3 Device Status Information..................41  7.3.4 Device Output View .....................42  7.3.5 LAN Main Operation ...................42  7.3.6 LAN Memory Function (Not Support for DA)............43  7.3.7 LAN IP Function ....................44 ...

  • Page 5: System Overview

    Through the extensible accessory devices, HDMI-E8/HDMI-E16 can transmit data or detect signal to over long distances about 100 meters with HDMI extender (HX-RW).

  • Page 6: Packing

    Distribution Amplifier (DA)—User Manual 1.2 Packing Distribution Amplifier (DA) * 1 (HDMI-E8 or HDMI-E16) Power Cord * 1 IR Receiver Cable * 1 IR Blaster Cable * 1 User Manual * 1 1.3 Accessories (Optional) HDMI Extender (HX-RW) IR Receiver Cable...

  • Page 7: Features

    IR pass-through supports all kinds of IR frequency band IR pass-through supports Bi-directional transmission between IN and OUT ports Support IR remote control Support RS-232 control Support RS-485 serial control Support Ethernet control Internal universal power supply 2U rack for HDMI-E8 and 3U rack for HDMI-E16...

  • Page 8: Specifications

    Distribution Amplifier (DA)—User Manual Specifications Hardware Input Connector HDMI Type A x 1 HDMI-E8: RJ45 x 8 Output Connector HDMI-E16: RJ45 x 16 RS-232 Connector DB9 Female LAN Connector RJ45 RS-485 Connector 2 pins Dip Switcher 8 pins Dip Switcher...

  • Page 9: Device Installation

    The Distribution Amplifier (DA) has a black metallic housing. It can be placed on a sturdy desk directly or installed on a 2U (HDMI-E8) or 3U (HDMI-E16) 19in bracket. See below: Figure 4-1 Mount the Device on a Standard Bracket with 2U Rack-mount...

  • Page 10: Front/Rear Panels

    Distribution Amplifier (DA)—User Manual Front/Rear Panels 5.1 Front Panel Figure 5-1 HDMI-E8 Front Panel Figure 5-2 HDMI-E16 Front Panel HDMI-E8/HDMI-E16 supports a power LED indicator on the Front Panel allowing you to detect power status.

  • Page 11: Rear Panel

    5.2 Rear Panel Figure 5-3 HDMI-E8 Rear Panel for 8 Output Jacks HDMI-E8 supports 1 input jack (HDMI Type A) and up to 8 output jacks (RJ45) on the rear panel, each female terminals form the signal input/output jacks. The HDMI-E8 signal output terminal channels are numbered as OUT1~8 channels.
  • Page 12 Distribution Amplifier (DA)—User Manual LAN Port: Use the RJ45 connection cable to connect the Internet and the Distribution Amplifier (DA). The entire PCs at the same network can control the Distribution Amplifier (DA) through the LAN port. Refer to 6.6.3 LAN Port. Switchers: Distribution Amplifier (DA) supports 8 pins DIP and 2 pins DIP switchers for connected configurations.

  • Page 13: Peripherals Connections

    Distribution Amplifier (DA)—User Manual Peripherals Connections Figure 6-1 HDMI-E8 Connections Figure 6-2 HDMI-E16 Connections The HDMI-E8/HDMI-E16 supports up to 4/8 Output modules for reparation or upgrade. Each module can be configured individually based on module number. Figure 6-3 Modules Deployment...

  • Page 14: Input/Output Connections

    Distribution Amplifier (DA)—User Manual 6.1 Input/Output Connections Use the HDMI connecting cable to connect the Input jack to the HDMI jack of the Blu-ray, DVD player, graphics workstation or number display. Use the Cat.5e cable to connect the output RJ45 jack (No.1 ~ No. 8 or 16) to the RJ45 jack of HDMI Extenders (HX-RW). Through the HDMI extender (HX-RW), you can extend the connection of projector, video recorder, displayer or multiplexer to your Distribution Amplifier (DA).

  • Page 15: Output Led

    Distribution Amplifier (DA)—User Manual 6.1.1 Output LED This Distribution Amplifier (DA) supports HDBaseT output for a long distance signal transmission. Output connector is RJ45 jack with two LED indicators. The LED indicators show you the status of output transmission. * The left of RJ45 output jack is specified for HDCP LED (Yellow). * The right of RJ45 output jack is specified for LINK LED (Green).

  • Page 16: Ir Pass-Through Connection

    Distribution Amplifier (DA)—User Manual 6.2 IR Pass-through Connection The Distribution Amplifier (DA) provides an IR Receiver cable and IR Blaster cable accessories for IR pass-through. IR Receiver cable can be connected to IR Rx port or IR EXT on the rear panel. On the other hand, IR Blaster cable can be connected to IR Tx port on the rear panel.

  • Page 17: Ir Ext Connection

    Distribution Amplifier (DA)—User Manual 6.3 IR EXT Connection The Distribution Amplifier (DA) provides a reserved IR EXT port for more convenient to Remote Controller. You can connect IR Receiver cable to the IR EXT port located on the rear panel for optional IR aiming position. Figure 6-7 IR EXT Connection The IR EXT Connection is applied to Remote Controller.

  • Page 18: Distribution Amplifier Remote Control

    Distribution Amplifier (DA)—User Manual 6.5 Distribution Amplifier Remote Control Use the RS-232 connecting cable to connect the computer serial communication port (COM1 or COM2) to the RS-232 communication port of the Distribution Amplifier (DA). The computer can then be used to control the Distribution Amplifier (DA). Figure 6-9 RS-232 and Control PC connection Distribution Amplifier (DA) also supports a LAN port allows you to control all the series connection devices through PC Browser.

  • Page 19: Ports And Switchers

    Distribution Amplifier (DA)—User Manual 6.6 Ports and Switchers The Distribution Amplifier (DA) provides standard RS-232 and RS-485 serial communication ports. Use the RS-232 or RS-485 serial communication port to carry out remote operation. 6.6.1 RS-232 The RS-232 Pin functions are described as below: Pin No.
  • Page 20 Distribution Amplifier (DA)—User Manual Figure 6-11 (b) RS-232 – From Female DB9 (PC) to Male DB9 (DA) Figure 6-12 RS-232 – From Female DB25 (PC) to Male DB9 (DA) The DA RS-232 port is defined by DCE.

  • Page 21: Rs-485

    If the master device is specified for LAN, it allows you to control all the series devices with web browser. Remember all the ID of each device upon series connection has to be uniquely. Figure 6-13 RS-485 Connection for HDMI-E8...
  • Page 22 Distribution Amplifier (DA)—User Manual Figure 6-14 RS-485 Connection for HDMI-E16 Figure 6-15 RS-485 Connection for HDMI-E8 and HDMI-E16...

  • Page 23: Lan Port

    Distribution Amplifier (DA)—User Manual See Pin definitions as below: RS-485 Figure 6-16 RS-485 Port Serial connection between RS-485: Pin1 TX（+） TX（+）--- Transmitted Data + Pin2 TX（-） TX（-）--- Transmitted Data - Pin3 Gnd (Ground) Pin4 RX（+） RX（+）--- Received Data + Pin5 RX（-） RX（-）--- Received Data - RS-232 and RS-485 baud rates: 9600bps, no odd or even calibration address, 8bit data transmission address, 1bit stop address (96, N, 8, 1).

  • Page 24: Dip Switcher 8 Pins

    Distribution Amplifier (DA)—User Manual 6.6.4 DIP Switcher 8 Pins Figure 6-18 DIP Switcher A. DIP Switcher Pin 1 to 5: Switch to down (ON) is specified for “0”, on the other hand to up (OFF) is specified for “1”. For Device ID settings refer to 6.6.6 Device ID Settings.

  • Page 25: Device Id Settings

    Distribution Amplifier (DA)—User Manual 6.6.6 Device ID Settings Device ID Settings The Device ID determines the position of a DA device. When multiple devices are serially connected and connected to one PC, the Device ID decides which device is to be controlled.
  • Page 26 Distribution Amplifier (DA)—User Manual 11011 11100 11101 11110 11111...

  • Page 27: Application Software

    Distribution Amplifier (DA)—User Manual Application Software 7.1 Software Introduction The《AV Matrix》control software applies to different input/output matrixes. 7.1.1 Software Description The《AV Matrix》control software is an application tool developed for testing and application. The software operating environment is as below: Window 98/2000/NT/XP/7/8 operating systems (For Windows 7/8, please use AV Matrix 3.0.00 version at least) 32M internal memory or above 10M hard disk space or above...

  • Page 28: Connect Distribution Amplifier And Pc

    Distribution Amplifier (DA)—User Manual 7.1.3 Connect Distribution Amplifier and PC You must power off the Distribution Amplifier (DA). Then, connect the RS-232 port to the PC RS-232 port with the bundled communication cable. And make sure the DIPs on the rear panel are set to Master and RS-232.
  • Page 29 Distribution Amplifier (DA)—User Manual The Device ID is based on the DIP of switcher located on the rear panel. Slide the scrollbar on the lower left area of main window to view all contents (including ID, Name, A/V, I/O (only for VO/AO reference), Memory, VI Plug, AI Plug, VO Plug, AO Plug, EDID Type, Volume, Bass, Treble, Subwoofer, Delay, Delay Unit, Max Delay and Version) as described below: ID: Specify the ID address of Distribution Amplifier (DA).

  • Page 30: Main Operation Interface

    Refer to the main window as above, the marked blue area shows crossing matrix of output ports 001-008 (HDMI-E8) or 001-016 (HDMI-E16) and input port 001 used. You can slide the scrollbar on the INPUT/OUTPUT area to view all configured ports. For the...
  • Page 31 Distribution Amplifier (DA)—User Manual When the device name located on the left of main configuration window is empty, you can click the Scan to research and update the device ID and Name and other related information. End the Scan function by pressing the Scan again during scanning process.

  • Page 32: Disconnect Function Key

    A specific example of operation is described as below: The present input and output relations are shown in Figure 7-4 (a) below: Figure 7-4 (a) Disconnect Function Key for HDMI-E8 Reference Follow the steps as below to disable the output ports including port 003、002、and 001.
  • Page 33 Distribution Amplifier (DA)—User Manual The final results will be as shown in Figure 7-4 (b) below: Figure 7-4 (b) Disconnect Function Key for HDMI-E8 Reference...

  • Page 34: Audio Configuration Function (Not Support For Da)

    Distribution Amplifier (DA)—User Manual 7.2.3 Audio Configuration Function (Not Support for DA) This function is only for Audio Advanced Matrix Switcher, click “Audio” tab to enter the audio configuration window. In the audio configuration window allows you to adjust Volume, Bass, Treble, Subwoofer and Delay by sliding the scrollbar. You can also enable/disable the “Mute”...
  • Page 35 Distribution Amplifier (DA)—User Manual Figure 7-6 Mute One Port Configuration A specific example of Mute all function is described below: Click “Select all” check box, all of configuration sections will become as light blue block, then click “Mute” check box to mute all blocked sections. All of the icon will become...
  • Page 36 Distribution Amplifier (DA)—User Manual Figure 7-7 Mute All Ports Configuration...

  • Page 37: Edid Configuration Function (Not Support For Da)

    Distribution Amplifier (DA)—User Manual 7.2.4 EDID Configuration Function (Not Support for DA) Click “Video” tab to enter the video configuration window. In the video configuration window allows you to configure the EDID type of channel as FIX or Output1. In Matrix Switcher, the audio and video can be processed synchronously.

  • Page 38: Rs-232 Memory Function (Not Support For Da)

    Distribution Amplifier (DA)—User Manual 7.2.5 RS-232 Memory Function (Not Support for DA) Function Description: To store and retrieve the settings. Memory Save Function Description: The function saves all the present input/output switching relations to any Locations from #1 to #8 you desired. A specific example of the Store Function is described below: Store all the present input/output switching relations to Location #1.

  • Page 39: Options Function

    Distribution Amplifier (DA)—User Manual Figure 7-11 Memory Configuration Status When input corresponding to Output is enabling, it shows the Output ports correspond to the Input ports; when they are disable it will show red “None” in the relative field. 7.2.6 Options Function Activation Function: In the main configuration menu, select Options to prop-up the Options Window as shown in Figure 7-12（a）...

  • Page 40: Lan Web Configuration

    Distribution Amplifier (DA)—User Manual 7.3 LAN Web Configuration Open the Browser on your PC, key in the default IP address: to login http://192.168.0.3 the AV MATRIX Control configuration window. Once the default IP address is changed, please use the changed IP to login. The software controls signal connection between the corresponding input port and output port as required.

  • Page 41: Audio Configuration (Not Support For Da)

    Key In: A Hot key that is for key in the value 0~99 quickly. After setting the value, click “Enable” to take effect. For HDMI-E8 is useful from 1 to 8 values upon 8 output ports and HDMI-E16 is useful from 1 to 8 values upon 8 output ports.

  • Page 42: Video Configuration (Not Support For Da)

    Distribution Amplifier (DA)—User Manual 7.3.2 Video Configuration (Not Support for DA) For video configuration, click Video button directly to pop-up “Video Settings” window. Figure 7-16 Video Operation In “Video Settings” window, you can click Change button to switch EDID Output1 and Default port.

  • Page 43: Device Output View

    If you want to set OUT2, 3 and 4 ports connect to IN1 port. Figure 7-22 AV Matrix Control (for HDMI-E8 Reference) Step 1: For channel 2, 3, 4 Output, please key in the value “1” in the Audio fields.

  • Page 44: Lan Memory Function (Not Support For Da)

    Distribution Amplifier (DA)—User Manual 7.3.6 LAN Memory Function (Not Support for DA) Function Description: To store and retrieve the settings. Store Function Description (STO/Save): The Store Function saves all the present input/output switching relations to any Locations from #1 to #8 you desired. A specific example of the Store Function is described below: Store the present input/output switching relations to Location #2.

  • Page 45: Lan Ip Function

    Distribution Amplifier (DA)—User Manual 7.3.7 LAN IP Function In the main configuration menu, select Options button to prop-up the Browser ex. “Windows Internet Explorer” dialog box, click “OK” to show the IP configuration window. Figure 7-24 Network Settings In the “Network Settings” window, you can set the IP information by yourself (Fix IP) or click the Enable DHCP check box to get the IP from the DHCP (Float IP).

  • Page 46: Other Application

    Distribution Amplifier (DA)—User Manual 7.3.8 Other Application The software utility will show you at least 32 units Device ID and Name. You can click the Console down list to select which device that you want to configure output /input values. The entire connected Device name will be showed on the Console List as Figure 7-25.

  • Page 47: Troubleshooting

    Distribution Amplifier (DA)—User Manual Troubleshooting 1. What to do if the serial port (usually refer to the computer serial port) fails to control the Distribution Amplifier (DA)? Answer: Check that the communication port set by the control software is correctly connected to the corresponding serial port of the equipment.
  • Page 48 Distribution Amplifier (DA)—User Manual 6. How to avoid the equipment failure due to the high temperature? Answer: Place the device in a ventilate location. If it is still not to be improved, please check with the build-in fan whether is damaged. Or contact your agency for helping. 7.

  • Page 49: Appendix A Remote Controller (Optional)

    Distribution Amplifier (DA)—User Manual Appendix A Remote Controller (Optional) The device supports a remote control interface allows you to control the channels and video features switch of device through remote controller. For the switching, you can press OUT key, then press IN key. OUT 0 - OUT 9 and ALL keys are used for output configurations.

  • Page 50: Appendix B Ir Mini-Controller (Optional)

    Distribution Amplifier (DA)—User Manual Appendix B IR Mini-Controller (Optional) The Distribution Amplifier (DA) supports an IR Mini-Controller to allow you to select input channel through infrared sensor upon an extended connection – HDMI Extender (HX-RW). The signal for IR Mini-Controller is only available to the IR Receiver connected to the IR1 IN or IR2 IN port of HDMI Extender (HX-RW).

  • Page 51: Appendix C Firmware Upgrade

    Distribution Amplifier (DA)—User Manual Appendix C Firmware Upgrade This Chapter will introduce you how to upgrade firmware on your web browser. For firmware upgrade, you have to upload the firmware file to your web server and then upload it to your device from web server. Follow the steps as below to upgrade the firmware: 1.
  • Page 52 I/O Module from the drop-down menu. Click “Update” to upgrade. The Distribution Amplifier (DA) supports modules for upgrading; you have to upgrade each module individually. You can select IO Module 5 for HDMI-E8 or IO Module 9 for HDMI-E16 to upgrade all IO modules.
  • Page 53 Distribution Amplifier (DA)—User Manual 6. After finishing firmware upgrade successfully, “Firmware Upgrade to Device Success” information will appear as below. Besides, the firmware upgrade will not stop even though the web connection is fail suddenly. 7. If there is a firmware already exists on the web server during firmware upgrade. The “Erase Flash”...

  • Page 54: Appendix D Rs-232 Communication Protocol

    Distribution Amplifier (DA)—User Manual Appendix D RS-232 Communication Protocol This AV Matrix RS-232 communication protocol uses fixed length with 5 bytes of information as define below. The default baud rate is 9600 bps, no parity, 8 data bit and 1 stop bit. Command timeout is 300 milliseconds, and byte to byte timeout is 30 ms. Use the RS-232 connecting cable to connect the computer serial port to the RS-232 communication port of this device.

  • Page 55: D-1.2 Request Byte

    Distribution Amplifier (DA)—User Manual D-1.2 Request Byte Request Byte (RB) Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Request Type (0 - 63) Request Type: Please refer to "Table - Host Request List". 0: Reserve, Always 0.
  • Page 56 3. Memory #0 is the current status, it can‘t be stored. Memory #1 – 8 is allowed to be stored. 4. Use 0x3F to confirm the device connected is properly and supported commands. 5. Request 0x01, 0x07, 0x09, 0x0B, 0x30, 0x31 and 0x3F are only supported by HDMI-E8 / HDMI-E16.

  • Page 57: D-1.3 Index Byte

    Distribution Amplifier (DA)—User Manual D-1.3 Index Byte Index Byte (IB) Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Index Index: Please refer to "Table - Host Request List" and "Table - Command Index List". Table –...

  • Page 58: D-1.4 Value Byte

    Distribution Amplifier (DA)—User Manual D-1.4 Value Byte Value Byte (VB) Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Value Value: Please refer to "Table - Host Request List" and "Table - Command Value List". Table –...

  • Page 59: D-1.5 Crc Byte

    Distribution Amplifier (DA)—User Manual D-1.5 CRC Byte CRC Byte (CB) Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 CRC (cyclic redundancy check) CRC: Host must send CRC code to follow the last byte. Table –...

  • Page 60: Device Ack Packet

    Distribution Amplifier (DA)—User Manual D-2 Device ACK Packet When the device receives supported commands comes from the host, and then will response with following ACK: Table – ACK Type List Ack Type Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 …...

  • Page 61: D-2.2 Ack Type B

    Distribution Amplifier (DA)—User Manual D-2.2 ACK Type B ACK Byte + LB + Index1 + Value1 + Index2 + Value2 +…..+ CRC Byte Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Device ID (0 –...

  • Page 62: D-2.3 Ack Type C

    Distribution Amplifier (DA)—User Manual D-2.3 ACK Type C ACK Byte + LB + Data 1 + Data 2 + CRC Byte (Total 5 Bytes) Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Device ID (0 –...

  • Page 63: D-2.4 Ack Type D

    Distribution Amplifier (DA)—User Manual D-2.4 ACK Type D ACK Byte + LB + INF + OP + IP + Name 1 + Name 2 + Name 3 +..+ CRC Byte Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0...

  • Page 64: D-2.5 Ack Type E

    Distribution Amplifier (DA)—User Manual D-2.5 ACK Type E ACK Byte + LB + EXTI + VIDI + AUDI + PLUG +..+ CRC Byte Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Device ID (0 - 31) Length for the total data bytes (EXINF +..+ DTMAX) LBMAX...
  • Page 65 Distribution Amplifier (DA)—User Manual TRE - Treble command flag. (Request 0x16 and 0x17) 1 - Support Treble command. 0 - Not support Treble command. SW - Subwoofer command flag. (Request 0x18 and 0x19) 1 - Support Subwoofer command. 0 - Not support Subwoofer command. DELAY –...

  • Page 66: Appendix E Hdmi Extender (Hx-Rw)

    Distribution Amplifier (DA)—User Manual Appendix E HDMI Extender (HX-RW) The extension of HDMI video signal device supports up to 100 meter away by using an HDMI Extender and Cat.5e cable. HDMI Extender is ideal for: Test bench facilities Data Center Help desks Front View Rear View...

  • Page 67: Features

    Distribution Amplifier (DA)—User Manual Features Through the HDMI Extender (HX-RW), you can use the output of HDMI-E8 or HDMI-E16 to display identical image and extension of HDMI signal up to 100 meter on HDTV HDCP Compliant Support 3D pass-through Support all frequency band IR pass-through One Cat.5e cable extension...

  • Page 68: Ir Receiver Cable Directions

    Distribution Amplifier (DA)—User Manual IR Receiver Cable Directions Put IR Receiver Cable into the HDMI Extender (HX-RW) “IR2 IN” port and place the IR Receiver Cable, so that you can point to it easily with your IR remote controller. IR Receiver Cable: IR Blaster Cable Directions Plug IR Blaster Cable into HDMI Extender (HX-RW) “IR OUT”...

  • Page 69: Wiring Information For Link Connector

    Distribution Amplifier (DA)—User Manual Wiring Information for Link Connector Conductor RJ45 Pin Color Code for Identification Assignment Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown However sometimes, especially in demonstrations or in a lab environment, the cable is rolled randomly in small turns for convenience.

  • Page 70: Firmware Upgrade

    Distribution Amplifier (DA)—User Manual Firmware Upgrade Before upgrading firmware, you have to receive a Firmware burn package containing all software needed for burning. Follow the steps as below to upgrade the HDMI Extender (HX-RW) firmware: 1. Connect the power cord to the power port on the panel of HDMI Extender (HX-RW). The other end of the power cord connected to a suitable power source.
  • Page 71 Distribution Amplifier (DA)—User Manual 5. The burning windows will pop-up and begin to upgrade. 6. Final, the burning is finish as below.
