Total Lighting Control

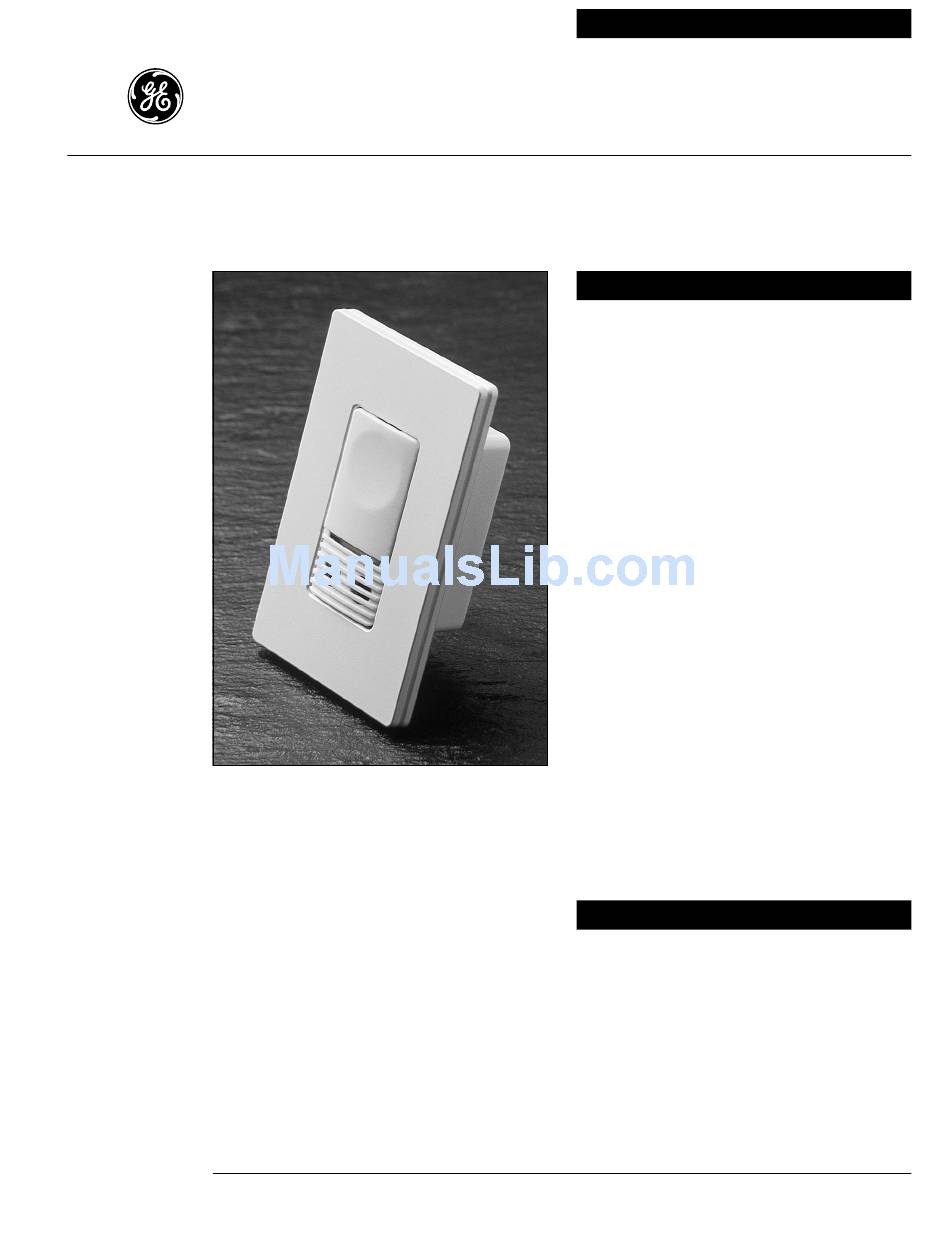

Line-voltage Wall Switch Occupancy Sensor
Catalog Number: RSEN-W12
DESCRIPTION AND OPERATION
The RSEN-W12 is a self-contained motion-sensing
lighting control which replaces a conventional wall
switch for energy savings and convenience. Lights turn
off automatically after a room is vacated.
Built-in sensors produce low intensity, inaudible sound and
detect changes in sound waves caused by motion, such as
walking into the room, reaching for a telephone, turning in a
chair. The sensor does not respond to audible sound.
In the Automatic ON mode, the lights turn on automatically
when a person enters the room. In the Manual ON mode,
lights are turned on by pressing the touchplate on the switch.
Modes can be changed by flipping the concealed switch under
the touchplate. In either mode, lights will remain on as long
as motion is detected in the room. When no motion is detected,
the lights will turn off automatically after the pre-set time
delay. Following this, a "grace period" of approximately ten
seconds allows lights to be turned on again by motion.
At any time, lights may be turned off while the room is
occupied by pressing the touchplate. The RSEN-W12 is fully
self-resetting; lights turned off manually in Automatic ON
mode will stay off while the room remains occupied. After the
room is vacated and the preset time delay and grace period
have elapsed, the lights will remain off until turned on
automatically the next time someone enters the room.
The RSEN-W12 can be used with a standard toggle switch to
split the lighting load for rooms that are wired for two
switches as shown in the wiring diagram.
FEATURES
• Replaces a conventional wall switch
• For use in small rooms or offices up to 300 square feet
• One model for either 120 VAC or 277 VAC
• Choice of automatic ON or manual ON modes
• Separate time delay and sensitivity adjustments
• For indoor use only
Before proceeding, read the enclosed installation
instructions. For GE TLC Service, call: 1-877-584-2685
(USA) or 1-800-661-619 (Canada).
Installation Instructions
IMRSEN-W12
1

Advertisement

   Related Manuals for GE IMRSEN-W12

   Summary of Contents for GE IMRSEN-W12

  • Page 1

    • Choice of automatic ON or manual ON modes • Separate time delay and sensitivity adjustments • For indoor use only Before proceeding, read the enclosed installation instructions. For GE TLC Service, call: 1-877-584-2685 (USA) or 1-800-661-619 (Canada). Installation Instructions IMRSEN-W12...

  • Page 2

    Load 2 is selected manually by opening and closing the toggle switch. Connect one wire to the switchleg for Load 1 and one side of the toggle switch for Load 2. Finally, connect the other wire from the RSEN-W12 to the hot lead. Connec-...

  • Page 3

    Turn “Entry Range” until flat edge of control is at 9 o’clock. 2. Move the “Mode” switch to the “Auto” or “A” position. 3. The area of coverage can be determined by watching the LED indicator on the front of the sensor while moving around the room.

  • Page 4

    • Confirm that no other switches or equipment are interrupt- ing or bypassing power to the RSEN-W12 or the load. • If lights still do not turn off, replace the RSEN-W12. Emergency Service or Support (888) 852-2778 GE Lighting Controls, 41 Woodford Ave., Plainville, CT 06062 Made in U.S.A.
