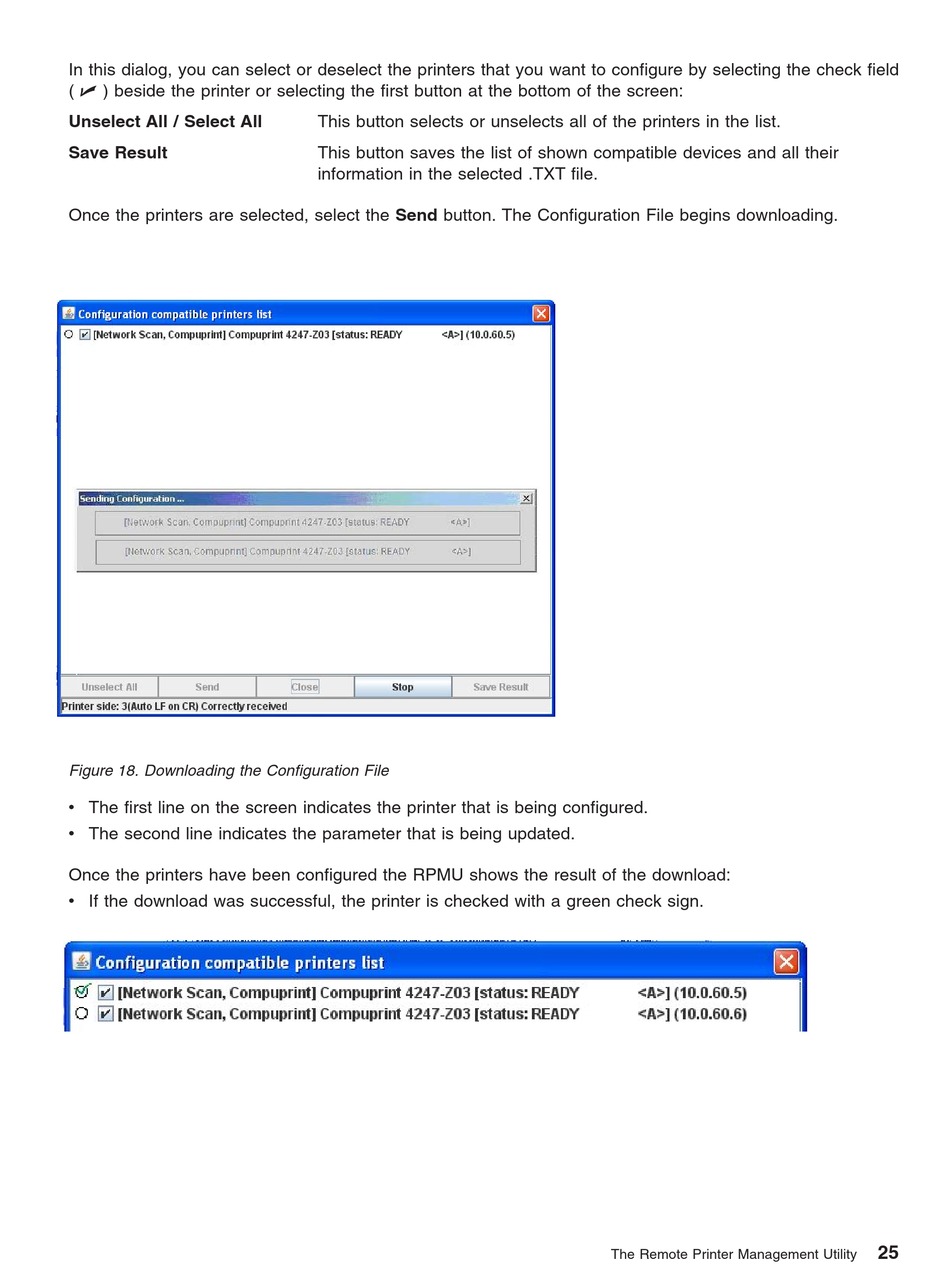

Compuprint 4247 Serial Management Manual page 29

In this dialog, you can select or deselect the printers that you want to configure by selecting the check field
( U ) beside the printer or selecting the first button at the bottom of the screen:
Unselect All / Select All
Save Result
Once the printers are selected, select the Send button. The Configuration File begins downloading.
Figure 18. Downloading the Configuration File
v The first line on the screen indicates the printer that is being configured.
v The second line indicates the parameter that is being updated.
Once the printers have been configured the RPMU shows the result of the download:
v If the download was successful, the printer is checked with a green check sign.
This button selects or unselects all of the printers in the list.
This button saves the list of shown compatible devices and all their
information in the selected .TXT file.
The Remote Printer Management Utility
25
