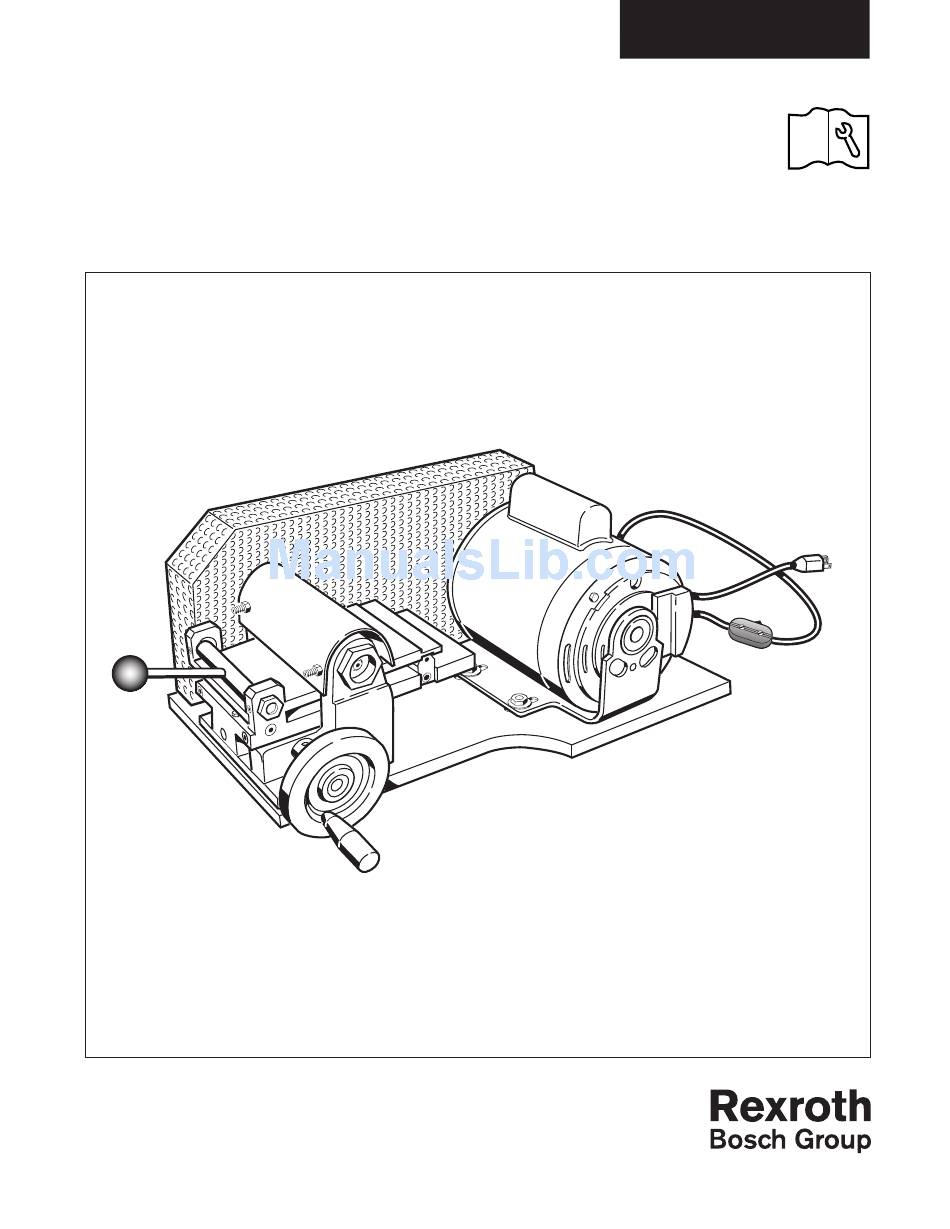

- Page 1 Modular Transfer Systems Linear Motion and Assembly Technologies TSplus Belt Grinder Assembly and Operation Guide Publication Number: 8981 500 309 3/03 Belt Grinder...
-
Page 2: Table Of Contents
We reserve the right to make technical changes at any time All rights are held by BOSCH REXROTH CORPORATION or without notice. ROBERT BOSCH GMBH, also regarding patent claims. We retain all Errors and omissions excepted. powers of disposition, such as for copying and/or for passing-on to ©... -
Page 3: Important Safety Information
Linear Motion and Assembly Technologies IMPORTANT SAFETY INFORMATION WARNING! Please read all assembly and maintenance instruc- • All set-up, maintenance, and repair work should tions carefully before beginning set-up and operation be performed only by properly trained, qualified of the belt grinder. personnel. -
Page 4: Introduction
Bosch Rexroth Corporation Fig. 1 Introduction Shipping Information Prior to welding the transport belts for TSplus The belt grinder is shipped completely assembled, conveyors, the ends must be tapered to provide except for the table hand crank, which must be the proper overlap. -
Page 5: Assembly
Linear Motion and Assembly Technologies Assembly The table hand crank must be installed prior to use. To install the hand crank: 1. Slide the hand crank onto the shaft in the table base, as shown in Figure 2. 2. Use a 1/8″ hex key to securely tighten the setscrew in the hand crank. - Page 6 Bosch Rexroth Corporation Preliminary Adjustments (continued) 2. Clamp Handle Rotary Cam (Figure 4) The clamp must hold two belts securely to the table. Check it with two pieces of the type of belt that you will be grinding, making sure that it...
- Page 7 Linear Motion and Assembly Technologies 4. Bevel Length Adjustment (Figures 6 and 7) The belt grinder is preset to provide the correct bevel length for TSplus conveyor transport belts, which is 60mm (Figure 6). If adjustment is needed, the slope of the table can be increased or decreased to provide the proper bevel length.
-
Page 8: Operating Instructions
Bosch Rexroth Corporation Operating Instructions The belt grinder will grind two belts at once, in a single pass. The proper bevel is absolutely critical when welding TSplus transport belts. To ensure proper operation, it is important that all settings outlined on pages 5–7 are checked before grinding belts, and that the following steps are followed carefully. - Page 9 Linear Motion and Assembly Technologies Grinding the belts: 1. Once the belts have been properly positioned, 6. Once the belt has fed completely through and push down on the clamping lever to lock it. the grinder has reached the end of the table, Make sure the belts are held securely.
-
Page 10: Maintenance
Bosch Rexroth Corporation Maintenance Other than replacing the abrasive on the grinding drum as needed, the belt grinder is maintenance- free. Following the checklist and steps below will help ensure safe operation and superior results. WARNING! Make sure the unit is unplugged before performing any maintenance or repair work! •... - Page 11 Linear Motion and Assembly Technologies 6. Peel the backing from the end of the new abrasive cover and attach it to the edge of the drum, then slowly turn the drum clockwise, installing the abrasive in a spiral direction, until the entire drum is covered.
- Page 12 Bosch Rexroth Corporation All rights are held by the Bosch Rexroth Corporation and ROBERT BOSCH GMBH, also regarding patent claims. We retain all powers of disposition, such as for copying and/or for passing-on to third parties. We reserve the right to make technical changes at any time without notice.
