Summary of Contents for Tevion 7” Digital Photo Frame

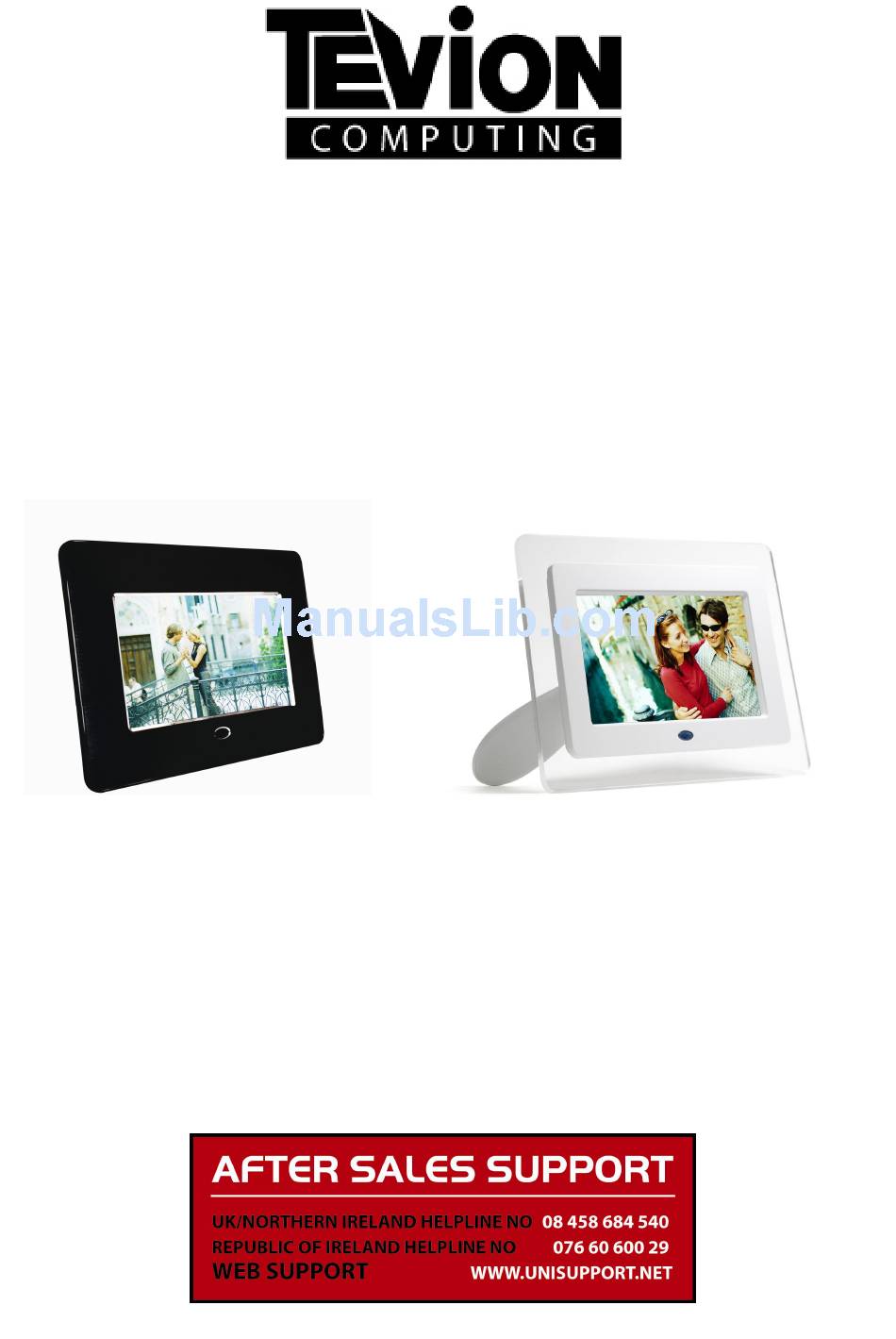

- Page 1 User Manual After Sales Support Having purchased a TEVION Digital Photo Frame you can rest assured in the knowledge that in addition to your 3 year parts and labour warranty you have the added peace of mind of dedicated help lines and web...
-
Page 2: Table Of Contents
Contents Page Introduction General Information and safety Instructions Assembly and Parts List Getting Started Features Instructions Other Useful Information Warranty Card Fault Report Card Helpline No.: UK/N. Ireland: 08 458 684 540 Rep. of Ireland: 076 60 600 29 Web Support: www.unisupport.net P50505... -
Page 3: Introduction
INTRODUCTION With this 7” Digital Photo Frame you can listen to music, watch video files and view digital photos. You do not need a PC or a Laptop in order to use the photo frame. The AV output enables you to view photos on your TV. The photo frame supports the most common memory cards in the market: SD, MMC, MS. -
Page 4: Getting Started
GETTING STARTED Warning: Do not insert the Photo Frame’s DC adaptor into a wall outlet until all connections have been made. Turn on the photo frame on the back. You can now insert either a memory card or a USB stick and start viewing your pictures. - Page 5 Setup the frame STEP 1 Attach the frame stand to the rear panel of the frame, tighten the screw slightly whilst holding the photo frame stand, then adjust the stand to the desired position. Finally fasten the screw to hold the stand in place. STEP 2 Plug the adaptor into the AC outlet, and then insert the DC plug into the frame.
- Page 6 1. Setup In the main MENU, select SETUP, and press the ENTER key to enter the setup menu Interval time between picture Transition effect: select transition effect 5sec, 10sec, 15sec, 30sec, 1min, 3min Browse: select browse mode in PHOTO mode, File Manager mode Thumbnail or File Manager Thumbnail mode...
- Page 7 Auto-Play photos: Auto plays photo slideshow Auto-Play Movie: Auto plays video the files when the photo button on the remote control when the movie button on the remote control is pressed. To enable this mode choose is pressed. To enable this mode choose PHOTO and then ON.
- Page 8 2. PHOTO In the main menu, select PHOTO, and then press either ENTER or PLAY. The system will auto load the USB media or card. If there is no media card inserted the system will return to the main menu. If you select Auto-play ON the system enters into auto play photo.
- Page 9 4. PHOTO + MUSIC In the main menu, select PHOTO+MUSIC, and then press either ENTER or PLAY. The system will auto load the USB media or card. If there is no media card inserted the system will return to the main menu. 5.
- Page 10 6. E-BOOK You may read an E-book with your Tevion 7" Photo Frame as it is set up to read .txt files formats. To view a file select E-BOOK from the main menu. Choose the file that you would like to read and then press ENTER or PLAY.
- Page 11 7. CALENDAR To setup or access the calendar function select CALENDAR from the main menu with either ENTER or PLAY. The system opens the calendar. Helpline No.: UK/N. Ireland: 08 458 684 540 Rep. of Ireland: 076 60 600 29 Web Support: www.unisupport.net P50505...
- Page 12 8. CLOCK Select CLOCK in the main MENU, and then press either the ENTER or the PLAY key. 8.1 Display Clock only Clock & calendar 8.2 Set time 8.3 EXIT Return to main MENU Helpline No.: UK/N. Ireland: 08 458 684 540 Rep.
- Page 13 9. ALARM 9.1 Enable or disable the alarm 9.2 Set time Set the alarm time To stop the alarm press a key 9.3 EXIT Press EXIT in order to return to the main MENU. Helpline No.: UK/N. Ireland: 08 458 684 540 Rep.
- Page 14 10. AUTO-POWER Select Auto-Play menu in main MENU, and then press either the ENTER or the PLAY key. 10.1 Power On enables The function enables or disables the Power On timer 10.2 Power Off enables The function enables or disables the Power Off timer 10.3 Set time The function sets the Power On and Power Off timers 10.4 EXIT...
- Page 15 11. EDIT Select EDIT in main MENU and then press either the ENTER or the PLAY key. In this mode, you can copy photos from media to the built-in flash, or delete photo files from the built-in flash. 11.1 Copy The feature can copy photo files from media to the built-in flash 11.2 Delete The feature can delete photo files from the built-in flash Helpline No.: UK/N.
- Page 16 REMOTE CONTROL Connect to TV set Switch off the photo frame before connecting to a TV set. Plug the RCA cables into the TV set (yellow/video, red/audio right, white/audio left), and then connect it to the photo frame (AV OUT SOCKETS). Switch on the photo frame, and set a correct TV input source.
- Page 17 I cannot switch on the photo frame: Check the AC outlet. Check the adaptor plug. Try to insert another memory card Auto power off: Check the auto power off function No sound: Adjust the volume. If the photo frame is connected to a TV or other AV terminal, you should unplug it.
-
Page 18: Other Useful Information
OTHER USEFUL INFORMATION Specifications 7” 16:9 grade A analogue TFT panel Digital Photo Frame Resolution: 480 x 234 16 : 9 aspect ratio Brightness: 350 cd/mm. Contrast: 300: 1 Built-in card reader slot: SD/MMC/MS up to 4GB ... -
Page 19: Warranty Card
Digital Photo Frame WARRANTY CARD Congratulations! You have made an excellent choice with the purchase of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults during private use within 36 months of the date of purchase we shall be liable for warranty in accordance with statutory warranty regulations provided that: the device was not put to any use other than the intended was not overloaded... -
Page 20: Fault Report Card
Digital Photo Frame FAULT REPORT CARD Name Address E-mail Daytime Tel No Fault Description If you have previously contacted our helpline please provide us with the reference (RMA) number you were issued. In order to deal with your enquiry as quickly and efficiently as possible, we ask you to send your enquiry by e-mail.
