II. HARDWARE DESCRIPTION
A. Card Configuration
The MSI-P602 card is a CMOS design using through-hole and
surface-mounted devices. The card configuration is shown in
Figure 2 and a circuit diagram of the network is given in
Appendix B. The card contains two UARTS (U4 and U5) that
commnucate with the GPS module. Connector J1 provides for
the digital I/O connections.
Jumper block JP1 for interrupt configuration (Pins 1 thru 12)
and JP2 is used for address selection (Pins 1 thru 14), as
described below.

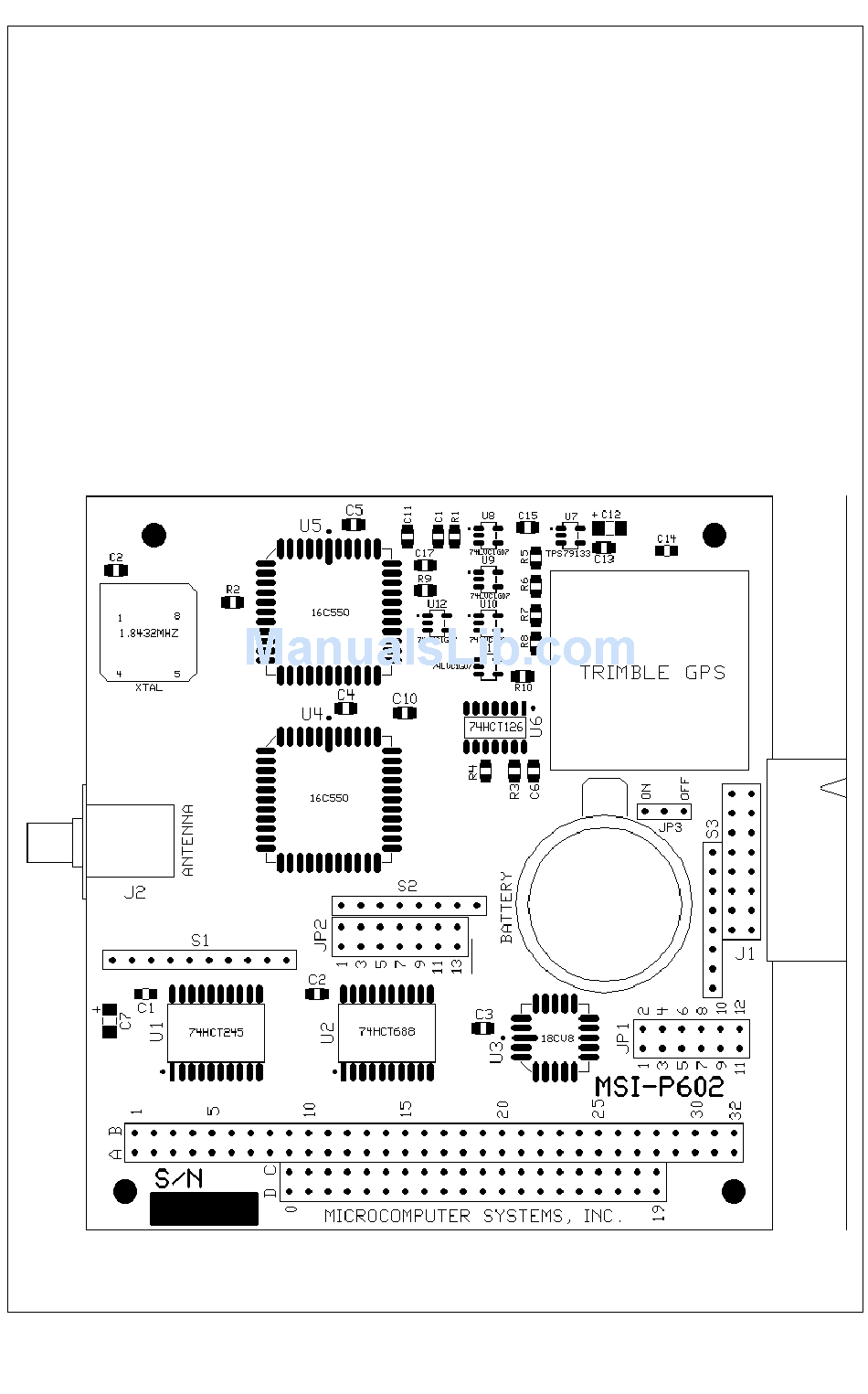

Figure 2. MSI-P602 card outline.
