Nady Audio GEQ 215 Owner's Manual

Graphic equalizer
Hide thumbs Also See for GEQ 215:
Table of Contents

Advertisement

Quick Links

O W N E R ' S M A N U A L
GEQ 215
Graphic Equalizer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEQ 215 and is the answer not in the manual?

Questions and answers

Related Manuals for Nady Audio GEQ 215

Summary of Contents for Nady Audio GEQ 215

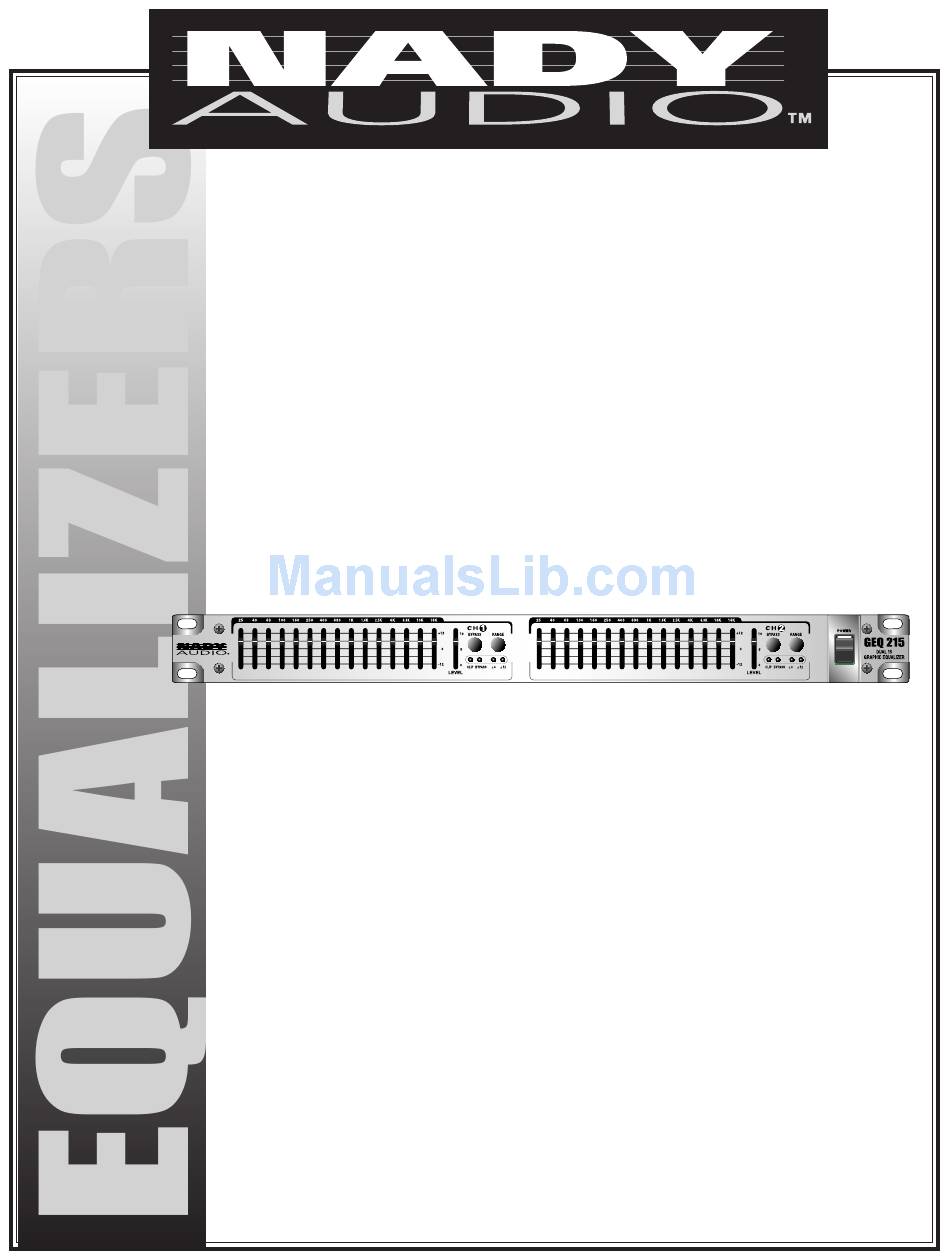

  • Page 1 O W N E R ’ S M A N U A L GEQ 215 Graphic Equalizer...

  • Page 3: Table Of Contents

    G r a p h i c E q u a l i z e r Congratulations on your choice of the GEQ 215 graphic equalizer — you have purchased one of the finest graphic equalizers on the market today. This unit was developed using the expertise of professional sound engineers and working musicians. You will find that your new NADY AUDIO Equalizers has superior performance and greater flexibility than any other equalizers in its price range.

  • Page 4: Warning

    WARNING An equilateral triangle enclosing a lightning flash/arrowhead symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure which may be of sufficient magnitude to constitute a risk of electric shock. ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR An equilateral triangle enclosing an exclamation point is intended to alert the user to the presence of important operating and service instructions in...

  • Page 5: Installation

    • Place the unit on a flat and solid surface or in a rack. • To enjoy your NADY AUDIO graphic equalizer for a long time, please read this owner’s manual thoroughly.

  • Page 6: Operating Instructions

    OpERATING INSTRUCTIONS Before starting to equalize your sound system there is some information you should know and procedures you should follow: 1. Set channel levels to the center detent (0dB-unity gain) on the front panel. 2. Enable the BYPASS switch (Note: The amber LED is ON). 3.

  • Page 7: Front Panel Controls & Connections

    FRONT pANEL CONTROLS & CONNECTIONS 1. power Switch To turn the equalizer ON or OFF, press the upper or lower portion of this button. CAUTION: Always turn on your equalizer BEFORE your power amplifiers are turned on, and always turn off your equalizer AFTER your power amplifiers have been turned off.

  • Page 8: Rear Panel Controls & Connections

    REAR pANEL CONTROLS & CONNECTIONS 7. IEC power Cord Receptacle This is used to connect the AC power source to your equalizer. Power requirements: 115/230VAC, 50/60Hz 8. AC Voltage Selector Set this slide switch to match your line voltage supply. CAUTION: For new installations and portable sound systems, or in any situation in which the AC power is suspect, it is wise to confirm appropriate voltage and line polarity BEFORE connecting the instrument to the power source.

  • Page 9: Typical Set-Up

    B. An equalizer will allow you to eliminate unwanted sounds, like a 60-cycle HUM from a badly grounded amplifier. STUDIO AppLICATIONS A graphic equalizer is one of the most useful tools in the sound engineer’s bag. NADY AUDIO equalizers offer the features and flex- ibility to perform where it counts in the studio.

  • Page 10: Specifications

    SpECIFICATIONS EqUALIzER: Line Voltage Equalizer Control Bands 100-130V AC, 50/60Hz 2X15, 2/3 Octave ISO Spacing From 25Hz to 16KHz 200-240V AC, 50Hz Filter Type power Consumption Constant Q Maximum: 15 watts Slider Travel SIzE: 20mm (Center Detent) 19”W X 1.75”H X 8.66”D (1U) (48.2cm X 4.4cm X 12.7cm) Level Control Range +/-6dB or +/-12dB (Selectable)

  • Page 11: Warranty

    RA number clearly marked on the package. 3) Per the above, Nady will perform all warranty service and return the unit to you at no charge. Nady Systems will inform the buyer if product sent in does not meet the terms of this warranty and will provide a quote for fixing the unit and/or...
  • Page 12 Street, Emeryville, CA 94608. Include a brief description of the problem you are experiencing. For service of a unit under warranty, please follow the instructions in the following section. Outside the U.S. For service or warranty matters please contact the Nady distributor in your country through the dealer/store from which you purchased this product.
