PSDS5RGX
GEProfile ENERGYSTAR
™

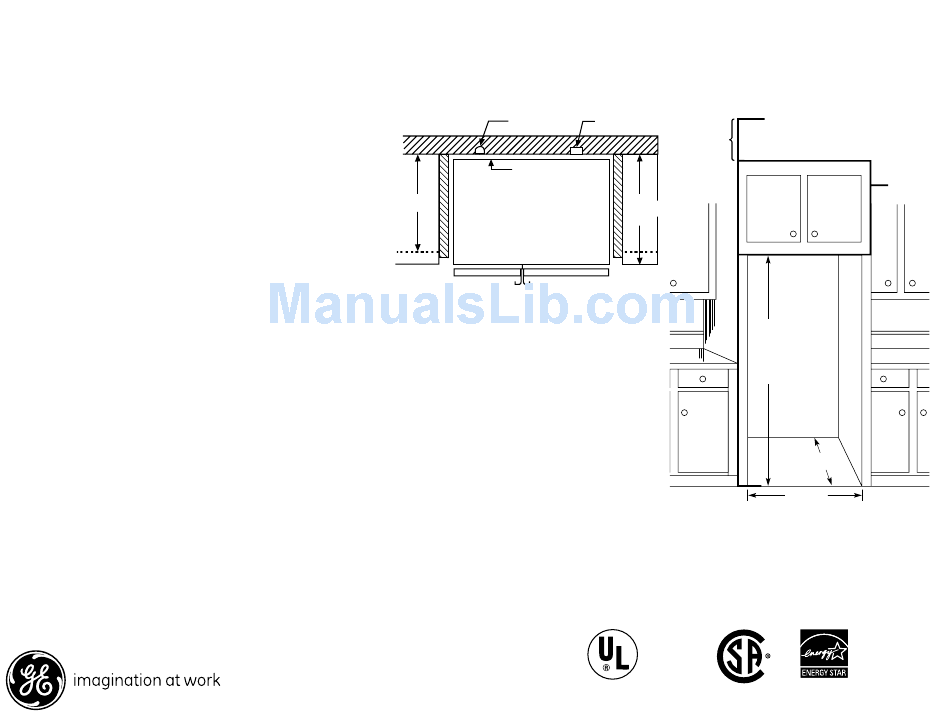

Rough-In Dimensions and Installation Information (in inches)

Installation Tips to Maximize the Built-In Look

• A llwall/floormoldingshouldberemovedpriortoinstallation.
• W aterrecessonrearwallrecommendedtopreventwater
 linedamage.48"minimumlength,1/4"diameterwater
 linetubingrecommended.
• W henpossible,recessbothcopperwaterlineandelectrical
 outlet.(Seelocalcodes)
• F rontandrearlevelinglegsareadjustableforthebuilt-inlook.
 (Seeowner'smanual)
* T herough-indimensionsof70"for23cu.ft.modelsand72-
1/2"for25cu.ft.modelsareminimumandmeasuredfromthe
finishedfloortotopofopening(ortheundersideoftheoverhead
cabinets).ForModelswithTrimKit:Ifframelessstylecabinets
areplannedforabovetherefrigerator,youmayneedtoconsider
addingamaximumof1/4"(70-1/4")toheightofopeningfor23
cu.ft.modelsand1/8"(72-5/8")for25cu.ft.modelstoallowfor
additionalclearancebetweenthecabinetdoorsandthetopof
refrigeratortrimwhenthecabinetdoorsareinopenposition.
†ModelPSDW3YGXis71-3/4"
ForanswerstoyourMonogram, GEProfile
®
GE ® appliancequestions,visitourwebsiteat
ge.comorcallGEAnswerCenter service,
®
800.626.2000.
24.6Cu.Ft.Side-By-SideRefrigerator
®
24"
Cabinet
or
™
FOR 24 CUBIC FOOT MODELS
Water Electrical
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
25"
Counter
Top
Fig 2A eps
*The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2" for 25 cu. ft.
models are minimum and measured from the finished floor to top of opening
(or the underside of the overhead cabinets). For Models with Trim Kit:
If frameless style cabinets are planned for above the refridgerator, you may
need to consider adding a maximum of 1/4" (70-1/4") to height of opening
for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow additional
clearance between cabinet doors and top of refridgerator trim when cabinet
doors are in open position.
†Model PSDW3YGX is 71-3/4".
Listed by
Underwriters
Laboratories
Collar Trim In. w/ceiling
Water
8' Ceiling
12"
Soffit
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
24-1/2"
36-1/8"
As an EnErgy StAr
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
Specification Created 6/08
Electrical
13" to 14"
Cabinet
25"
Counter
Top
Trim
®
