GE Profile PSCS3RGX Datasheet page 2

PSCS3RGX
GE Profile 23.4 Cu. Ft. Side-by-Side Refrigerator with Dispenser

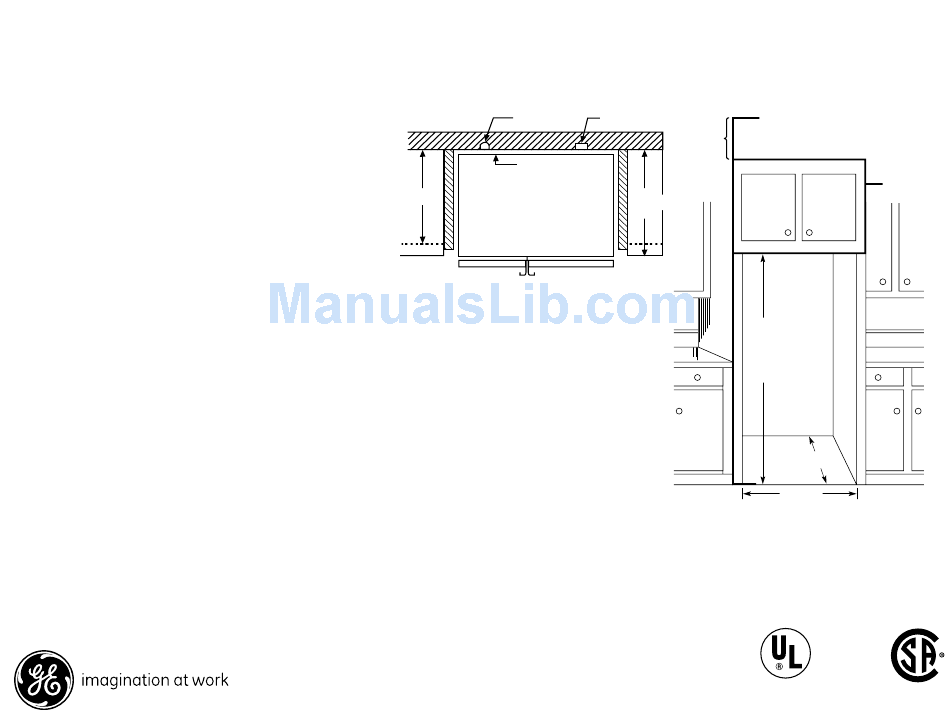

Rough-In Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner's manual)
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from
the finished floor to top of opening (or the underside of the
overhead cabinets). For Models with Trim Kit: If frameless style
cabinets are planned for above the refrigerator, you may need
to consider adding a maximum of 1/4" (70-1/4") to height of
opening for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft.
models to allow for additional clearance between the cabinet
doors and the top of refrigerator trim when the cabinet doors
are in open position.
†Model PSDW3YGX is 71-3/4"
For answers to your Monogram, ®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
GE Profile ™ or
® service,
Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 24 CUBIC FOOT MODELS
Electrical 8' Ceiling
12"
Soffit
24"
25"
Cabinet
Counter
Top
70"*†
Fig 2A eps
23 cu. ft. models
72-1/2"*
25 cu. ft. models
*The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2" for 25 cu. ft.
models are minimum and measured from the finished floor to top of opening
(or the underside of the overhead cabinets). For Models with Trim Kit:
If frameless style cabinets are planned for above the refridgerator, you may
need to consider adding a maximum of 1/4" (70-1/4") to height of opening
for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow additional
clearance between cabinet doors and top of refridgerator trim when cabinet
doors are in open position.
†Model PSDW3YGX is 71-3/4".
Specification Revised 5/08
Collar Trim In. w/ceiling
Water Electrical
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
13" to 14"
Cabinet 25"
Counter
Top
Trim
24-1/2"
36-1/8"
