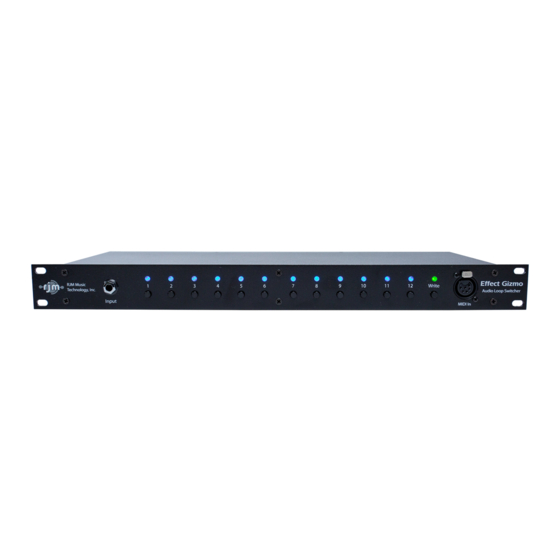

RJM Rack Gizmo User Manual

Audio loop and function switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Rack Gizmo
TM
User's Manual
RJM Music Technology, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rack Gizmo and is the answer not in the manual?

Questions and answers

Related Manuals for RJM Rack Gizmo

Summary of Contents for RJM Rack Gizmo

  • Page 1 Rack Gizmo User’s Manual RJM Music Technology, Inc.
  • Page 3 Rack Gizmo User’s Manual Version 1.0 August 3, 2011 RJM Music Technology, Inc. 2525 Pioneer Ave. Suite 1 Vista, CA 92081 +1-760-597-9450 email: support@rjmmusic.com web: www.rjmmusic.com...
  • Page 4 Copyright © 2011 RJM Music Technology, Inc. All Rights Reserved Amp Gizmo, Effect Gizmo, Rack Gizmo, Click Stopper, MasterMind, Mini Amp Gizmo and the RJM logo are trademarks of RJM Music Technology, Inc.

  • Page 5: Table Of Contents

    Quick Setup Buttons......................................18   Factory Reset.......................................... 19   Troubleshooting ................................20   Grounding Issues ................................21   Specifications ..................................22   Amp Connector Pinout ...................................... 22   Front Panel MIDI Connector..................................... 23   Rack Gizmo MIDI Implementation Chart ........................24   Warranty ..................................27...

  • Page 6: Introduction

    Because the audio loops contain no active circuitry, the Rack Gizmo can work with any effects device regardless of signal level. Your Rack Gizmo has four mono loops and four stereo capable loops (unless yours was ordered with the 8 stereo loop option).

  • Page 9: Front Panel

    A note about jack normalling Many of the jacks on the Rack Gizmo are normalled, meaning that they are internally connected to another jack inside the unit. A pair of normalled jacks is indicated on the rear panel by a line leading from one jack to another. The signal is normalled from the front panel input, through the buffer, through the first 4 loops, and then through the Click Stopper circuit.
  • Page 10 20. Amp 2 – Connect an amplifier interface cable from this jack to the footswitch jack of your amplifier. This connection enables the Rack Gizmo to control all the footswitch-accessible functions of your amplifier. 21. Amp 1 – Connect a second amplifier interface cable from this jack to the footswitch jack of a second amplifier. This is particularly useful for a stereo rig, where you are using two identical amplifiers, or in an A/B rig, where you have two amps, but are using only one at a time.
  • Page 11 Rack Gizmo. If you use a 9VAC adapter to power the Rack Gizmo, the phantom power output will be 12VAC. 24. Gnd Lift – This switch controls whether or not the Rack Gizmo chassis is grounded. If the button is out, the chassis is grounded.

  • Page 12: Special Features

    Connect Buffer In to a loop send, and Buffer Out to the same loop’s return. You can put the buffer in any of the Rack Gizmo’s loops in this way. You probably will want to leave the loop containing the buffer switched on at all times, but you do have the option of switching it on and off as you wish.

  • Page 13: Function Switching A.k.a. Controlling Your Amp

    Please visit the RJM Music website to see a list of amps the Rack Gizmo supports. If your amp is not listed there, please contact technical support – we may still be able to find a solution for you.

  • Page 19: Midi Usage

    MIDI Usage The Rack Gizmo can receive MIDI messages from any MIDI footswitch or other MIDI controller. By storing different settings, or “patches” for different MIDI program numbers, you can automatically recall a stored patch by sending the correct MIDI program number from your footswitch. You can assign which audio loops are on for each and every patch.

  • Page 20: Bank Selection

    Bank Selection The Rack Gizmo can store programs in MIDI banks 0 and 1, for a total of 256 programs. Continuous Controller #0 (Bank MSB) is used to select the current MIDI bank. Bank numbers above bank 1 are ignored.

  • Page 21: Setup Mode

    Hold the Audio Loop 1 button while powering the Rack Gizmo on. Keep holding the button until the LEDs flash. The Audio Loop buttons will then allow you to select the MIDI channel the Rack Gizmo responds to as well as set other MIDI related options.

  • Page 22: Gcx Compatibility Mode

    Bank Select Enable Function Switch 8 controls whether or not the Rack Gizmo will allow MIDI bank selection. When Function Switch 8 is off, the Rack Gizmo will ignore MIDI bank select messages. When Function Switch 8 is on, the Rack Gizmo will respond to bank select messages as described on page 15.

  • Page 23: Group Mode

    Hold Function Switch 7: First three switches grouped and momentary. (Bogner Ecstasy, EVH 5150III) Hold Function Switch 8: First four switches grouped and momentary. (Marshall Mode 4) Once the button has been held and the LEDs have flashed, release the button and the Rack Gizmo will go directly to normal operating mode.

  • Page 24: Factory Reset

    To restore the Rack Gizmo to the factory settings, hold the Audio Loop 1 and Audio Loop 4 buttons while powering up the Rack Gizmo. All of the LEDs will turn on for a few seconds, then turn off. Once they turn off, factory reset is complete...

  • Page 25: Troubleshooting

    The MIDI output of your MIDI controller should be connected to the MIDI input of the Rack Gizmo by a MIDI cable that’s known to be working correctly. The next most likely cause is that the Rack Gizmo is set to a different MIDI channel than your MIDI controller.

  • Page 26: Grounding Issues

    So, if you’re experiencing hum, what do you do? Step 1: Press the Gnd Lift button on the back of the Rack Gizmo. This will either connect or disconnect the ground connection to the Rack Gizmo’s metal enclosure. (In means disconnected (lifted), out means connected). If you’re lucky, that will solve the problem.

  • Page 27: Specifications

    Amp 1 and Amp 2 jacks. Please note that the amplifier jacks are not electrically connected to each other or to any other part of the Rack Gizmo circuit, so it’s safe to connect a different amp to each jack.

  • Page 28: Front Panel Midi Connector

    Front Panel M IDI Connector The front panel MIDI connector is a female 6-pin XLR connector. This connector carries MIDI data in both directions as well as phantom power. This connector is wired in parallel with the rear panel MIDI input, so it is very important to only use one of the two connectors at a time.

  • Page 29: Rack Gizmo Midi Implementation Chart

    Rack Gizmo MIDI Implementation Chart MIDI Implementation Chart v 2.0 (Page 1 of 3) Manufacturer: RJM Music Technology, Inc. Model: Rack Gizmo Version: 1 Date: August 3, 2011 Transmit/Export Recognize/Import Remarks 1. Basic Information MIDI Channels 1-16 1-16 Channel 1 is set by default...
  • Page 30 MIDI Implementation Chart v 2.0 (Page 2 of 3) Manufacturer: RJM Music Technology, Inc. Model: Rack Gizmo Version: 1 Date: August 3, 2011 Control # Function Transmitted (Y/N) Recognized (Y/N) Remarks Bank Select (MSB) Banks 0 and 1 only Modulation Wheel (MSB)
  • Page 31 MIDI Implementation Chart v 2.0 (Page 3 of 3) Manufacturer: RJM Music Technology, Inc. Model: Rack Gizmo Version: 1 Date: August 3, 2011 Control # Function Transmitted (Y/N) Recognized (Y/N) Remarks Sustain Pedal Alt. CC Range 1 Portamento On/Off Alt. CC Range 1 Sostenuto Alt.

  • Page 32: Warranty

    RJM Music Technology will repair or replace the product free of charge, provided it is returned freight prepaid to RJM Music Technology with a copy of a valid receipt and RMA number. Return shipping will be paid by RJM Music Technology within the U.S.
