Vax Quicklite V-046 Instruction Manual

Bagless upright vacuum cleaner quicklite compact.
Hide thumbs
  • Contents

Advertisement

Table of Contents
www.vax.co.uk

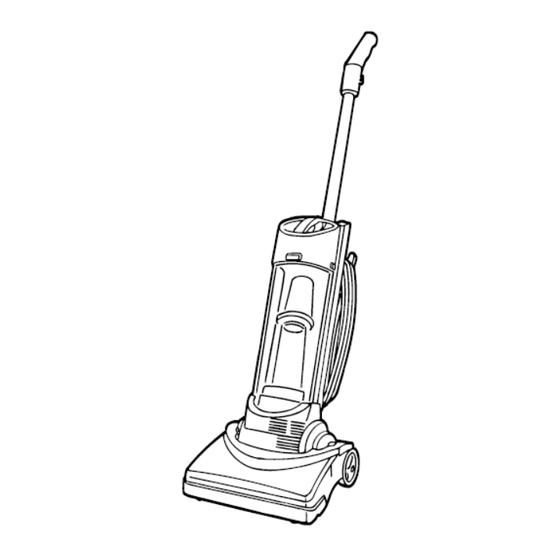

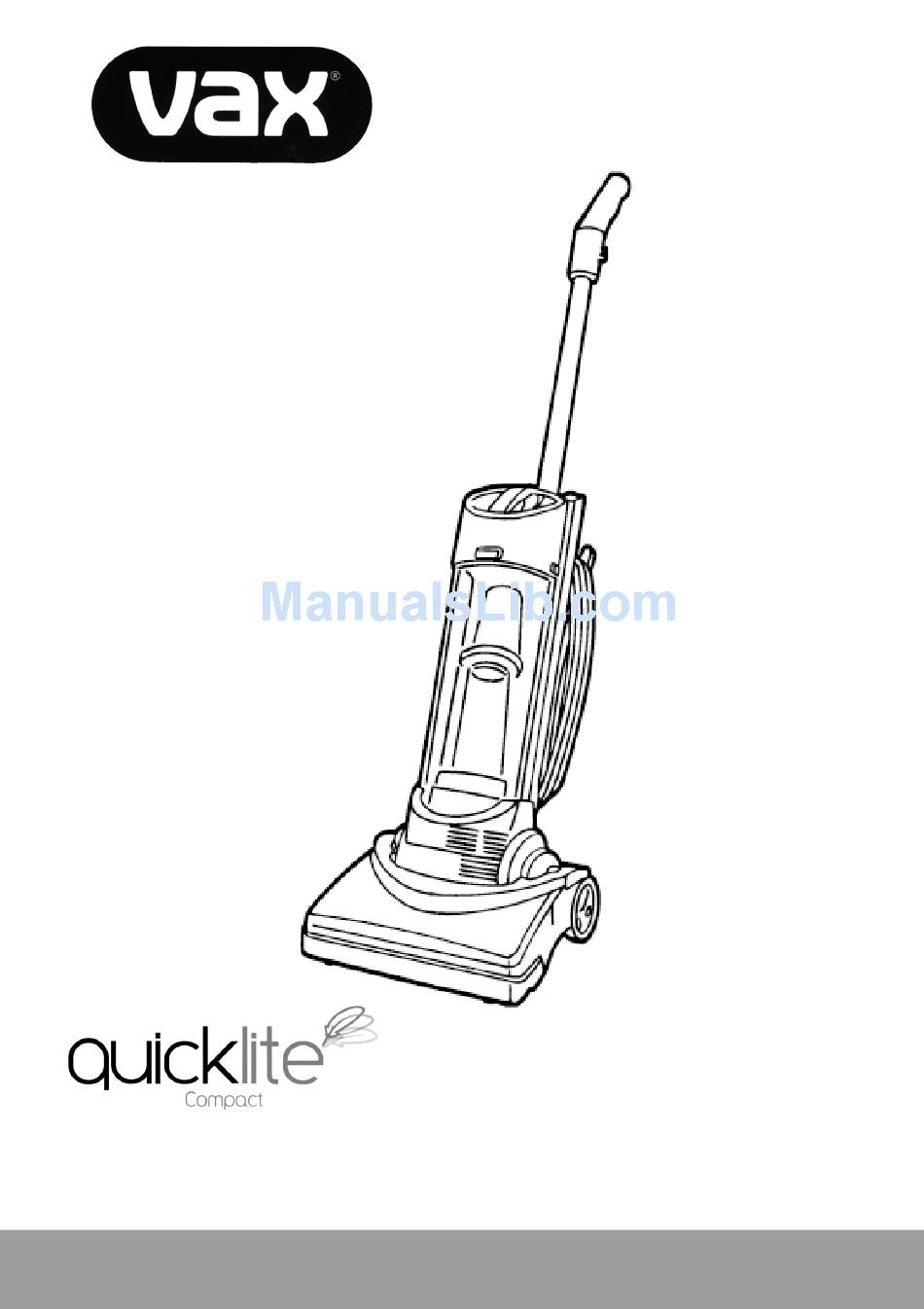

BAGLESS UPRIGHT VACUUM CLEANER
Vax Model Number: V-046

Instruction Manual

Vax Careline:
0870 6061248
Please read carefully before using
the cleaner. Always fully extend the
mains cable before use.
Previous page
Next page

Advertisement

   Related Manuals for Vax Quicklite V-046

   Summary of Contents for Vax Quicklite V-046

  • Page 1: Instruction Manual

    Vax Careline: 0870 6061248 www.vax.co.uk BAGLESS UPRIGHT VACUUM CLEANER Please read carefully before using the cleaner. Always fully extend the Vax Model Number: V-046 mains cable before use. Instruction Manual...
  • Page 2 Parts Overview 1. Diagram Fig.1/1 Handle grip Telescopic handle Cord clip Telescopic handle release button Dirt container release button Upper cord wrap with quick cord On/off switch release Carry handle Power cord Dirt container lid Lower cord wrap with quick cord Filter release Dirt container...

  • Page 3: For Household Use Only

    Do not use the vacuum cleaner if it has been dropped, damaged, left outdoors or dropped into IMPORTANT: water. Return the vacuum cleaner to a Vax Authorised If the vacuum inlet is blocked, switch off the Service Agent or suitably qualified person for vacuum cleaner and remove the blockage(s) before examination, repair or adjustment.

  • Page 4: How To Operate

    Use & Function/How to Operate 4. How To Operate Fig.4/1 Fig.3/2 Cord Release Push down firmly until handle locks into place Turn the quick cord release for easy cord removal. (Fig.3/2). Secure cord in cord clip to keep out of the way while vacuuming (Fig.4/1).

  • Page 5: Floor/carpet Cleaning

    How to Operate/Dirt Container & Filter: Removal & Replacement Fig.5/2 Fig.4/4 Remove by grasping handle on dirt container lid Floor/Carpet Cleaning and turn counter clockwise (Fig.5/2). Move the handle and adjust it to the desired position for (a) operating the cleaner, and (b) lowering handle to clean under furniture (Fig.4/4).

  • Page 6: To Remove Belt

    Dirt Container & Filter: Removal & Replacement/Belt Replacement 6. To Remove Belt Fig.5/6 Return filter to dirt container. Twist filter clockwise Fig.6/1 to lock into position (Fig.5/6). Switch off and remove the plug from mains supply. Lay cleaner flat and flip cleaner to expose base of vacuuming head.
  • Page 7 Belt Replacement To Replace Belt or Brushbar Fig.6/7 With new belt in place, pull and slide brushbar Fig.6/4 into vacuuming head making sure that the Lift and remove brushbar. Dispose of old belt brushbar end caps are in the correct (Fig.6/4).

  • Page 8: Clearing A Blockage

    Replace lower hose and replace one (1) screw An answerphone is available out of these hours. (Fig.7/3). Any queries or concerns about using the Vax, call the Vax Careline. Calls are charged at the UK national rate. Please make a note of the serial number and model number of the carpet cleaner before calling.

  • Page 9: Technical Specification

    Technical Specification 10. Technical Specification Voltage: 220-240V ~50Hz Wattage: 850W Capacity: 2.3 litres max Filters: Fibre pre-motor filter Pleated paper main filter Cord length: 6.4 metres Weight: 4.5 kg Subject to technical change without notice.
  • Page 10 This page has been left intentionally blank.
  • Page 11 This page has been left intentionally blank.
  • Page 12 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the product V-046 Quicklite Compact is manufactured in compliance with the following: Safety: 73/23/EEC Low Voltage Directive, as modified by 93/68/EEC EMC: 89/336/EEC Electromagnetic Compatibility Directive, as modified by 93/68/EEC Waste electrical products should not be disposed of with household waste.
