Summary of Contents for Grundig Music Boy 70

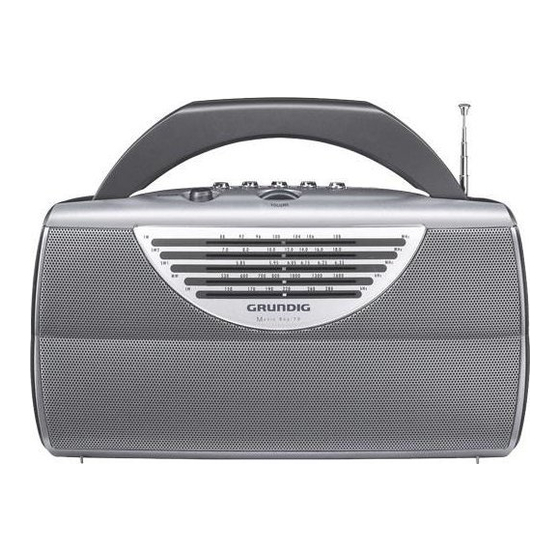

- Page 1 PORTABLE RADIO Music Boy 70...
-
Page 2: Technical Data
SAFETY, INFORMATION _____________________ ENGLISH Safety To ensure that this device provides you with long-term satisfaction and enjoyment, please observe the following instructions. This device is designed for the playback of audio signals. Any other use is expressly prohibited. Protect the device from moisture (water drops or splashes). Do not place any vessels such as vases on the device. - Page 3 OVERVIEW ___________________________________________ 104 106 10.0 12.0 14.0 16.0 18.0 5.85 5.95 6.05 6.15 6.25 6.35 700 800 1000 1300 1600 u s i c B o y 7 0 ON/OFF Controls on the top Switches the device on and off. ON/OFF Selects the frequency band FM (UKW) (88-108 MHz).
-
Page 4: The Display
OVERVIEW ___________________________________________ TONE TUNING • DIST. • LOCAL AC ~ Connection socket for supplied power cable (left side of device). For tuning to radio stations (on the right side of the device). TUNING Switches between short-range and long-range reception • DIST. (on the right side of the device). -
Page 5: Mains Operation
POWER SUPPLY ___________________________________ Mains operation Note: Check that the mains voltage on the type plate (on the bottom of the device) corresponds to your local mains supply. If this is not the case, contact your specialist dealer. Insert the supplied power cable into the »AC ~«... - Page 6 “E”, earth symbol “ ”, coloured green, or green & yel- low. Replacement mains lead sets can be obtained from your local dealer, or by contacting Grundig Consumer Relations (01788 570088) Moulded 3-pin lead set, suitable for UK use: Ref: Leadset UK...
-
Page 7: Switching On And Off
OPERATION __________________________________________ Switching on and off Press »ON/OFF« to switch on the device. – The LED in the »ON/OFF« button lights up red. Press »ON/OFF« to switch off the device. – The LED in the »ON/OFF« button goes out. Radio operation For the best FM and SW reception, it is sufficient to extend the telescopic antenna and direct it accordingly. - Page 8 Grundig Multimedia B.V. Atrium, Strawinskylaan 3105 NL-1077 ZX Amsterdam http://www.grundig.com • • 72011 407 1000...
