GE 49-60468-1 Installation Instructions Manual

Ge 36" built-in bottom-freezer refrigerator installation instructions
Hide thumbs

Advertisement

Quick Links

Design Guide with
Installation
Instructions
"
monogram.com

Advertisement

loading

  Related Manuals for GE 49-60468-1

  Summary of Contents for GE 49-60468-1

  • Page 1: Installation Instructions

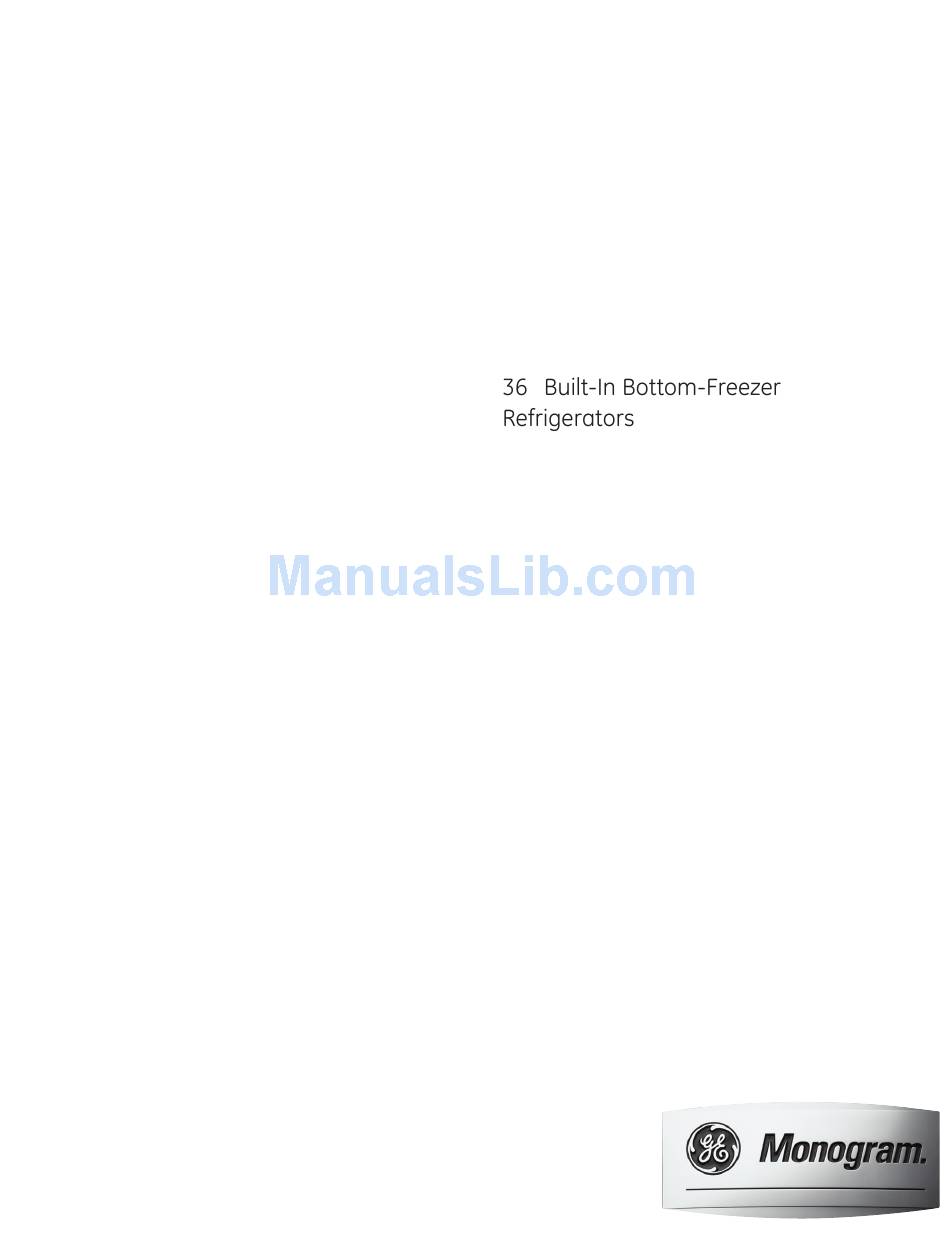

    Design Guide with Installation Instructions ″ monogram.com...
  • Page 3 35-1/2" Finished Width 2-5/16" 6" ″ Electrical 10" Area 84-1/2" max 24" Cutout Depth 83-1/2" min Finished Water Supply Opening 3-1/2" 3-1/2" 5" 5" 10" 10" 3-1/2" ″ ″ ″ 35" Case Width Wall View *83-1/2" Rear 75" From Floor to Bottom of Electrical Area Depth Including Handles: 26-7/8"...
  • Page 4 Refrigerator 23-7/8" From Rear of Refrigerator Case Trim Door 2" 1" 3/4" 1-3/4" 2-3/4" 1/2" 1-1/2" 2-1/2" 1-1/4" 2-1/4" 1/4" 3/4" Overlay Panel (Nominal Size) 1/4" 1/2" 3" 1/4" 1/2" 3/4" 1" 3/4" 1" 1-1/4"...
  • Page 5 Refrigerator Case Trim 23-7/8" From Rear of Refrigerator 1/4" 1/2" 3/4" 1" 1-1/4" 1-1/2" Door 3/4" Overlay 1/4" Panel (Nominal Size) 1/2" 3/4" 1" 1-1/4"...
  • Page 6 3/4" Overlay Panel .10" Thick Spacer Panel Standard Door Handle 1/4" Thick Backer Panel ″ ″ ″ Standard Door Handle Framed Panel ″ ″ ″...
  • Page 7 ″ ″ Grille Panel ″ Fresh Food Panel ″ Freezer Drawer ″ Panel ″ ″ ″ ″ Door ″ ″ ″ ″ ″ ″ ″ ″ ″ ″ ″ ″ Door/Drawer Overlay Panel 1/4" .10 Inch Backer Spacer Panel 5/16" Trim Reveal 1/4"...
  • Page 8 ″ 24" 3/16" 1-7/8" *84" *3" to 4" 2-9/16" Grille Panel ″ ″ ″ ″ ″ ″ ″ ″ Overlay Panel Spacer Panel Backer Panel ″ ″ ″ ″...
  • Page 9 ″ ″ ″ ″ ″ ″ ″ ″ ″...
  • Page 10 ″ ′ ′ ′ ′ ″ ″ Remove Tie-Downs Floor Waterline Tubing...
  • Page 11 Filter Bypass Plug ″ ″ ″ ″ 2 x 4 Cut 35" Length Mounting Installation Bracket Height From Floor Screws Mounted into Vertical Wall Studs ″ Brackets Required Soffit Block Height From Floor Bottom of Wood Block Side View Brackets Not Required Beneath a Soffit...
  • Page 12 ″ ″ 3/4" Min. ″ Side View Top Case Trim Top Case Trim Hex Nut Adjusts Rear Wheels Leveling Leg Install Four 1-1/2" Drywall Screws Through Trim and Into Soffit or 3/4" Min. Wood Brace ″ ″ ″ ″ ″ ″...
  • Page 13 Remove Wire Cover Trim Screws Pin Location For 90° Door Pin Location Swing as Shipped 130° Door Swing Loosen Side Trim Screw Adjust Nut Below Spring to Accommodate Panel Weight Raise Grille Loosen Panel Side Trim Screw...
  • Page 14 ″ Handle Trim Use Front Holes to Secure Trim Use Rear Holes to Secure Handle Door Trim Refrigerator Door ″...
  • Page 15 Door Trim Handle Trim Refrigerator Door Move Forward For 3/4" Panel Use Front Holes to Secure Handle Use Rear Holes to Secure Trim...
  • Page 16 Raise Grille Panel Electrical Master Light Outlet Switch House Refrigerator Water Supply Water Supply ″...
  • Page 17 Supplied Toekick 1/4" or Thicker Toekick...
  • Page 20 NOTE: For Monogram ® local service in your area, call 1.800.444.1845. NOTE: GE Consumer & Industrial...
