Inserting a Media Bay Module Into the External
Media Bay

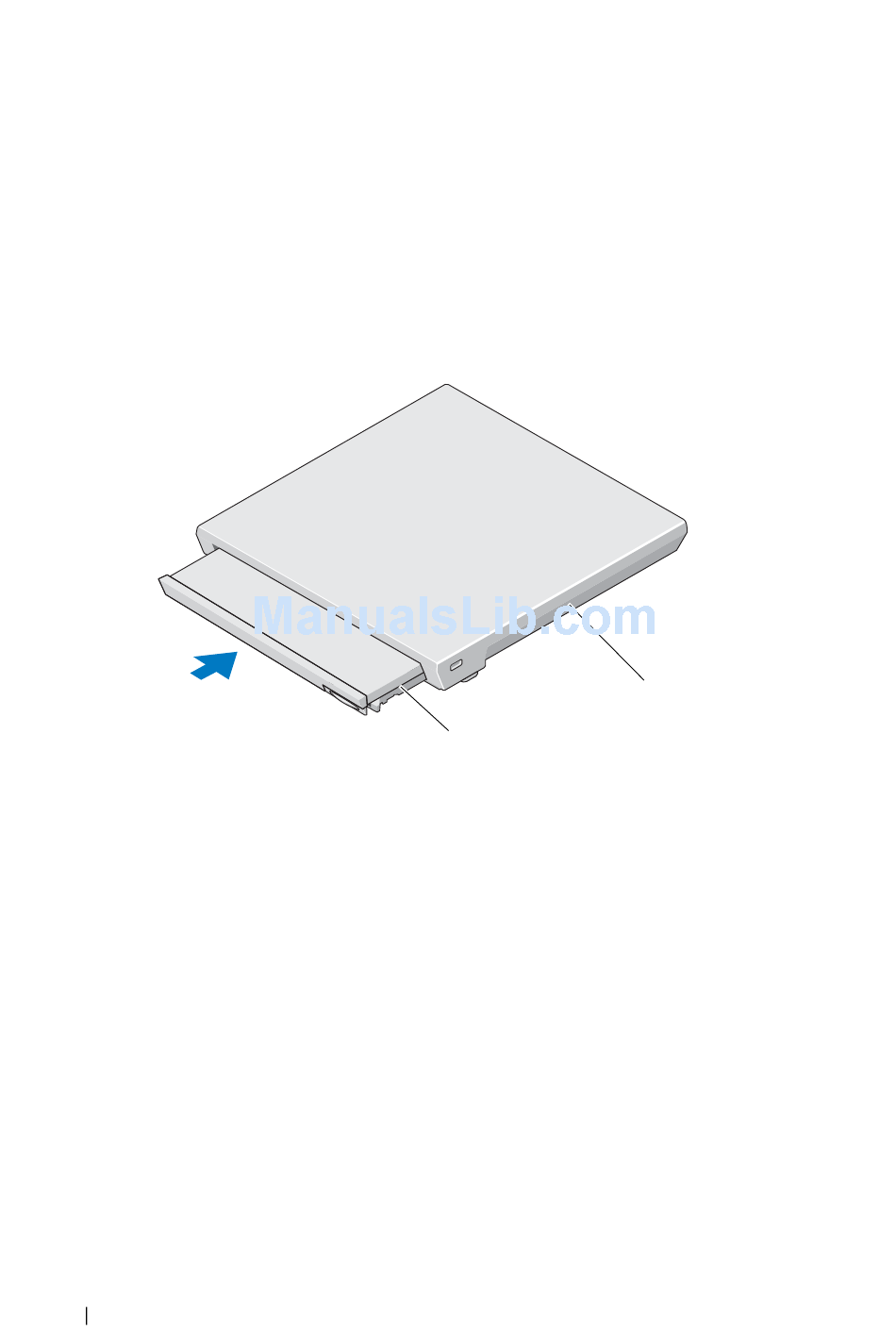

To insert a module into the external media bay:
1 Place the module in the media bay.
2 Push the module until it clicks into place and the release latch secures the
module in the bay.
1 external media bay
D E L L C O N F I D E N T I A L – P R E L I M I N A R Y 7 / 2 2 / 0 8 - F O R P R O O F O N LY
8
Using the External Media Bay
Documents\eDocs\Edocks\emby\en\source\using.fm
2 media bay module
2
1
