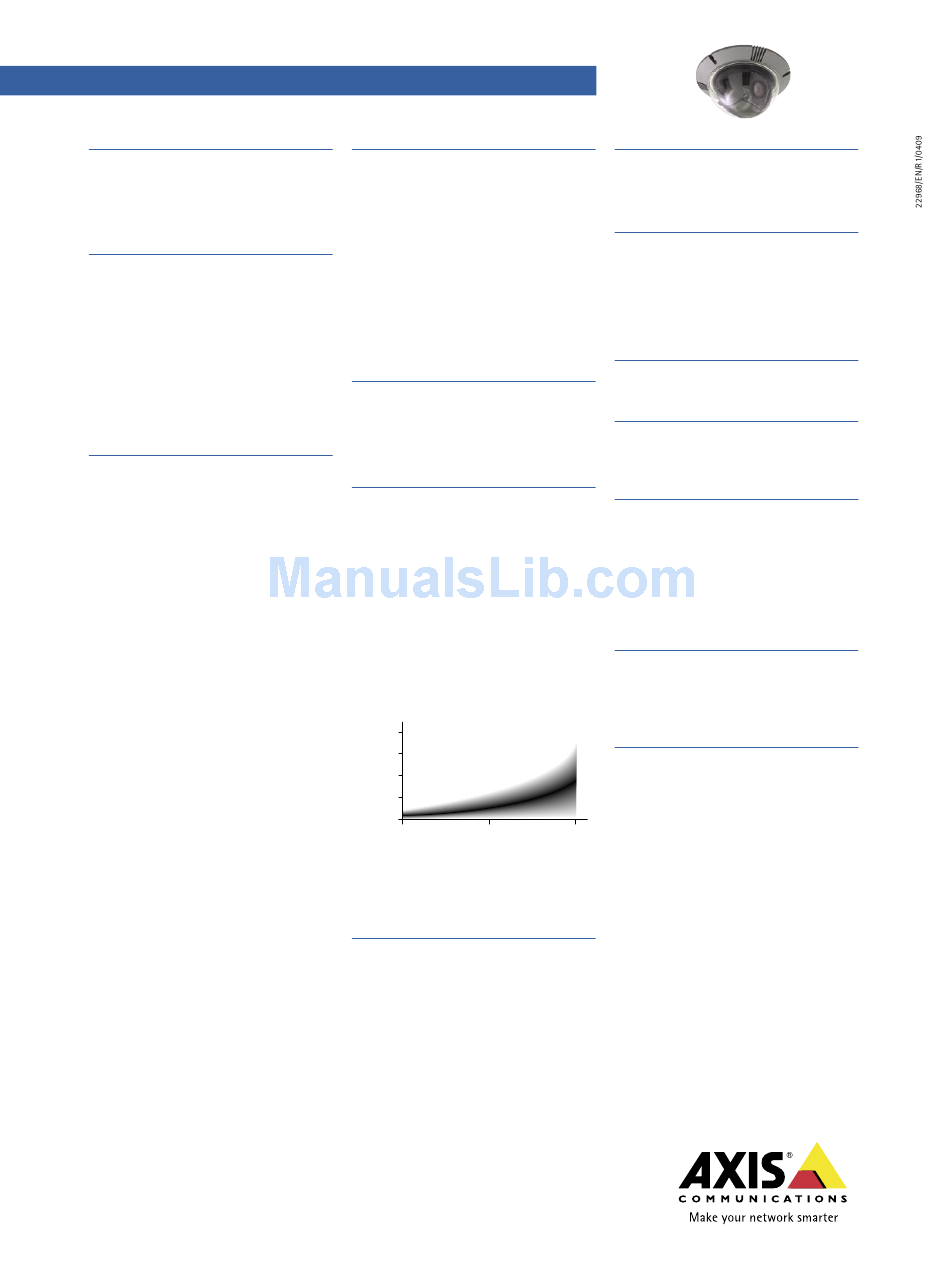

Axis 232D Specifications page 2

AXIS 232D Network Dome Camera
General
• Networked dome camera for remote pan/tilt/
zoom control
• Support simultaneous Motion JPEG and
MPEG-4*
• Built-in 18x optical zoom lens
Functions
• Day/night functionality with automatically or
manually removable IR-cut filter
• Provide 20 presets and 1 sequence
• Scheduled and triggered event functionality
with preset call-up and alarm notification via
e-mail, TCP, HTTP and upload of images via e-
mail, FTP and HTTP
• 9 MB pre and post alarm memory
• Image customization with text, time/date and
image overlay
• Up to 20 simultaneous users
System Requirements
The following specifications apply to the
use of browser-based viewing. When using
an application software, please refer to the
specifications provided with the software.
Hardware
CPU:
• Pentium 4, 1 GHz or higher
• 128 MB RAM
•
Meeting the specification for selected
operating system and browser
Graphic card :
AGP card with Direct Draw support and 16
•
MB video memory (32/64 MB recommended
for high resolutions/color depths)
Software
Supported operating systems:
• Windows XP, 2000, NT4.0, ME and 98, Linux
and Mac OS X
Supported Web browsers:
• Windows - Internet Explorer 5.x or later and
Mozilla 1.4** or later
• Linux - Mozilla 1.4** or later
• Mac OS X - Mozilla 1.4** or later and
Netscape 7.1** or later
©2004 Axis Communications AB. Axis is a registered trademark. All other company names and products are trademarks or registered
trademarks of their respective companies. We reserve the right to introduce modifications without notice.
Hardware & System
• Sony ExView HAD 1⁄4" CCD
• Motorized zoom lens 4.1 – 73.8 mm, F1.4 – 3.0
• Horizontal viewing angle: 48 – 2.8 degrees
• Auto Focus, 18x optical + 12x digital
• AXIS ETRAX 100LX 32-bit RISC CPU
• AXIS ARTPEC-2 video compression chip +
8 MB RAM
• Linux 2.4 kernel
• 32 MB RAM & 8 MB Flash
• Electronic shutter 1 - 1/10.000 sec
• White balance: ATW/AWB/Manual/Indoor/
Outdoor
Connections
• Network: 10BaseT/100BaseTX Ethernet
networks (RJ-45)
• I/O: 4 alarm inputs + 4 outputs (terminal block)
• Power: 24 V AC / 24 VA - external power supply
included
Video
• Equivalent to at least 470 TVL (PAL) / 460 TVL
(NTSC) analog video
• Minimum illumination:
- Color: 0.3 lux at F1.4 (30 IRE)
- B/W: 0.005 lux at F1.4 (30 IRE)
• Frame rate: up to 25/30 frames per second
• Video compression: Motion JPEG and MPEG-
4 (ISMA compliant, Part 2, Advanced Simple
Profile at Level 5)
• Supports 10 different resolutions in both PAL
and NTSC
• Max resolution: 768x576 (PAL)/704x480 (NTSC)
• Min resolution: 176x144 (PAL)/160x120 (NTSC)
• 10 video compression levels
80
Fil
60
e
size
40
(KB)
20
0
Very High Medium
Compression
The file size of a JPEG image depends on factors
such as selected resolution, compression level and
the actual content of the image.
Security
• Multiple user access levels with password
protection
• IP address filtering
• HTTPS Encryption
www.axis.com
Firmware updates
• Flash memory allows firmware updates over
the network using HTTP or FTP over TCP/IP.
Firmware upgrades are available from
www.axis.com
Custom Applications
Designed for system integration and custom
application development by providing:
• AXIS HTTP API
• AXIS Media Control SDK
• Embedded scripting support
• Customized HTML pages
Operating Conditions
Temp: 5-50 º C (41-122 º F)
•
• Humidity: 20-80% RHG
Dimensions and Weight
• Height: 230 mm (9.0")
• Diameter: 144 mm (5.7")
• Weight: 1.93 kg (4.3 lbs) excl. power supply
Approvals
• EMC:
- CE Compliant according to: EN55022/1998
Class A, EN55024/1998, EN61000-3-2:2000,
EN61000-3-3:2000
- FCC Subpart B, Class A
- VCCI Class A
- C-tick AS/NZS 3548
• Safety: EN60950
Included Accessories
• Power supply
• Hard ceiling mounting bracket
• Drop ceiling mounting bracket
• User manual
Available Accessories*** (not included)
• AXIS 23xD IP66-rated Outdoor Housing
• Various mounting brackets for outdoor housing
• AXIS Camera Explorer – basic software for
viewing and manual recording of multiple
cameras
Very Low
• AXIS Camera Recorder – viewing and event-
based recording of up to 16 cameras. Search
tools and motion detection alarm included
• AXIS Camera Station – software for recording
and management of up to 25 cameras.
Advanced search tools, motion detection alarm
and remote client included
* MPEG-4 available as a free software upgrade in Q1 2005
** Limitations in functionality
*** See separate datasheets for more information
This product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit. (http://www.openssl.org/)
