GE QuickClean JBP27BL Dimensions And Installation Information

JBP27WL/CL/BL
GE 30" Free-Standing QuickClean
®

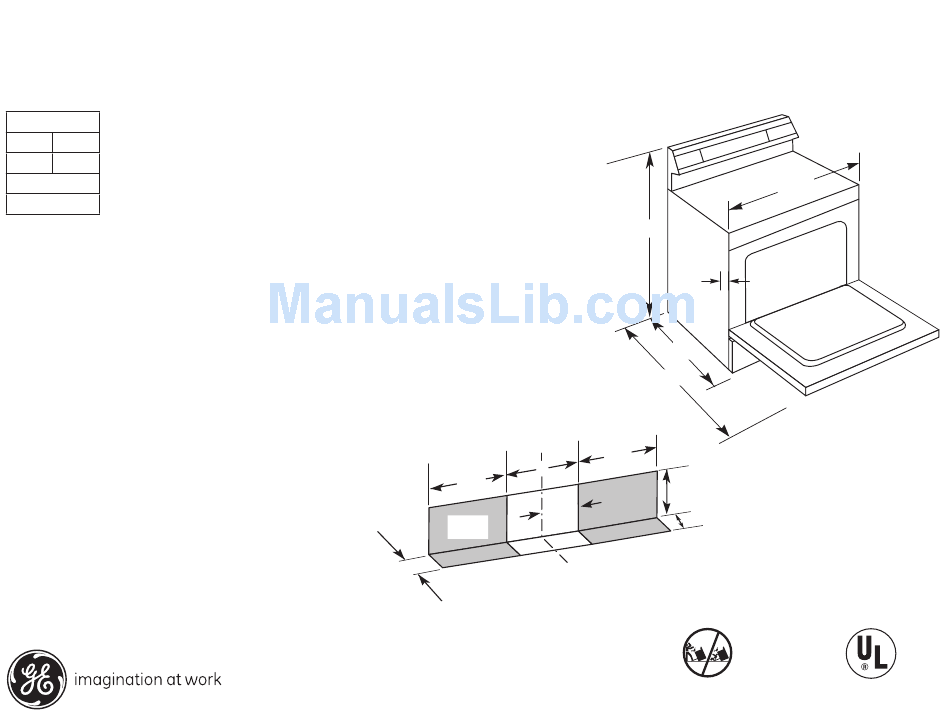

Dimensions and Installation Information (in inches)

KW Rating
240V
11.7
208V 8.8
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing
from adjacent walls below countertops. To reduce possibility
of scorching walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat,
no-load heating element operation.
Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
Electric Range
™
or
™
service,
7
7-1/2
3-1/2
REAR
WALL
2-1/4
CENTER LINE
30" FS Elec. Range ABC Dim.
29-7/8
46-7/8
1/4 †
25-3/8*
47-5/8
7-1/2
5
2-1/4
*Dimension from wall to front of closed door handle is 27-3/4".
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 9/06
*Dimension fro
of closed doo
†
The range may be placed
clearance (flush) at the ba
side walls if the range sid
beyond the cabinet fronts
Self-clean models only.
Listed by
Underwriters
Laboratories
