GE Profile PGB928SEMSS Dimensions And Installation Information

47-3/16
PGB928SEM

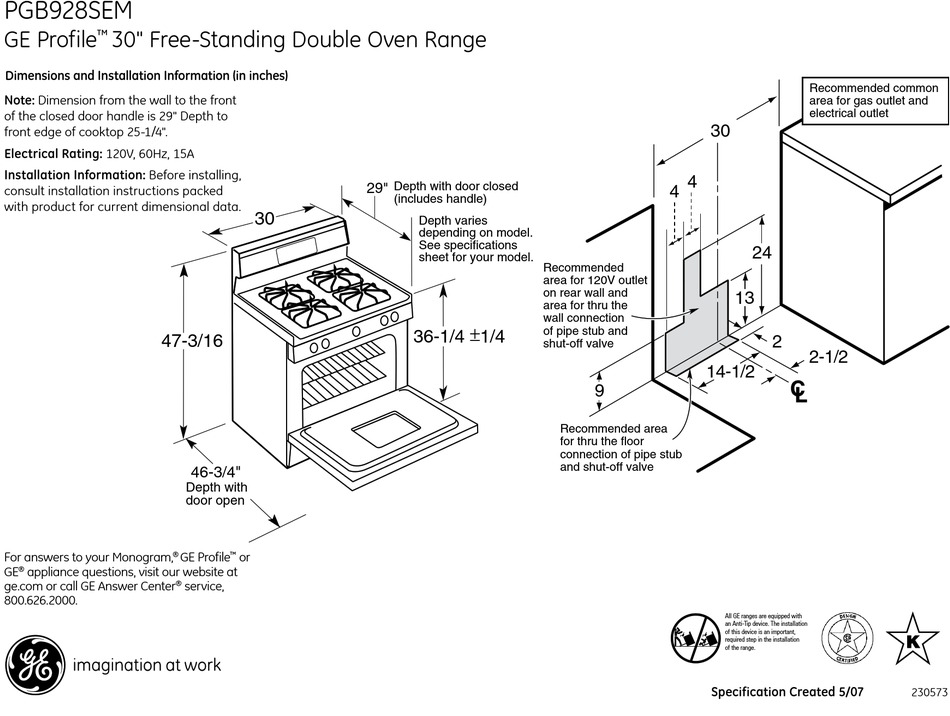

GE Profile 30" Free-Standing Double Oven Range
™
Dimensions and Installation Information (in inches)
Note: Dimension from the wall to the front
of the closed door handle is 29" Depth to
front edge of cooktop 25-1/4".
46-3/4"
Electrical Rating: 120V, 60Hz, 15A
Depth with
Installation Information: Before installing,
door open
consult installation instructions packed
with product for current dimensional data.
47-3/16
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
30
46-3/4"
Depth with
door open
or
™
service,
36-1/4 ± 1/4
29" Depth with door closed
(includes handle)
Depth varies
depending on model.
See specifications
sheet for your model.
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
36-1/4 ± 1/4
of pipe stub and
shut-off valve
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
of pipe stub and
shut-off valve
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
30
4
4
13
14-1/2
9
Recommended area
for thru the floor
30
connection of pipe stub
and shut-off valve
4
4
24
13
All GE ranges are equipped with
an Anti-Tip device. The installation
2
of this device is an important,
required step in the installation
of the range.
14-1/2
9
Specification Created 5/07
Recommended common
area for gas outlet and
electrical outlet
24
2
2-1/2
Recommended common
area for gas outlet and
electrical outlet
2-1/2
230573
