GE Profile P2B912SEMSS Dimensions And Installation Information

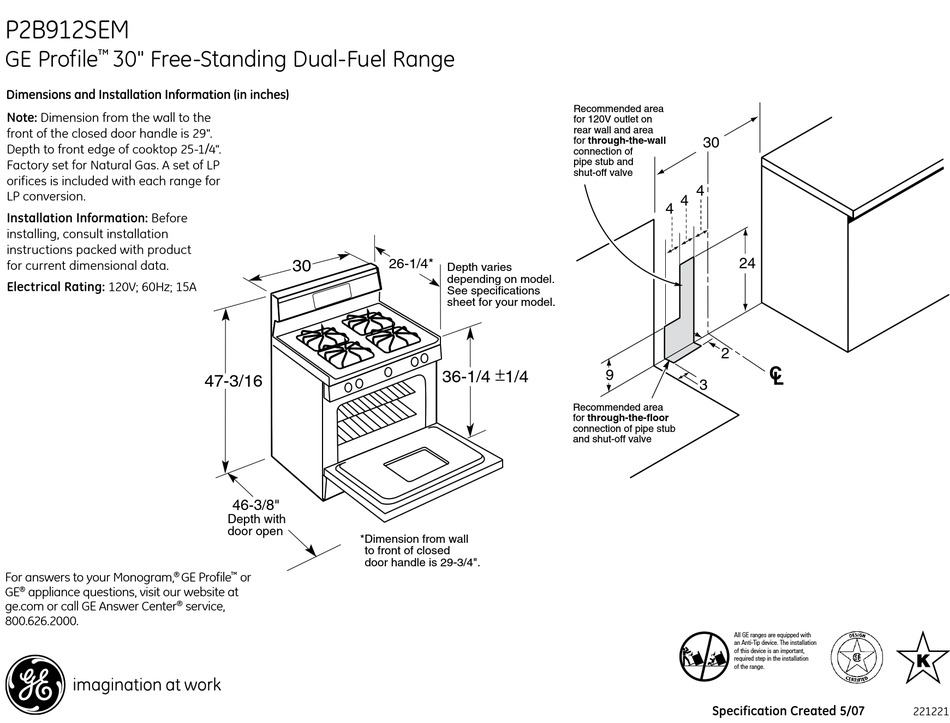

P2B912SEM
GE Profile 30" Free-Standing Dual-Fuel Range
™
Depth with
door open
Dimensions and Installation Information (in inches)
Note: Dimension from the wall to the
front of the closed door handle is 29".
Depth to front edge of cooktop 25-1/4".
Factory set for Natural Gas. A set of LP
orifices is included with each range for
LP conversion.
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
Electrical Rating: 120V; 60Hz; 15A
For answers to your Monogram, ® GE Profile
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
46-3/8"
*Dimension from wall
to front of closed
door handle is 29-3/4".
30
47-3/16
46-3/8"
Depth with
door open
*Dimension from wall
to front of closed
door handle is 29-3/4".
™ or
service,
26-1/4*
Depth varies
depending on model.
See specifications
sheet for your model.
36-1/4 ± 1/4
Recommended area
for 120V outlet on
rear wall and area
for through-the-wall 30
connection of
pipe stub and
shut-off valve
4
4
4
24
2
9
3
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve
Recommended area
for 120V outlet on
rear wall and area
30
for through-the-wall
connection of
pipe stub and
shut-off valve
4
4
All GE ranges are equipped with
4
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
24
Specification Created 5/07
221221
