CHARGING THE VECTORLITE™
1. Connect the charger to an appropriate power source (see below DC or AC Source).
2. Plug the charger's barrel connecter into the Recharge Port (see Figure 1).
3. Recharge for approximately 12 - 15 hours maximum or until the green LED is lit.
4. After recharge, disconnect the barrel connector from the Recharge Port and store the adapter.
5. Disconnect charger and wait 2 minutes before use.
AC SOURCE
Recharging from an AC outlet requires the use of the AC/DC Recharge Adapter (Figure 2). Make
sure the AC outlet provides 110 to 120 VAC at 60 Hz.
DC SOURCE
Plug the DC fused Recharge/Power Adapter (Figure 3) into the Recharge Port on the back of the
spotlight body, and then insert the power plug into the accessory socket of your vehicle or other 12V
DC power source. Make sure the spotlight is OFF and the Trigger Switch is in the OFF position. Allow
approximately 10 - 12 hours charging time. Recharge until the green Battery Status LED is lit. Make
sure the DC source (jump starter, battery pack, vehicle accessory socket, etc.) is 12 Volt DC.
Figure 2. AC Recharge Adapter
Caution: Use the supplied AC Recharge adapter only; do not substitute with any other.
AC Recharge requires the use of the supplied AC Recharge Adapter that supplies 12 volts DC.
Charge for approximately 12 - 15 hours or until the green Battery Status LED is lit.

5. PERIODIC MAINTENANCE

All batteries lose charge over time, especially when they are warm. AC recharge is recommended
every two months, when not in frequent use. Use the AC recharger and charge for the recommend-
ed time. If the unit has dirt on it, gently clean the outer surfaces of the spotlight unit with a soft cloth
moistened with a mild solution of water and detergent. Periodically inspect the condition of recharge
adapters, connectors, and wires. Replace any components that may have become worn or broken.
6. PARTS REPLACEMENT
Three parts are replaceable by users. The quartz halogen bulb and sealed lead acid battery are pro-
prietary and are available through the manufacturer. A substitute 6 volt H3 55 watt bulb may be
used instead of a Vector bulb. These can also be purchased from popular automotive parts suppli-
ers nationwide. The DC charging adapter fuse is also replaceable. Contact Technical Support for
replacement parts and any additional information that you may need. They may be reached toll free
at (800) 544-6986.

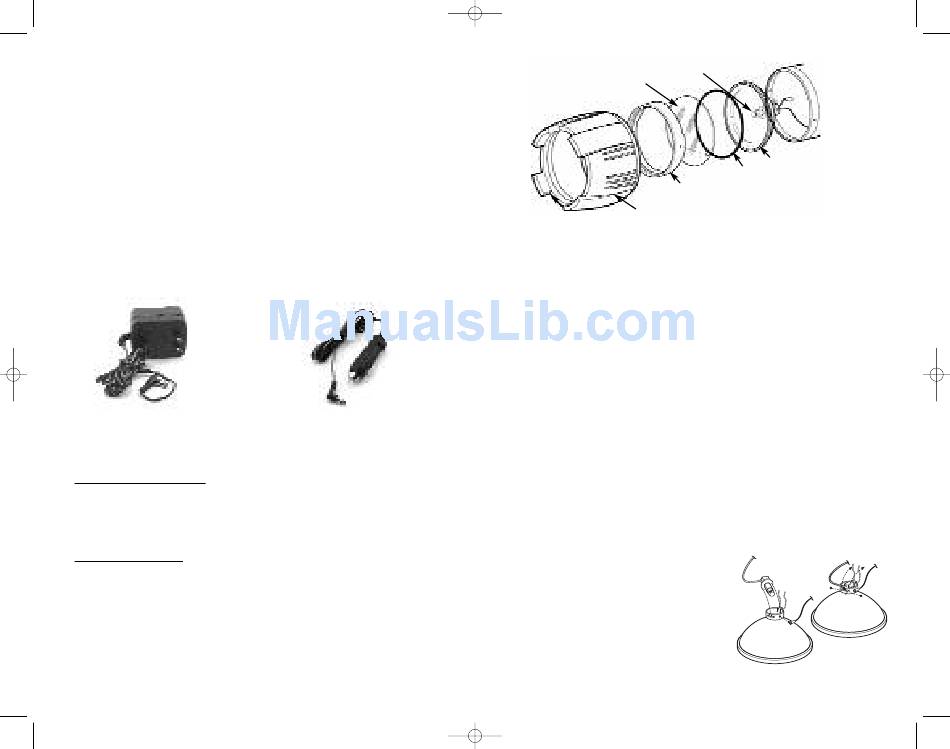

Figure 4 shows the VectorLite assembly. Use this illustration for bulb replacement.
4
9:27 AM Page 4
Figure 3. DC Recharge Adapter
Quartz Halogen Bulb
Lens
Retaining Ring
Rubber Guard Cover
SPOTLIGHT BULB REPLACEMENT
To replace the H3 type 6 volt bulb you will need a small Phillips type screwdriver and a replacement
bulb (Vector Part VEC193). Bulb life may be shortened by installing a bulb with dirt or fingerprints
on it. The bulb can be wiped clean with a cloth moistened with alcohol. During bulb installation,
avoid touching the glass part of the bulb (See Figures 5a and 5b for details).
1. Disconnect the unit from any charging adapters.
2. Push forward the rubber bezel towards the front of the spotlight to reveal two small Phillips
screws in the Retaining Ring.
3. Using the screwdriver, remove (counter-clockwise) the two screws and set them aside.
4. Lift off the Retaining Ring, glass lens and rubber O ring and set them aside.
5. Carefully remove the reflector and bulb assembly (See figures 5a and 5b).
6. Disconnect the bulb wire from the power wire.
7. Unsnap the hairpin retaining wires from the reflector's flange.
8. Using the screwdriver, loosen the retaining screw to remove the bulb from the reflector
(no need to completely remove this screw).
9. Lift out the bulb and the attached wire.
10. Insert the replacement bulb into the reflector's flange.
11. Put back and secure the hairpin retaining wires.
12. Connect the bulb power wire to the power wire.
13. Tighten the retaining screw on the flange.
14. Place the reflector in position in the body of the spotlight.
15. Replace the rubber O ring in the groove around the perimeter of the reflector.
16. Replace glass and retaining ring so that the screw holes are aligned.
17. Secure retaining ring with two screws.
18. Replace rubber bezel.
19. Operate switch to ensure proper operation of spotlight.
Figure 5. Spotlight Replacement
Reflector
Rubber O Ring
Figure 4 Location Diagram
Open
Closed
Figure 5b
Figure 5a
5
