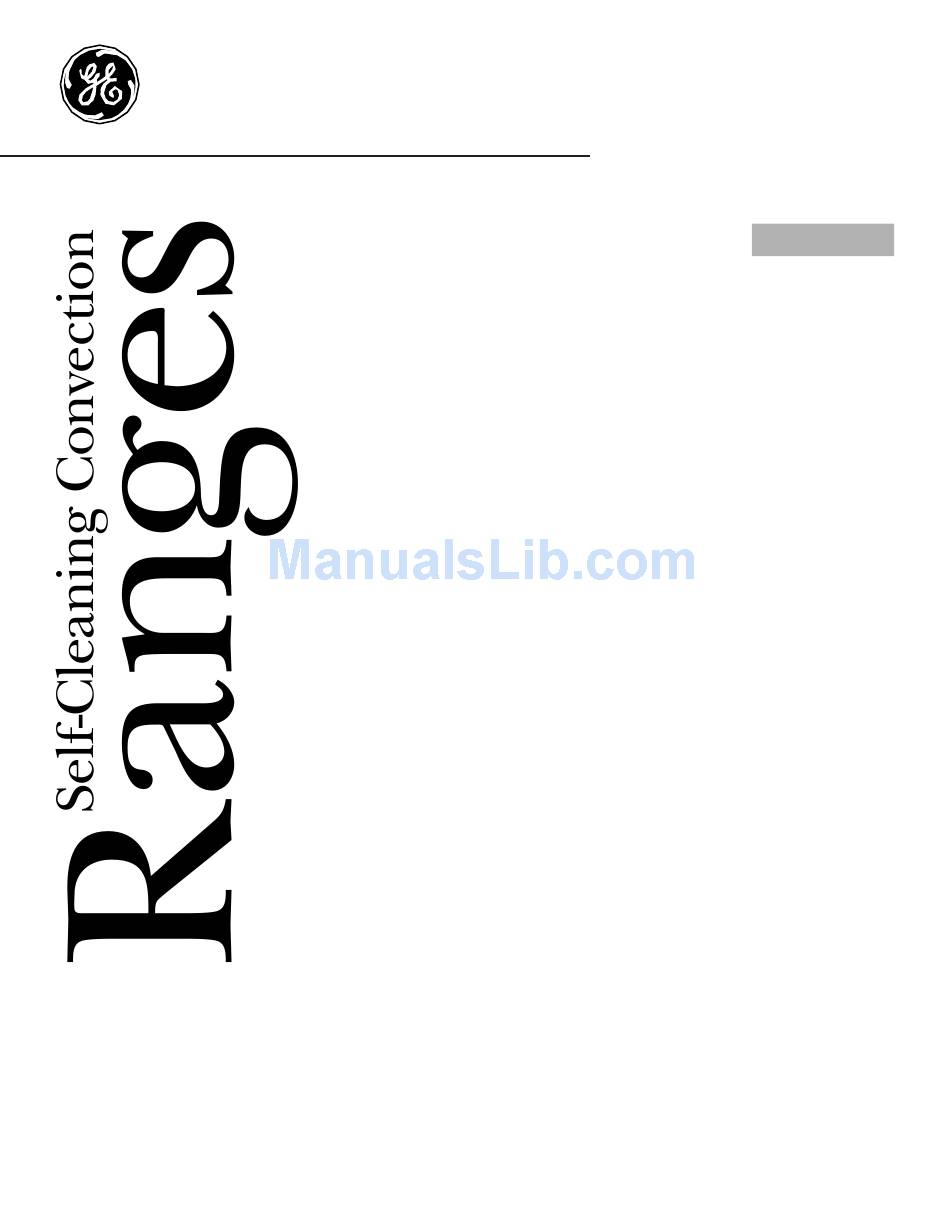

GE JBP74 Owner's Manual

Self-cleaning convection ranges
Hide thumbs Also See for JBP74:

Advertisement

Quick Links

Safety Instructions
. . . . . . . . . . . 2-7
Operating Instructions
Broiling Guide . . . . . . . . . . . . . . . .13
Clock and Timer . . . . . . . . . . . . . .14
Convection . . . . . . . . . . . . . . .16-19
Cookware . . . . . . . . . . . . . . . . . . . .10
Oven . . . . . . . . . . . . . . . . . . . . .11-25
Oven Thermostat . . . . . . . . . . . . . .23
Sabbath Feature . . . . . . . . . . . . . . .22
Self-Cleaning . . . . . . . . . . . . . .26, 27
Special Features . . . . . . . . . . . .20, 21
Surface Units . . . . . . . . . . . . . . . . 8, 9
Timed Baking & Roasting . . . . . . .15
Warming Drawer . . . . . . . . . . .24, 25
Control Knobs . . . . . . . . . . . . . . . . 28
Glass Cooktop . . . . . . . . . . . . . 33, 34
Lift-Off Oven Door . . . . . . . . . . . . 29
Light . . . . . . . . . . . . . . . . . . . . . . . .31
Removable Drawer . . . . . . . . . . . .30
Shelves . . . . . . . . . . . . . . . . . . . . . . 32
Surfaces . . . . . . . . . . . . . . . . . . . . .32
. . . . . . 35-38
. . . . . . . . . . . . . . . . . . 42
Consumer Support
Consumer Support . . . . Back Cover
Product Registration . . . . . . . . 39, 40
Warranty . . . . . . . . . . . . . . . . . . . . 43
Write the model and serial
numbers here:
Model # ________________
Serial # ________________
You can find them on a label
behind the storage drawer on
the front of the range frame.
ge.com
Owner's Manual
JBP74
JBP77
JBP84
49-80462-1 09-07 JR

Advertisement

Table of Contents
loading

Summary of Contents for GE JBP74

  • Page 1: Table Of Contents

    Warranty ....43 Write the model and serial numbers here: Model # ________________ Serial # ________________ You can find them on a label behind the storage drawer on the front of the range frame. Owner’s Manual JBP74 JBP77 JBP84 49-80462-1 09-07 JR...
  • Page 2: Important Safety Information

    If you pull the range out from the wall for any reason, make sure the device is properly engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door.
  • Page 3: Safety Precautions

    Mark it for easy reference. Do not attempt to repair or replace any part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
  • Page 4 To minimize the possibility of burns, ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units. Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 5 Do not leave plastic items on the cooktop—they may melt if left too close to the vent. Do not lift the cooktop. Lifting the cooktop can lead to damage and improper operation of the range. ge.com ®...
  • Page 6 READ ALL INSTRUCTIONS BEFORE USING. WARNING! OVEN Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes. Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.
  • Page 7 Do not use aluminum foil to line the lower oven drawer. Foil is an excellent heat insulator and will trap heat beneath it. This will upset the performance of the drawer and it could damage the interior finish. ge.com...
  • Page 8: Using The Surface Units

    Using the surface units. Throughout this manual, features and appearance may vary from your model. How to Set Push the knob in and turn in either direction to the setting you want. At both OFF and HI the control clicks into position.
  • Page 9 Do not slide cookware across the cooktop because it can scratch the DRAGGING glass—the glass is scratch resistant, not scratch proof. ge.com CAUTION: Do not warm food on the WARMING ZONE for more than two hours. NOTE: The surface warmer will not glow red like the cooking elements.
  • Page 10: Surface Units

    Selecting types of cookware. The following information will help you choose cookware which will give good performance on glass cooktops. Stainless Steel: recommended Aluminum: heavy weight recommended Good conductivity. Aluminum residues sometimes appear as scratches on the Check pans for flat bottoms by cooktop, but can be removed if cleaned using a straight edge.
  • Page 11: Oven

    Touch this pad to select roasting with the convection function. CLEAR/OFF Pad Touch this pad to cancel ALL oven operations except the clock and timer. OVEN LIGHT Pad Touch this pad to turn the oven light on or off. ge.com...
  • Page 12: Using The Oven

    Using the oven. To avoid possible burns, place the shelves in the desired position before you turn the oven on. Before you begin… The shelves have stop-locks, so that when placed correctly on the shelf supports (A through F), they will stop before coming completely out, and will not tilt.
  • Page 13 How to Set the Oven for Broiling If your range is connected to 208 volts, rare steaks may be broiled by preheating the broiler and positioning the oven shelf one position Leave the door open to the broil higher. stop position. The door stays open...
  • Page 14 Using the clock and timer. To Set the Clock CLOCK The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a timed baking or self-cleaning cycle.
  • Page 15: Timed Baking & Roasting

    Touch the START pad. (on some models) ge.com The word ON and 100° will be displayed. The cook time will begin to count down. As the oven heats up, the display will show the changing temperature.
  • Page 16: Using The Convection Oven

    Using the convection oven. The convection oven fan shuts off when the oven door is opened. DO NOT leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element. To help you understand the difference between convection bake and roast and traditional bake and roast, here are some...
  • Page 17 Touch the number pads to set the desired oven temperature. Touch the START pad. ™ conversion ge.com Metal and Glass Any type of cookware will work in your convection oven. However, metal pans heat the fastest and are recommended for convection baking.
  • Page 18: Convection Roasting Guide

    Using the convection oven. Convection Roasting Guide Meats Beef Pork Lamb Seafood Poultry * Stuffed birds generally require 30–45 minutes additional roasting time. Shield legs and breast with foil to prevent overbrowning and drying of skin. † The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.
  • Page 19 Touch the number pads to set the time of day you want the oven to turn on and start cooking. Touch the START pad. ge.com The display shows the oven temperature that you set and the cooking time countdown. The display starts changing once the temperature reaches 100°F.
  • Page 20: Special Features Of Your Oven Control

    Special features of your oven control. Your new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them. The special feature modes can only be activated while the display is showing the time of day. They remain in the control’s memory until the steps are repeated.
  • Page 21 To deactivate the feature: To reactivate the feature, repeat steps 1–3 above but touch the START pad when CON ON is in the display. ge.com Touch the BAKE and BROIL HI/LO pads at the same time until the display shows SF.
  • Page 22 Using the Sabbath Feature. (Designed for use on the Jewish Sabbath and Holidays) (on some models) The Sabbath feature can be used for baking/roasting only. It cannot be used for convection, broiling, self-cleaning or Delay Start cooking. NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the door is closed. The bulb may be removed.
  • Page 23 For example, to change the oven temperature 15°F, touch 1 and 5. ge.com When you have made the adjustment, touch the START pad to go back to the time of day display.
  • Page 24: Using The Warming Drawer

    Using the warming drawer. The warming drawer will keep hot, cooked foods at serving temperature. Always start with hot food. Do not use to heat cold food other than crisping crackers, chips or dry cereal. To Use the Warming Drawer To cancel, touch the WARMING DRAWER pad.
  • Page 25 CAUTION: Dishes will be hot. Use pot holders or mitts when removing hot dishes. Food Type Control Setting Bacon Breads Casserole Chicken, fried Muffins Pies Pizza Potatoes, baked Tortilla chips CAUTION: Do not keep food in the warming drawer for more than two hours. ge.com...
  • Page 26: Using The Self-Cleaning Oven

    ⁄ hours and 5 hours, Touch the START pad. Soil on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled steel-wool pads or cleansers such as Soft Scrub.
  • Page 27 ® or other lubricant sprays. ge.com Touch the START pad. The door locks automatically. The display will show the start time. It will not be possible to open the oven door...
  • Page 28: Care And Cleaning

    Care and cleaning of the range. Be sure all controls are off and all surfaces are cool before cleaning any part of the range. If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is re-engaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.
  • Page 29: Lift-Off Oven Door

    Lift door up and out until the hinge arm is clear of the slot. Firmly grasp both sides of the door at the top. ge.com To clean the outside of the door: Use soap and water to thoroughly clean the top, sides and front of the oven door.
  • Page 30 Care and cleaning of the range. Removable Warming Drawer Pan NOTE: For models with a warming drawer, before performing any adjustments, cleaning or service, disconnect the range electrical power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.
  • Page 31: Light

    Oven Light Replacement CAUTION: Before replacing your oven light bulb, disconnect the electrical power to the range at the main fuse or circuit breaker panel. Be sure to let the light cover and bulb cool completely. To remove the cover: Wire cover holder.
  • Page 32: Shelves

    Painted Surfaces Painted surfaces include the sides of the range and the door, top of control panel and the drawer front. Clean these with soap and water or a vinegar and water solution.
  • Page 33: Cleaning The Glass Cooktop

    Ceramic Cooktop Cleaner on the entire burned residue area. Use the CERAMA BRYTE ® Cleaning Pad to remove any remaining residue. ge.com Shake the cleaning cream well. Apply a few drops of CERAMA ® BRYTE Ceramic Cooktop Cleaner directly to the cooktop.
  • Page 34: Surfaces

    To order CERAMA BRYTE Cooktop Cleaner and the cooktop scraper, please call our toll-free number: National Parts Center ge.com CERAMA BRYTE Cooktop Cleaner ...# WX10X300 CERAMA BRYTE Cooktop Scraper ...# WX10X0302 Kit .
  • Page 35: Troubleshooting Tips

    Switch operating light is broken. Oven will not work Plug on range is not completely • Make sure electrical plug is plugged into a live, properly inserted in the electrical outlet. A fuse in your home may be blown or the circuit breaker tripped.
  • Page 36: Before You Call For Service

    Clock and timer do Plug on range is not completely • Make sure electrical plug is plugged into a live, properly not work inserted in the electrical outlet. A fuse in your home may be blown or the circuit breaker tripped.
  • Page 37 • Touch the CLEAR/OFF pad. Allow the oven to cool. operation. • Disconnect all power to the range for at least 30 seconds and then reconnect power. If the function error code repeats, call for service.
  • Page 38: Troubleshooting Tips

    Do not spray with Pam lubricant sprays. • Fully extend the drawer and push it all the way in. See the Care and cleaning of the range section. • Reduce weight. Redistribute drawer contents. • Replace the fuse or reset the circuit breaker.
  • Page 39 You can rest easy, knowing that all your valuable household products are protected against expensive repairs. Place your confidence in GE and call us in the U.S. toll-free at for more information. *All brands covered, up to 20 years old, in the continental U.S.
  • Page 40: Model Number

    Check here if you do not want to receive communications from GEA’s carefully selected partners. FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS. For more information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy Policy” or call 800.626.2224. Read your Owner’s Manual carefully.
  • Page 41 Notes.
  • Page 42: Accessories

    Accessories. Looking For Something More? You can find these accessories and many more at ge.com, or call 800.626.2002 (during normal business hours). Have your model number ready. Surface Elements & Drip Pans Oven Elements Cleaner Tired of discolored racks? Wishing you had extra-heavy-duty oven racks? GE’s innovative, self-cleanable porcelain-coated oven racks!
  • Page 43 This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service.
  • Page 44: Consumer Support

    Caution must be exercised, since improper servicing may cause unsafe operation. Contact Us If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations Register Your Appliance Register your new appliance on-line—at your convenience! Timely product registration will allow for...
