Summary of Contents for Alpha FlowSmart

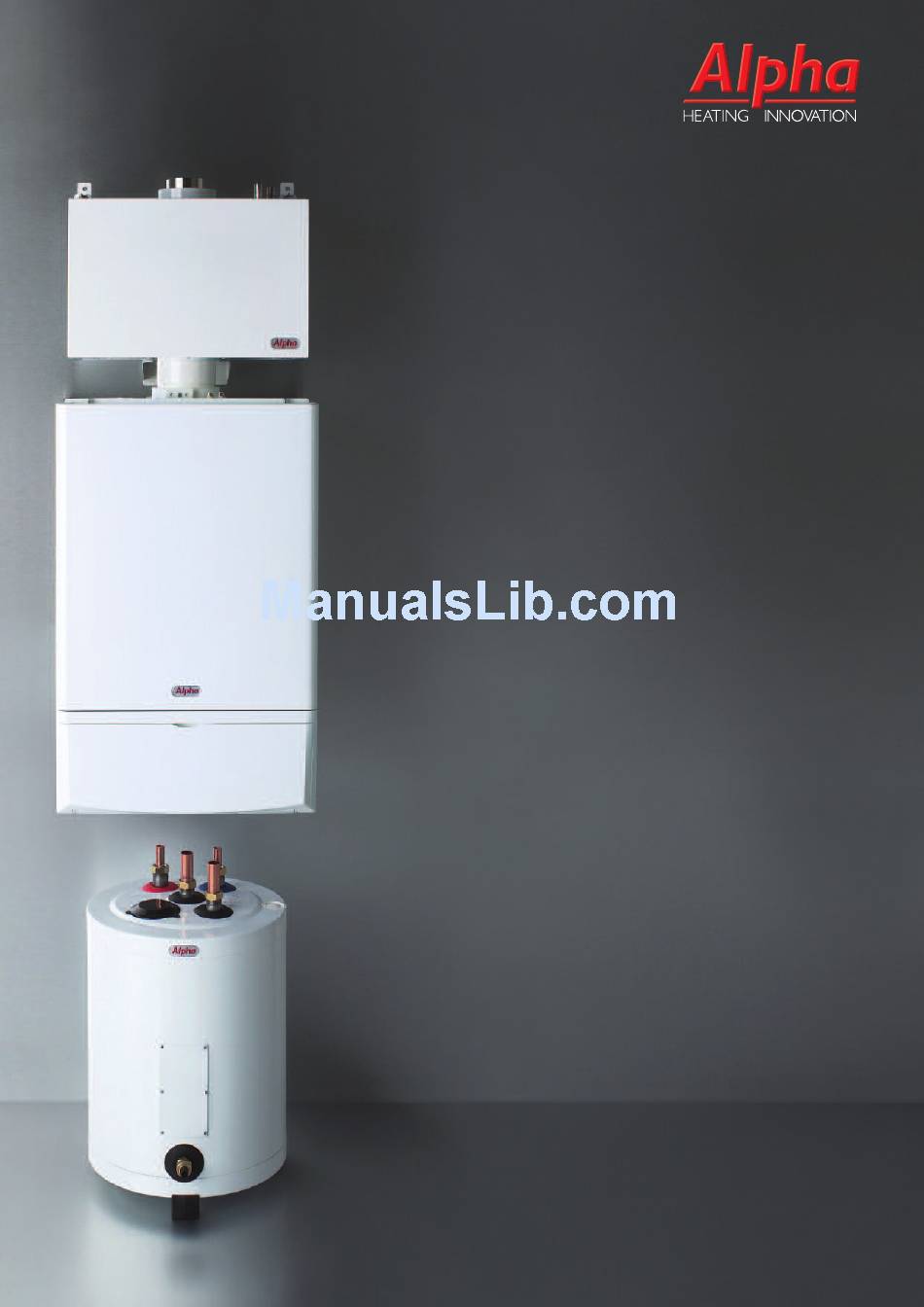

- Page 1 18 litres/minute from a combi? FlowSmart. A step-by-step installation guide.
- Page 2 The perfect combination LESS GAS USED* FlowSmart uses up to 25% less gas to provide DHW than a system boiler with a 200 litre unvented store and consumes less electricity. By incorporating a GasSaver and small thermal store, FlowSmart allows a combi boiler to deliver a flow rate of 18 litres of hot water per minute, at 50ºC or above, for up to 30 minutes –...
- Page 3 STEP 7 STEP 8 STEP 9 Install blending valve between mains water supply Fit expansion vessel to primary return pipe of Fit Y-Plan mid position valve to primary flow, thermal and hot outlet of thermal store.The blended outlet thermal store, using the compression T-piece store primary inlet connection and heating circuit.
- Page 4 GasSaver. How FlowSmart works When there is a demand for DHW, mains cold water flows into the GasSaver, where its temperature is raised using heat reclaimed from boiler flue gases.
