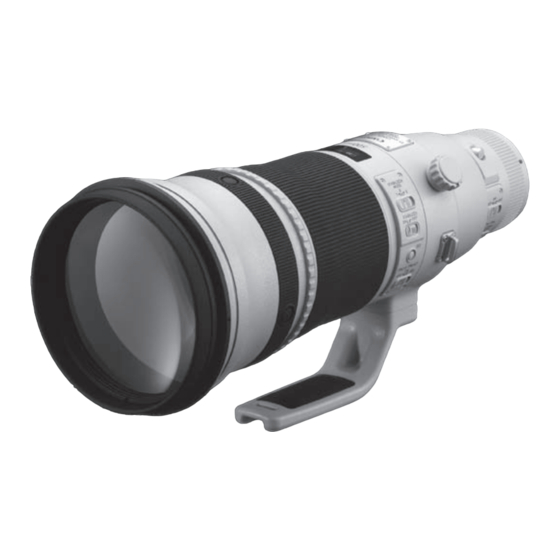

Canon EF500mm f/4L IS II USM Instructions Manual

Ef lens ultrasonic image stabilizer
Hide thumbs Also See for EF500mm f/4L IS II USM:
Table of Contents

Advertisement

Quick Links

EF500mm f/4L IS II USM
EF600mm f/4L IS II USM
ENG
Instructions

Advertisement

Table of Contents
loading

Related Manuals for Canon EF500mm f/4L IS II USM

Summary of Contents for Canon EF500mm f/4L IS II USM

  • Page 1 EF500mm f/4L IS II USM EF600mm f/4L IS II USM Instructions...
  • Page 2 Thank you for purchasing a Canon product. 8. A power focus mode enables smooth focus Canon’s EF500mm f/4L IS II USM and EF600mm change. f/4L IS II USM are high-performance super- 9. A focus preset function for advance storage telephoto lenses, for use with EOS cameras.

  • Page 3: Safety Precautions

    Safety Precautions Safety Precautions Handling Cautions If the lens is taken from a cold environment into a Do not look at the sun or a bright light source warm one, condensation may develop on the lens through the lens or camera. Doing so could result in surface and internal parts.
  • Page 4 Safety Precautions This device complies with Part 15 of the FCC Rules. This Class B digital apparatus complies with Canadian ICES- Operation is subject to the following two conditions: (1) This 003. device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    Tripod mount (→ 17) Focus mode switch (→ 6) The illustrations used in the explanations in this manual show the EF500mm f/4L IS II USM, but the EF600mm f/4L IS II USM is used in the same way. → **).

  • Page 6: Strap Mount

    If the rubber ring becomes worn, it is replaceable by a Canon Service Center at cost. Attaching the strap After detaching the lens, place the lens with the rear end up to prevent the lens surface and contacts from getting scratched.

  • Page 7: Focus Mode Switch

    FULL switch (p. 8) is at OFF. 3.7 m/12.14 ft. – 10 m/32.81 ft. EF500mm f/4L IS II USM Operating the playback ring enables focus 10 m/32.81 ft. – ∞ change at a set speed. This is a useful feature FULL for changing focus when shooting movies.

  • Page 8: Af Stop Button

    The AF stop function also works in AI Servo AF mode. Angle positioning of the AF stop button is adjustable by a Canon Service Center at cost. With the EOS 630/600, RT, A2/A2E/5, or 10S/10 set to the AI Servo AF mode and continuous...

  • Page 9: Focus Preset Button

    5. Focus Preset By presetting any focusing distance, you can instantly focus at that point even while you are shooting a different subject. This function operates in any of the AF, PF, and MF modes. < How to Set > Set the focus preset switch Press the shutter button Press the focus preset...
  • Page 10 Focus Preset < How to Focus at the Preset Distance > When turning the playback ring, keep your finger away from the shutter button. In One-Shot AF mode, the exposure will be locked when you press the shutter button halfway and focus is achieved.
  • Page 11 6. Power Focus (PF) Mode Using the playback ring enables smooth focus change. This is a useful feature for changing focus when shooting movies. With the focus preset switch set to OFF, set the focus mode Rotate the playback ring to switch to PF.
  • Page 12 7. Image Stabilizer You can use the image stabilizer in AF, PF, or MF mode. Set the STABILIZER switch Select the stabilizer mode. First press the shutter to ON. button down halfway, then MODE 1: Corrects vibrations in press down all the way to all directions.
  • Page 13 8. Tips on Using the Image Stabilizer The image stabilizer for this lens is effective for hand-held shots in the following conditions. MODE 1 MODE 2 In semi-darkened areas such as indoors or When panning subjects in motion. outdoors at night. In locations where flash photography is prohibited, such as art museums and theater MODE 3...
  • Page 14 Tips on Using the Image Stabilizer HS/RS, 3, ELAN 7E/ELAN 7/30/33, ELAN 7NE/ The Image Stabilizer cannot compensate for a ELAN 7N/30V/33V, ELAN II/ELAN IIE/50/50E, blurred shot caused by a subject that moved. REBEL X/REBEL XS/500, REBEL G/500N, REBEL Set the STABILIZER switch to OFF when you 2000/300, REBEL Ti/300V, REBEL T2/300X, REBEL are taking pictures using the Bulb setting (long K2/3000V, IX, IX Lite/IX7, 3000/88, 5000/888...

  • Page 15: Hood Mount

    9. Infinity Compensation 10. Hood Mark Infinity compensation mark Distance index The special hoods that come with all these lenses cut out unwanted light and protect the To compensate for shifting of the infinity focus front of the lens from rain, snow, and dust. point that results from changes in temperature.
  • Page 16 11. Fitting the Lens Cap Reverse the lens hood, slip Lift the hook and loop With the lock knob at the it over the lens, and tighten fastener, and fit the cap so opening in the cap, close the lock knob to fix it in that the lock knob rides up the fastener to fix the cap in place.
  • Page 17 Hinge Strap Lever Keyhole The illustration shows the EF500mm f/4L IS II USM. Put the lens away as follows. Fold the strap and fit it into the space near the case hinges. Reverse the lens hood, slip it over the lens, Fasten the lens securely with the strap.

  • Page 18: Orientation Locking Knob

    The slot is located under the cover Replacement with the included monopod mount for the orientation locking knob. can be done at a Canon Service Center at cost. A wire-type security lock can be purchased Since the mount requires special fastening, as separately.

  • Page 19: Drop-In Filter

    15. Drop-In Filters <Using a Gelatin Filter> A 52(WII)-series drop-in gelatin filter holder with a glass filter is included with the lens. The drop- in filter holder can be used fitted with a gelatin filter (sold separately). 14mm 14mm 47mm 47mm <Installing and Removing>...
  • Page 20 II, EOS-1D, EOS-1V/HS camera, autofocusing with the center focusing point is possible. When shooting with EOS A2/A2E/5 fitted with either the EF500mm f/4L IS II USM or EF600mm f/4L IS II USM, use –0.5 step exposure compensation when using extender EF1.4× II, and use –1 step exposure when using extender EF2×...
  • Page 21 You can attach extension tube EF12 II or EF25 II for magnified shots. The shooting distance and magnification are shown below. EF500mm f/4L IS II USM Focusing Distance Range (mm) Magnification (×) Close distance Long distance Close distance Long distance...

  • Page 22: Specifications

    The size and weight listed are for the lens only, except as indicated. The Close-up Lenses 250D and 500D cannot be attached. Aperture settings are specified on the camera. All data listed is measured according to Canon standards. Product specifications and appearance are subject to change without notice. ENG-21...
  • Page 23 CT1-8576-002 1208SZ © CANON INC. 2012...
