GE Profile JGBS80SEM Dimensions And Installation Information

46-1/8
JGBS80SEM
GE 30" Free-Standing Standard Clean Gas Range
®

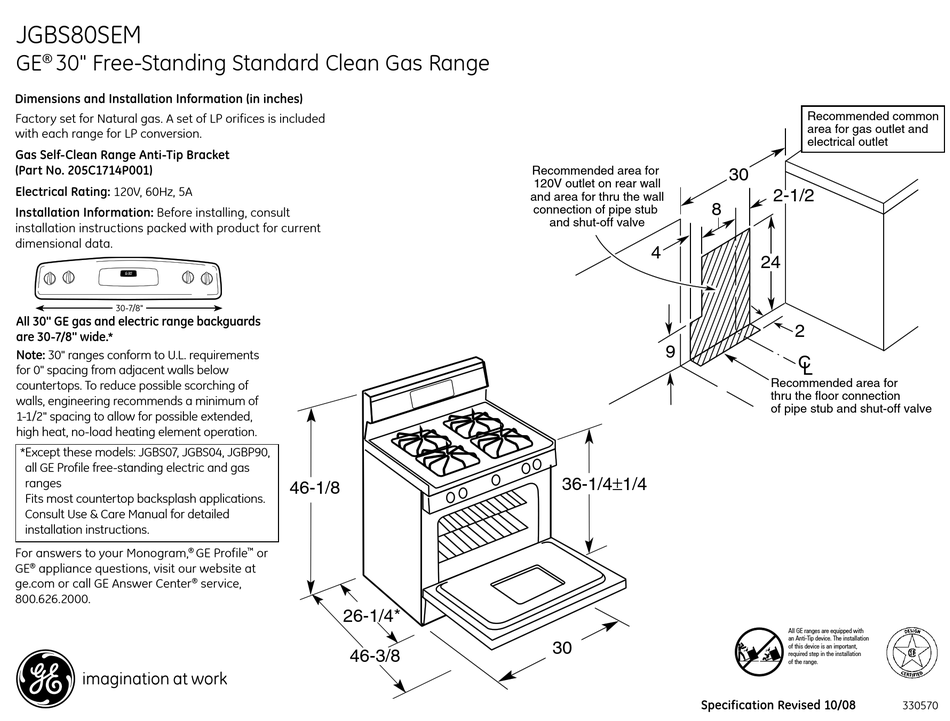

Dimensions and Installation Information (in inches)
Factory set for Natural gas. A set of LP orifices is included
with each range for LP conversion.
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult
installation instructions packed with product for current
dimensional data.
30-7/8"
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
For answers to your Monogram,
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center ®
800.626.2000.
26-1/4*
46-3/8
*Dimension from wall
to front of closed
door handle is 29-1/8".
Installation Information (Dimensions in inches)
46-1/8
GE Profile or
™
service,
26-1/4*
46-3/8
36-1/4±1/4
30
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36-1/4±1/4
30
*Dimension from wall
to front of closed
door handle is 29-1/8".
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
4
24
2
9
C L
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Recommended area for
120V outlet on rear wall
Specification Revised 10/08
and area for thru the wall
connection of pipe stub
and shut-off valve
R
a
e
30
330570
