GE JKP75BMBB Dimensions And Installation Information

JKP75BM/WM
GE 27" Built-In Convection/Thermal Wall Oven
®
Locate
junction box
for 24"models

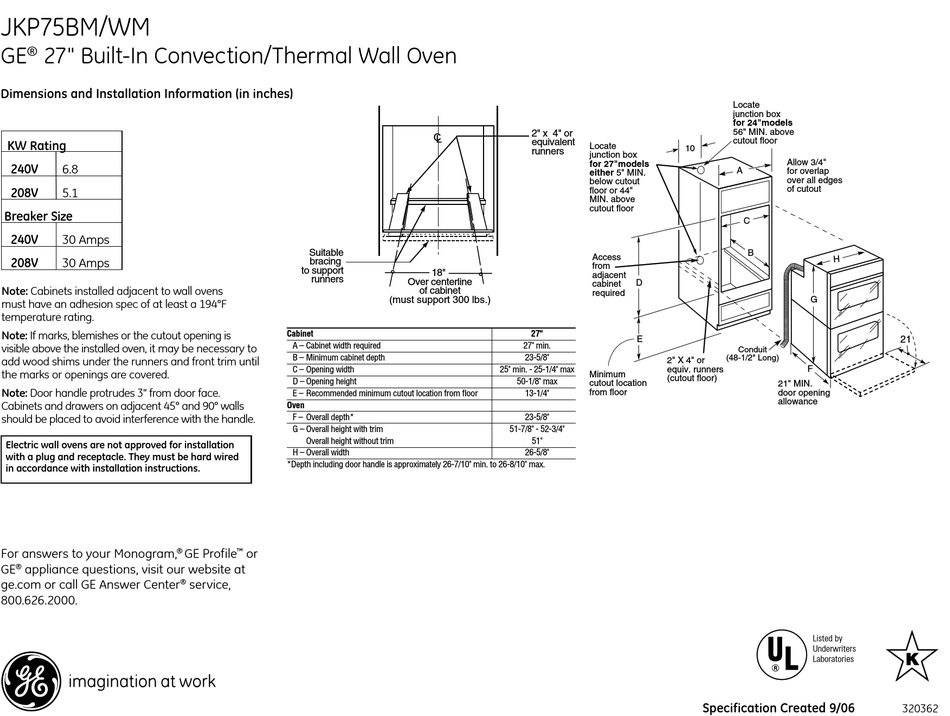

Dimensions and Installation Information (in inches)
56" MIN. above
cutout floor
Allow 3/4"
A for overlap
KW Rating
over all edges
of cutout
240V 6.8
208V
5.1
C
Breaker Size
240V
30 Amps
B
208V
30 Amps
Note: Cabinets installed adjacent to wall ovens
G
must have an adhesion spec of at least a 194°F
temperature rating.
Note: If marks, blemishes or the cutout opening is
visible above the installed oven, it may be necessary to
add wood shims under the runners and front trim until
Conduit
(48-1/2" Long)
the marks or openings are covered.
F
Note: Door handle protrudes 3" from door face.
21" MIN.
Cabinets and drawers on adjacent 45° and 90° walls
door opening
should be placed to avoid interference with the handle.
allowance
Electric wall ovens are not approved for installation
with a plug and receptacle. They must be hard wired
in accordance with installation instructions.
For answers to your Monogram, ®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
Suitable
bracing
to support
runners
Cabinet
A – Cabinet width required
21
B – Minimum cabinet depth
C – Opening width
D – Opening height
E – Recommended minimum cutout location from floor
Oven
F – Overall depth*
G – Overall height with trim
Overall height without trim
H – Overall width
*Depth including door handle is approximately 26-7/10" min. to 26-8/10" max.
GE Profile ™ or
service,
®
2" x 4" or
C L
equivalent
runners
18"
Over centerline
of cabinet
(must support 300 lbs.)
27"
27" min.
23-5/8"
25" min. - 25-1/4" max
50-1/8" max
13-1/4"
23-5/8"
51-7/8" - 52-3/4"
51"
26-5/8"
Locate
junction box
for 24"models
56" MIN. above
cutout floor
Locate
10
j unction box
for 27"models
A
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
C
B
Access
from
adjacent
D
cabinet
required
E
Conduit
(48-1/2" Long)
2" X 4" or
equiv. runners
Minimum
(cutout floor)
cutout location
from floor
Specification Created 9/06
Allow 3/4"
for overlap
over all edges
of cutout
G
Cabinet
A – Cabinet w
21
B – Minimum
C – Opening
D – Opening
F
E – Recomm
21" MIN.
Oven
door opening
F – Overall d
allowance
G – Overall h
H – Overall w
*Depth includi
Listed by
Underwriters
Laboratories
320362
Suitab
bracin
to suppo
runne
Overall h
