Assembly instruction

1
Drum

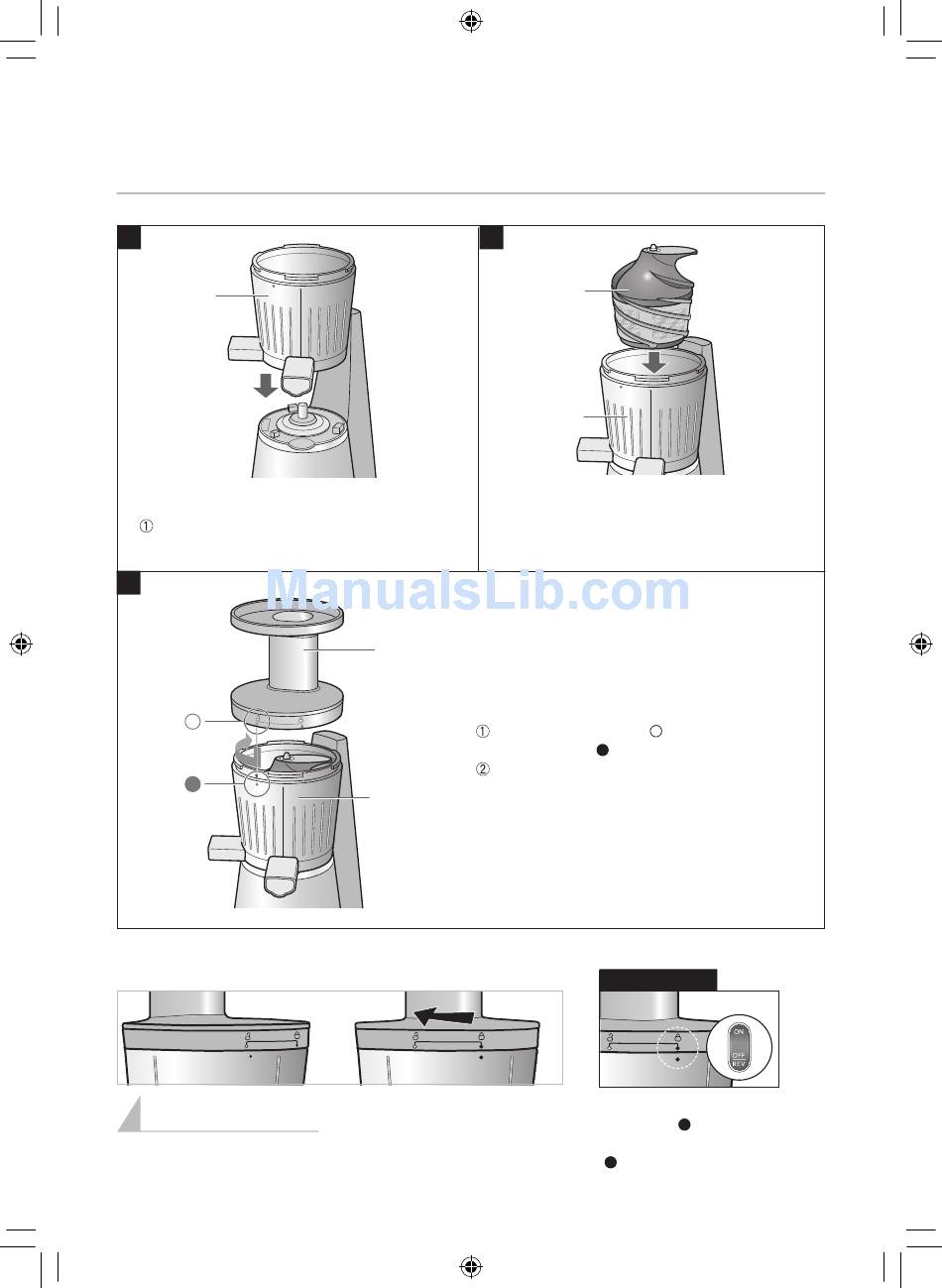

1. Assemble the drum on the Main Body.
Make sure the drum all the way into the
shaft of the main body.
3
Reverse the steps carefully
when disassembling.
6
2
Squeezing
Screw
Drum
2. Place and push the squeezing
screw into the centre of the drum.
Hopper
3. Assemble the hopper onto the Drum.
Make sure 'open dot' ( ) on the hopper
points to 'dot' ( ) on the drum.
Turn the hopper clockwise until it clicks into
the drum.
Drum
IMPORTANT
For proper operation,
'close dot' ( ) on the hopper
should be aligned with 'dot'
( ) on the drum.
