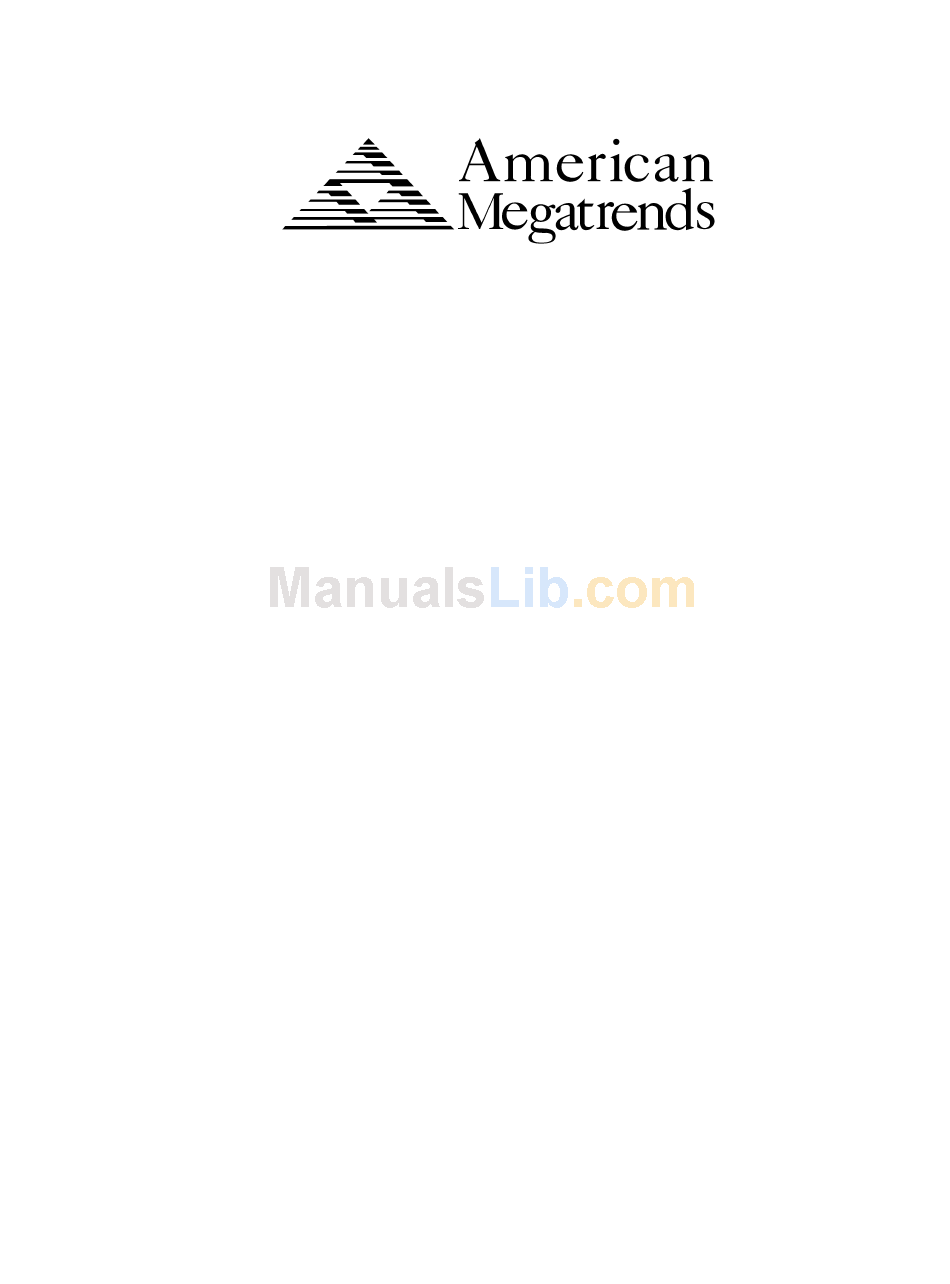

Apollo III PCI Pentium
ISA Motherboard
User's Guide
MAN-752
12/6/96

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the III and is the answer not in the manual?

Questions and answers

Mxmm7
April 12, 2025

Здравствуйте, подскажите пожалуйста, где и как на материнской плате American Megatrends в биос, находится и как отключить VMD Controller!!!

0

Related Manuals for American Megatrends III

Summary of Contents for American Megatrends III

  • Page 1 Apollo III PCI Pentium ISA Motherboard User's Guide MAN-752 12/6/96...
  • Page 2 Limited Warranty Buyer agrees if this product proves to be defective, that American Megatrends, Inc. is only obligated to replace or refund the purchase price of this product at American Megatrends’ discretion according to the terms and conditions on the motherboard warranty card. American Megatrends shall not be liable in tort or contract for any loss or damage, direct, incidental or consequential.
  • Page 3 To the OEM Thank you for purchasing the high performance American Megatrends Apollo III PCI Pentium ISA motherboard. This product is a state of the art motherboard that includes the famous AMIBIOS. It is assumed that you have also licensed the rights to use the American Megatrends documentation for...

  • Page 4: Packing List

    American Megatrends Apollo III Pentium ISA Motherboard User's Guide. Static Electricity The Apollo III motherboard can easily be damaged by static electricity. Make sure you take appropriate precautions against static electric discharge: wear a properly-grounded wristband while handling the Apollo III...

  • Page 5: Hardware Installation

    You can install an Intel P54C series, P54CT, or P55C CPU. Chipset The Apollo III PCI Pentium ISA motherboard uses an Intel 82430HX, including CPU interface controller, advanced cache controller, integrated DRAM controller, synchronous ISA bus controller, PCI local bus interface, and integrated power management unit.
  • Page 6 BIOS Shadowing The system BIOS is always copied from ROM to RAM for faster execution. The end user can shadow 16 KB ROM segments from C0000h – DCFFFh. Motherboard Size The Apollo III Pentium PCI ISA motherboard is 10 inches by 8.625 inches.
  • Page 7 IDE drives. The IDE controller is on the PCI local bus. Floppy The Apollo III motherboard has an onboard floppy controller that supports up to two 360 KB, 720 KB, 1.2 MB, 1.44 MB, or 2.88 MB floppy drives.
  • Page 8 Mouse The Apollo III motherboard includes a 5-pin berg mouse connector. The Apollo III motherboard has two 4-pin USB connectors. USB allows future generations of USB-compliant peripheral devices to be automatically detected and configured through a single port. The AMIBIOS on the Apollo III motherboard provides complete USB system BIOS support.

  • Page 9: Pci Slots

    60 MHz 50 MHz Onboard I/O The Apollo III Pentium ISA motherboard includes: two 40-pin IDE connectors on the PCI bus that support up to four IDE drives, a 34-pin floppy drive connector, two 10-pin serial port connectors (with 16550 UARTs),...

  • Page 10: Installation Steps

    Test and configure. This motherboard contains sensitive electronic components that can be easily damaged by static electricity. Follow the instructions carefully to ensure correct installation and to avoid static Apollo III PCI Pentium ISA Motherboard User’s Guide Action Warning damage.
  • Page 11 Apollo III Motherboard Layout FREQ1 FREQ2 The connectors in this Block A Square Pad Header are detailed below. in Jumpers and Connectors. Speaker Turbo Lock Chapter 1 Hardware Installation PS/2 Mouse Keyboard RPW_CON Power Supply Floppy CLK1 CLK2 Bank0 Tag RAM...

  • Page 12: Step 1 Unpack The Motherboard

    Inspect the motherboard for damage. Press down on all ICs mounted in sockets to verify proper seating. Do not apply power to the motherboard if it has been damaged. If the motherboard is undamaged, it is ready to be installed. Apollo III PCI Pentium ISA Motherboard User’s Guide Action...

  • Page 13: Set Jumpers

    Set Jumpers Set all jumpers and install the CPU before placing the motherboard in the chassis. Set jumpers by placing a shunt (shorting bridge) on the designated pins of the jumper. A shunt and jumpers are shown below: 3-dimensional view of motherboard jumpers and a shunt. Shunt 3-pin Berg In this manual, jumpers are shown in two -dimensions,...

  • Page 14: Step 2 Configure Cpu

    66 MHz 200 MHz Short Pins Please contact American Megatrends technical support at 770-246-8645 if you need to support a CPU running at a higher speed. Apollo III PCI Pentium ISA Motherboard User’s Guide Important CLK1 CLK2 FREQ1 Short Pins...
  • Page 15 Step 2 Configure CPU, Continued JVR Set CPU Voltage Install Intel Pentium CPUs that adhere to either the standard or VRE voltage specifications. VR1 and VR2 are 6-pin bergs that set CPU voltage. VR1 is near the top of the CPU socket. VR2 is next to the CPU, near the edge of the motherboard.
  • Page 16 Make sure you wear an antistatic wristband while Step Lift the lever on the ZIF socket. The empty CPU socket looks like this. Apollo III PCI Pentium ISA Motherboard User’s Guide Important Warning installing the CPU. Action...
  • Page 17 Step Check for bent pins on the CPU. Gently straighten any bent pins with pliers. Place the CPU in the middle of the socket, as shown below. Make sure that pin 1 of the CPU is aligned with pin 1 of the socket. Make sure you are properly grounded while handling the CPU.

  • Page 18: Step 3 Install Memory

    Manufacturer 4 MB x 36 Micron “ Mitsubishi “ Motorola “ “ Samsung 8 MB x 36 Motorola “ “ Samsung Apollo III PCI Pentium ISA Motherboard User’s Guide Part Number MT12D436M-6 MH4M36SAJ-6 MCM36400S-60 P364000-60 KMM5364100-6 MCM36800S-60 P368000-60 KMM5368100-6 Cont’d...
  • Page 19 Step 3 Install Memory, Continued DRAM Configurations Valid memory configurations include: Total RAM Bank0 8 MB 4 MB 16 MB 8 MB 24 MB 8 MB 32 MB 8 MB 40 MB 16 MB 48 MB 16 MB 64 MB 16 MB 64 MB 32 MB...
  • Page 20 SIMM facing you, firmly push the SIMM into the socket at an angle, then push it up. When properly inserted, the SIMM clicks into place as the latching pins engage. The SIMM installation process is shown below: Apollo III PCI Pentium ISA Motherboard User’s Guide Cont’d...
  • Page 21 Step 3 Install Memory, Continued Configure Cache Memory The motherboard supports 256 KB or 512 KB of L2 3V Pipeline Burst SRAM secondary cache memory. Either 256 KB or 512 KB of Pipeline Burst Mode Static RAM L2 secondary cache memory is mounted on the motherboard.

  • Page 22: Step 4 Install The Motherboard

    If using metallic screws, make sure the head of the screw fits completely inside the plated See the graphic on the following screen. Apollo III PCI Pentium ISA Motherboard User’s Guide Action Warning mounting holes.
  • Page 23 Step 4 Install Motherboard, Continued Chapter 1 Hardware Installation...

  • Page 24: Step 5 Attach Cables

    Step 5 Attach Cables Connectors The Apollo III motherboard includes many connectors. Connection instructions, illustrations of connectors, and pinouts are listed below. A list of all connectors described in this section follows: CPS Clear password Power supply connector Keyboard connector...
  • Page 25 Step 5 Attach Cables, Continued Cable Connector Ends When connecting chassis connectors to the motherboard, make sure to connect the correct connector end. Most connector wires are color-coded. Match the color of the wires leaving the switch or LED to the same pin on the connector end.
  • Page 26 Power Cables Attach the power supply cables to the power connector on the motherboard. AT-compatible power supplies have one twelve pin connector, as shown below. Pin 1 Pin 12 Apollo III PCI Pentium ISA Motherboard User’s Guide Cont’d...

  • Page 27: Power Connector Pinout

    Step 5 Attach Cables, Continued Connector Keys The keys on the connector must be cut to fit on some power supplies, as shown below. Power Connector Pinout Power Good (Orange wire) (Not used) VCC (Red wire) +12 Volts (Yellow wire) -12 Volts (Blue wire) Ground (Black wire) Ground (Black wire)
  • Page 28 Step 5 Attach Cables, Continued Mouse Cable Attach the mouse connector cable supplied by American Megatrends to the five-pin mouse berg connector on the motherboard (labeled MS_COM), as shown below. Attach the standard 9-pin mouse connector at the other end of the mouse cable to the mouse connector port on the computer case.
  • Page 29 Step 5 Attach Cables, Continued When connecting chassis connectors to the motherboard, make sure to connect the correct connector end. Most connector wires are color-coded. Match the color of the wires leaving the switch or LED to the same pin on the connector end.
  • Page 30 Connect a 2-wire power cable to RPW_COM and attach the other end to the peripheral device. USB Connectors The Apollo III motherboard has two 4-pin headers (USB1 and USB2) that attach to a USB connector on the computer chassis. The USB port allows you to attach to a USB hub.
  • Page 31 Step 5 Attach Cables, Continued Block Connector The Apollo III motherboard has a 22-pin header that is used to connect the following offboard connectors. The header is on the corner of the motherboard near the CPU socket. Pins 12 13 14 15...
  • Page 32 Conflicts AMIBIOS minimizes conflicts between onboard and offboard I/O devices. AMIBIOS automatically checks the adapter cards installed in the expansion slots on the Apollo III motherboard for a hard disk or floppy controller and serial or parallel ports. Serial Ports COM1 and COM2 are 10-pin connectors that provide an AT-compatible serial port interface.
  • Page 33 Step 6 Onboard I/O, Continued Parallel Port LPT is a 26-pin connector for a parallel port. The LPT pinout is shown below. Connect the 26-pin to DB25 cable provided with the motherboard to LPT. All parallel port settings can be configured through Peripheral Setup in WINBIOS Setup.

  • Page 34: Step 7 Attach Floppy Drive

    34-pin edge connectors for attaching the floppy disk drives. There is a small twist in the cable between the floppy connectors. The last (end) connector should be connected to floppy drive A:. Apollo III PCI Pentium ISA Motherboard User’s Guide Cont’d...
  • Page 35 Step 7 Attach Floppy Drive, Floppy Connector Pinout Twist in Floppy Cable Floppy B to A Floppy B to A 10 to 16 11 to 15 Chapter 1 Hardware Installation Continued DENSE1 DRATE0 -INDEX -MOTOR0 -FDSEL1 -FDSEL0 -MOTOR1 -WDATA -WGATE -TRK0 -WRPROT -RDATA...

  • Page 36: Step 8 Attach Ide Drive

    Step 8 Attach IDE Drive IDE Drives Attach the IDE drives in the following manner. Choose Peripheral Setup in WINBIOS Setup to enable the onboard IDE controller. Apollo III PCI Pentium ISA Motherboard User’s Guide Cont’d...
  • Page 37 Step 8 Attach IDE Drive, Continued Attach IDE Cable IDE1 is the primary IDE (Integrated Drive Electronics) hard disk drive connector. Both the primary master and the primary slave IDE drives must be connected by cable to IDE1, as shown below. IDE1 is a 40-pin dual-inline berg that connects an IDE drive to the primary onboard IDE connector.
  • Page 38 IDE drives to the secondary onboard IDE controller. Attach the secondary master and slave IDE drives to IDE2 via a standard 40- pin IDE cable. Apollo III PCI Pentium ISA Motherboard User’s Guide DATA8 DATA9 DATA10...
  • Page 39 Step 8 Attach IDE Drive, Continued IDE2 Pinout The IDE2 pinout is: IDERDY Chapter 1 Hardware Installation -RESET DATA7 DATA8 DATA6 DATA9 DATA5 DATA10 DATA4 DATA11 DATA3 DATA12 DATA2 DATA13 DATA1 DATA14 DATA0 DATA15 KEY (N/C) -IOW -IOR INT15 -IOCS16 -CS2 -CS3...

  • Page 40: Step 9 Test And Configure

    Configure the System Run WINBIOS Setup. You must enter the requested information and save the configuration data in CMOS RAM. The system will then reset, run POST, and boot the operating system. See the following chapter for information about configuring the computer. Apollo III PCI Pentium ISA Motherboard User’s Guide...

  • Page 41: Winbios Setup

    Historically, BIOS Setup utilities have been character-based, required keyboard input, and have had user interfaces that were not very intuitive. Graphical Interface American Megatrends has a new type of system BIOS Setup utility. WINBIOS Setup has a graphical user interface the end user can access using a mouse.

  • Page 42: Using A Mouse With Winbios Setup

    <PgUp> <PgDn> <Home> <End> <Ctrl><Alt><+> <Ctrl><Alt><-> Apollo III PCI Pentium ISA Motherboard User’s Guide Action Change or select a global field. Change or select the current field. Perform an operation in the current field. Increment a value. Decrement a value.

  • Page 43: Winbios Setup Menu

    WINBIOS Setup Menu The WINBIOS Setup main menu is organized into four sections. Each of these sections corresponds to a section in this chapter. Each section contains several icons. Clicking on each icon activates a specific AMIBIOS function. The WINBIOS Setup main windows and related functions are described below.

  • Page 44: Section 1 Setup

    Floppy Drive A: and B: Move the cursor to these fields via type. The settings are 360 KB 5¼ inch, 1.2 MB 5¼ inch, 720 KB 3½ inch, 1.44 MB 3½ inch, or 2.88 MB 3½ inch. Apollo III PCI Pentium ISA Motherboard User’s Guide and select the floppy...
  • Page 45 Standard Setup, Continued Primary Master, Primary Slave, Secondary Master, Secondary Slave Select one of these hard disk drive icons to configure the hard disk drive named in the option. Select Auto from the drive parameters screen to let AMIBIOS automatically configure the drive.
  • Page 46 IDE drives have even more sectors per track. Capacity The formatted capacity of the drive is the number of heads times the number of cylinders times the number of sectors per track times 512 (bytes per sector). Apollo III PCI Pentium ISA Motherboard User’s Guide Description Cont’d...

  • Page 47: Hard Disk Drive Types

    Standard Setup, Continued Hard Disk Drive Types Type Cylinders Heads 1024 1024 1024 1024 1024 1024 1224 AMIBIOS automatically sets IDE drive parameters. Select USER to enter MFM, ESDI, or RLL drive parameters. Select Not Installed for SCSI drives. Select CDROM for CD-ROM drives. Chapter 2 WINBIOS Setup Write Landing...

  • Page 48: Advanced Setup

    Pause on Config. Screen This option specifies the length of time that the AMIBIOS configuration screen appears. The settings are 2 (seconds), 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, or Disabled. The Optimal and Fail-Safe default settings are Disabled. Apollo III PCI Pentium ISA Motherboard User’s Guide Cont’d...
  • Page 49 Advanced Setup, Continued Boot Up Num Lock Set this option to On to turn the Num Lock key On at system boot. The settings are On or Off. The Optimal and Fail-Safe default settings are On. Password CheckThis option enables the password check option every time the system boots or the end user runs Setup.
  • Page 50 The video ROM is not copied to RAM. The contents of the Disabled video ROM cannot be read from or written to cache memory. The Optimal default setting is Cached. The Fail-Safe default setting is Disabled. Apollo III PCI Pentium ISA Motherboard User’s Guide Description Description Cont’d...
  • Page 51 Advanced Setup, Continued Shadow C800,16K Shadow CC00,16K Shadow D000,16K Shadow D400,16K Shadow D800,16K Shadow DC00,16K These options enable shadowing of the contents of the ROM area in the option title. Setting Description The contents of the ROM area are written to the corresponding Shadow address in RAM for faster execution.

  • Page 52: Chipset Setup

    USB Keyboard/Mouse Legacy Support Set this option to Enabled to enable USB support for legacy keyboards and mice. The settings are Enabled or Disabled. The Optimal and Fail-Safe default settings are Enabled. Apollo III PCI Pentium ISA Motherboard User’s Guide Description...

  • Page 53: Power Management Setup

    Power Management Setup The AMIBIOS Setup options described in this section are selected by choosing the Power Management Setup icon from the Setup section on the AMIBIOS Setup main menu. Power Management/APM Set this option to Enabled to enable the Intel Triton 2 power management features and APM (Advanced Power Management).
  • Page 54 Standby state. When this length of time expires, the computer enters Suspend power state. The settings are Disabled and 1 Min. through 15 Min in 1 minute intervals. The Optimal and Fail-Safe default settings are Disabled. Apollo III PCI Pentium ISA Motherboard User’s Guide Continued Cont’d...
  • Page 55 Power Management Setup, Slow Clock Ratio This option specifies the speed at which the system clock runs in power saving states. The settings are expressed as a ratio between the normal CPU clock speed and the CPU clock speed when the computer is in the power- conserving state.
  • Page 56 Ignore, or Monitor. The defaults are: Option IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ11 IRQ12 IRQ13 IRQ14 IRQ15 Apollo III PCI Pentium ISA Motherboard User’s Guide Continued Optimal Fail-Safe Ignore Ignore Ignore Ignore Ignore Ignore Ignore Ignore Ignore...

  • Page 57: Pci/Pnp Setup

    PCI/PnP Setup Choose the PCI/PnP Setup icon from the WINBIOS Setup screen to display the PCI and Plug and Play Setup options, described below. Plug and Play-Aware OS Set this option to Yes if the operating system in this computer is aware of and follows the Plug and Play specification.
  • Page 58 PCI expansion slots. The settings are Auto, IRQ5, IRQ9, IRQ10, IRQ11, IRQ 14, and IRQ15, in priority order. If Auto is selected, AMIBIOS automatically determines the optimal IRQ priority order. The Optimal and Fail-Safe default settings are Auto. Apollo III PCI Pentium ISA Motherboard User’s Guide Cont’d...
  • Page 59 PCI/PnP Setup, Continued IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ11 IRQ12 IRQ14 IRQ15 These options specify the bus that the specified IRQ line is used on. These options allow you to reserve IRQs for legacy ISA adapter cards. These options determine if AMIBIOS should remove an IRQ from the pool of available IRQs passed to devices that are configurable by the system BIOS.
  • Page 60 The specified ROM memory area is reserved for use by legacy ISA adapter cards. The settings are C0000, C4000, C8000, CC000, D0000, D4000, D8000, or DC000. The Optimal and Fail-Safe default settings are C4000. Apollo III PCI Pentium ISA Motherboard User’s Guide...

  • Page 61: Peripheral Setup

    Peripheral Setup Choose the Peripheral Setup icon from the WINBIOS Setup screen to display the Peripheral Setup options, described below. Onboard Floppy Controller Set this option to Enabled to enable the floppy drive controller on the motherboard. The settings are Auto (AMIBIOS automatically determines if the floppy controller should be enabled), Enabled, or Disabled.
  • Page 62 Fail-Safe default settings are Disabled. Serial Port1 IRQ This option specifies the IRQ used for serial port1. The settings are IRQ4 or Disabled. The Optimal default setting is IRQ4. The Fail-Safe default setting is Disabled. Apollo III PCI Pentium ISA Motherboard User’s Guide Cont’d...
  • Page 63 Peripheral Setup, Continued Serial Port1 Address This option specifies the base I/O port address of serial port 1. The settings are Auto (AMIBIOS automatically determines the correct base I/O port address), Disabled, 3F8h, or 3E8h. The Optimal default setting is 3F8h. The Fail-Safe default setting is Disabled.
  • Page 64 Mode option is ECP. This option sets the DMA channel used by the parallel port. The settings are (DMA Channel) 0, 1 or 3. The Optimal and Fail-Safe default settings are 3. Apollo III PCI Pentium ISA Motherboard User’s Guide Description...

  • Page 65: Section 2 Security

    Section 2 Security Three icons appear in this part of the WINBIOS Setup screen: Supervisor (Password), User (Password), and Anti-Virus. Two Levels of Passwords Both the Supervisor and the User icons configure password support. If you use both, the Supervisor password must be set first. The system can be configured so that all users must enter a password every time the system boots or when WINBIOS Setup is executed, using either or both the Supervisor password or User password.

  • Page 66: Setting A Password

    Make sure you write it down. If you forget it, you must drain NVRAM and reconfigure. If You Do Not Want to Use a Password appears. Apollo III PCI Pentium ISA Motherboard User’s Guide Just press <Enter> when the password prompt...

  • Page 67: Changing A Password

    Changing a Password Select the Supervisor or User icon from the Security section of the WINBIOS Setup main menu. Enter the password and press <Enter>. The screen does not display the characters entered. After the new password is entered, retype the new password as prompted and press <Enter>.

  • Page 68: Section 3 Utility

    Fail-Safe icon from the Default section of the WINBIOS Setup main menu. The Fail-Safe settings provide far from optimal system performance, but are the most stable settings. Use this option as a diagnostic aid if the system is behaving erratically. Apollo III PCI Pentium ISA Motherboard User’s Guide...

  • Page 69: Programming The Flash Rom

    Programming the Flash ROM All versions of the Apollo III motherboard use Flash EPROM to store the system BIOS. The advantage of Flash EPROM is the EPROM chip does not have to be replaced to update the BIOS. The end user can actually reprogram the BIOS, using a ROM file supplied by American Megatrends.
  • Page 70 S752P.ROM S752P.ROM resides on a floppy disk and contains the updated main BIOS code. American Megatrends will provide this file when the AMIBIOS for the Apollo III ISA motherboard must be updated. S752P.ROM must be present in the root directory of the floppy disk before the onboard Flash EPROM can be reprogrammed.
  • Page 71 Programming the Flash ROM, Beep Codes The bootblock code produces a series of beeps during Flash ROM programming to: signify completion of a step (as shown on the previous screen), or to signal an error. Error beeps are arranged in a coded sequence and have different meanings depending on when they occur.

  • Page 72: Bootblock Code Checkpoint Codes

    Chipset Intel 82430HX, including CPU interface controller, advanced cache controller, integrated DRAM controller, synchronous ISA bus controller, PCI local bus interface, and integrated power management unit. Apollo III PCI Pentium ISA Motherboard User’s Guide Description Description...
  • Page 73 Item Expansion slots Three ISA expansion slots Four PCI expansion slots L1 internal cache The Intel Pentium has 8 KB data cache and 8 KB memory instruction cache. L2 secondary 256 KB or 512 KB of synchronous PBSRAM, direct- cache memory mapped, write-back.
  • Page 74 Green PC LED, power management signal to Green PC-aware power supplies, automatic IDE and video power down, monitor blanking, SMI (System Management Interrupt) support, APM, and system stop clock. Speaker Standard four-pin speaker connection. Apollo III PCI Pentium ISA Motherboard User’s Guide...
